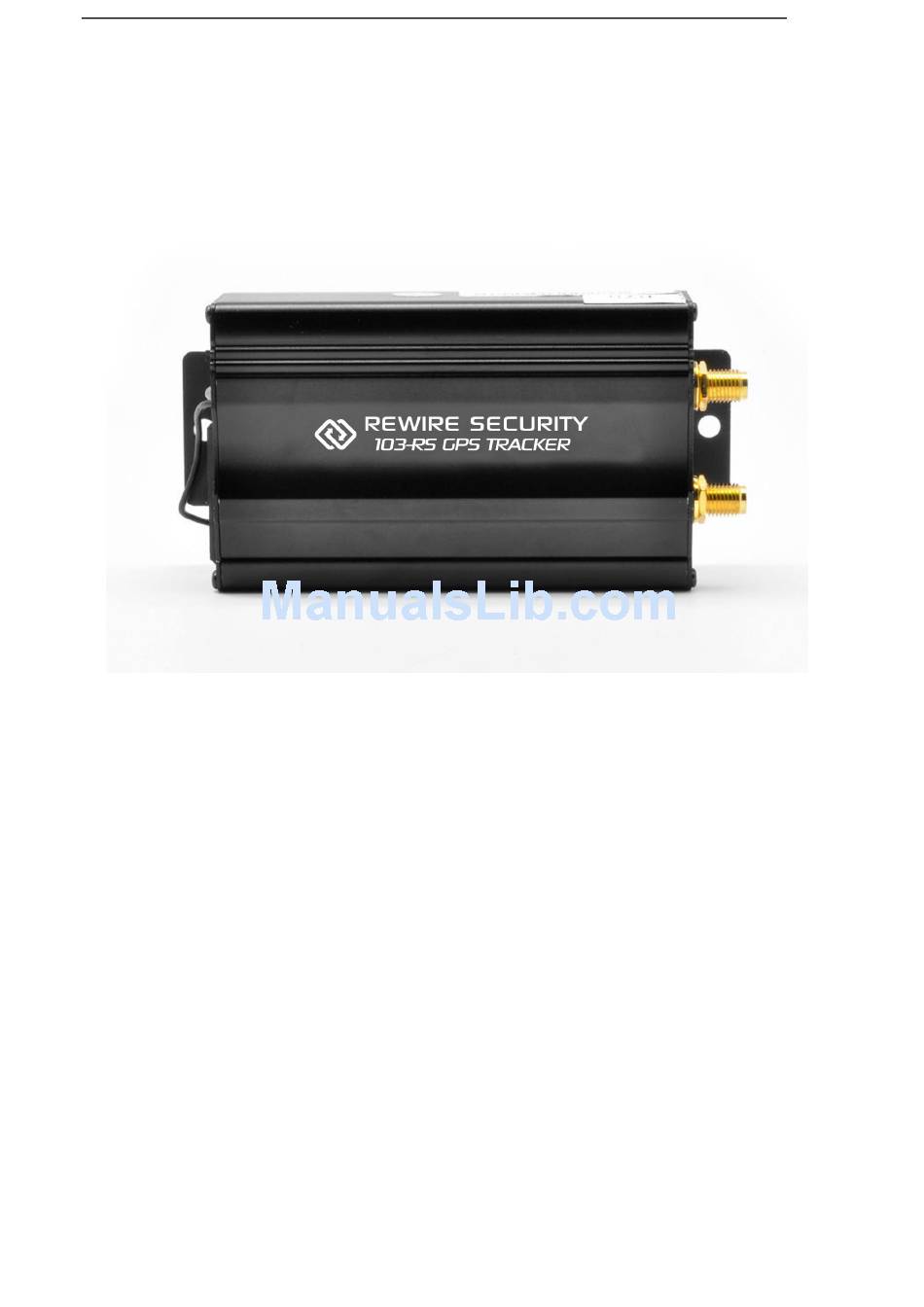

1
REWIRE SECURITY

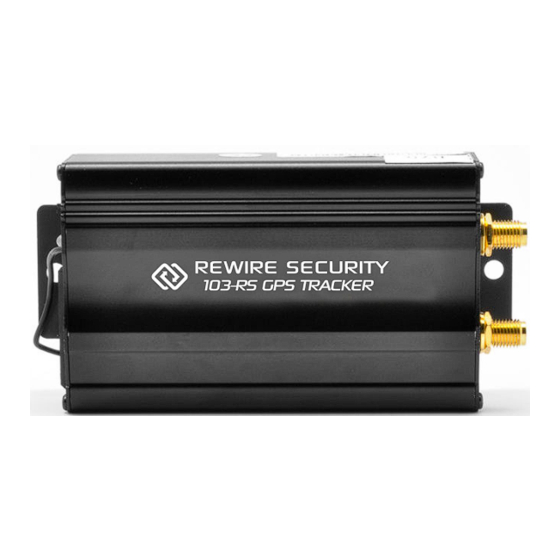

103-RS / 103-RS+ GPS TRACKER
DETAILED USER GUIDE
VER. 3.0
Thank you for purchasing 103-RS. Please read this manual carefully before
using this product. Please note that product specifications and information in
this user guide are subject to changes without prior notice. Any changes will be
integrated in the latest release. The manufacturer assumes no responsibility for
any errors or omissions in this document.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 103-RS and is the answer not in the manual?

Questions and answers

Related Manuals for REWIRE SECURITY 103-RS

Summary of Contents for REWIRE SECURITY 103-RS

  • Page 1 DETAILED USER GUIDE VER. 3.0 Thank you for purchasing 103-RS. Please read this manual carefully before using this product. Please note that product specifications and information in this user guide are subject to changes without prior notice. Any changes will be integrated in the latest release.

  • Page 2: Table Of Contents

    6. Operating Instructions ................... 7 6.1 Installation ............................ 7 6.2 SIM CARD Installation ......................10 6.3 Turn on the 103-RS........................10 6.4 GSM/GPS LED Indicator ......................10 6.5 Startup ............................11 6.6 Changing your tracker's password ....................11 6.7 Authorization ..........................12 6.8 Simple SMS Text Message Locating ..................
  • Page 3 6.19.7 Over speed alarm ....................... 24 6.19.8 Accident alarm (For RS+ model only): ................24 6.19.9 ACC/ignition alarm ......................25 6.20 Remote immobilizing ....................... 25 6.21 Arm ............................26 6.22 Disarm ............................26 6.23 Remote Controller (For RS+ model only) ................26 6.24.

  • Page 4: Summary

    1. Introduction 1.1 103-RS can locate remote targets or vehicles by using Geographic Positioning System and send instant SMS or Internet reports to the user by using GSM and GPRS network. It is an ideal security and information solution for your vehicle as it is able to send real time alerts and position information or even immobilize your vehicle remotely in seconds.
  • Page 5 3. Hardware Description 1- GSM Antenna connector 7- Shock sensor port 2- SIM card slot 8- Harness Port 3- SIM card slot Pop-up switch 9- GSM/GPS LED 4- MicroSD slot 10- Backup battery switch 5- Microphone jack 11- Remote controller antenna 6- GPS Antenna connector ( RS+ model only)

  • Page 6: Accessories

    4. Accessories PICTURE NAME NOTE GPS Antenna 3 meters GSM Antenna 3 meters Microphone 1.5 meters Harness 10 PIN 12V/40A (24V/40A Relay upon request) Optional for both RS Shock sensor and RS+ models RS+ MODEL ONLY Siren Remote controller RS+ MODEL ONLY...

  • Page 7: Specifications

    Operation Temp. -20°C to +65°C Humidity 5%--95% non-condensing 6. Operating Instructions 6.1 Installation 6.1.1 Please ensure the installation is performed by a qualified and experienced technician. Rewire Security does not accept liability for any damages caused due to incorrect installation.
  • Page 8 GPS & GSM antennas and leaving it in a location with uninterrupted view of the sky. Once your 103-RS is switched on and ready to use, test the functions you would like to use and finally install it to its final position.
  • Page 9 Wiring diagram 6.1.5 Note: The orange wire should be connected to the siren (optional), however, it can also be connected to your vehicle's horn . 6.1.6 Check if the type of your vehicle's door trigger is positive or negative trigger. Please connect the green wire to the door control circuit if it is positive, and connect the blue wire if it is negative.

  • Page 10: Sim Card Installation

    If you are using a contract sim card and would like to use GPRS (live) tracking, make sure your SIM card's internet is enabled. Ensure that caller id display is enabled on your phone as 103-RS will not be able to respond to messages or calls from private numbers.

  • Page 11: Startup

    Please note that you only need to change your password if you intend to share your 103-RS's phone number with third parties and do not wish to give them access to its settings. Example : password123456 99999...

  • Page 12: Authorization

    4.2 A: Dial 103-RS's phone number 10 times from your mobile phone and it will register your mobile phone number as the authorized number automatically. Please note that each time you dial it, the 103-RS will hang your call after 2 seconds and reply with a location SMS message.

  • Page 13: Simple Sms Text Message Locating

    If you notice that 103-RS is not responding with an SMS after you call it's phone number, this is very likely to be caused by an error in authorization.

  • Page 14: Interval Tracking

    If the SMS position you have received from your 103-RS starts with "last", this means it does not have a current GPS fix and the position you have received is from the last location where it had a GPS fix.

  • Page 15: Gps Drift Suppression

    Example: nofix123456 6.10 Automatic position updating with movement angle 7.1 103-RS will update the positions automatically to the web server once the vehicle changes driving direction over pre set angle value to form a smooth trajectory consistent with the actual road. This function is only effective in GPRS mode.

  • Page 16: Exact Street Address By Sms

    8.1 This function is switched "OFF" by default. Send "suppress+password" to 103-RS to activate, it will reply" suppress drift ok". The GPS data will stop updating if the vehicle is stationary. GPS data will update automatically once vehicle starts moving.

  • Page 17: Voice Surveillance

    Response: 20a Park street, clifton, bristol, bs1 5ja 6.13 Location based service (LBS) If 103-RS is unable to establish a solid GPS fix, it will calculate its location using Cell-id info. Location reports will include the GPS co-ordinates of the last known position as well as a LAC code.
  • Page 18 Do not forget to switch back to tracker mode once you have finished using the voice surveillance. When 103-RS is in monitor mode it will stop updating its position and it will shut the GPS module "OFF". To change back to tracker mode use command "tracker+password"...

  • Page 19: Data Upload

    PC software provided, through USB connection. 6.16 Data upload 16.1 Auto Upload: If there is no GSM reception, 103-RS will save all GPS data to its built-in memory and upload this information to the live tracking server automatically when the GSM reception is back to normal. This way tracking data won't get lost while driving through areas with no or low GSM reception.

  • Page 20: Sim Card Balance Check

    6.17 Forwarding received SMS messages 17.1 103-RS can forward incoming messages from pre-set phone numbers . To activate this function, send "forward+password+space+third party phone number" from an authorised phone number. 103-RS will reply "forward ok", and start forwarding SMS messages coming from that number. Only one number can be set-up for SMS forwarding.

  • Page 21: Low Battery Alarm

    3 minutes intervals. 6.19.2 Power off alarm When the external power to 103-RS is cut off or at 0V, 103-RS will send SMS “power alarm+lat./long.” to authorized numbers twice in 3 minutes intervals.

  • Page 22: Movement Alarm

    6.19.5 Multi-area management 2.1 To Set an Area for multi-management Send SMS command "area+password+space+latitude,longitude+space+areaname,distanceM" to 103-RS(distance unit: M for meter, K for kilometer). 103-RS will reply "area01ok". Example: area123456 22.353648,113.543678 school,800M Response: area ok Note: 5 areas at most and the distance between two points can't be less than the total distance in the 2 commands.
  • Page 23 2.4 Activate multi-area management Send SMS command "area+password+space+on" to 103-RS and it will reply "Area on ok!". When 103-RS enters the pre set area, it will send SMS "area location" to all authorized phone numbers, and it will send same SMS when goes out of the area.

  • Page 24: Over Speed Alarm

    4.1 Over speed alarm will be triggered when 103-RS exceeds speed limit predetermined by you. Setup: Send SMS “speed+password+space+speed” to 103-RS and it will reply “speed ok!”. This means that you have set up over speed alarm successfully. Example: speed123456 080 080 refers to 80km/h.

  • Page 25: Acc/Ignition Alarm

    6.19.9 ACC/ignition alarm 6.19.9.1 This function is switched "OFF" by default. To activate, send "ACC+password" to 103-RS, it will reply "ACC ok" and send "ACC on+latitude & longitude" to authorized numbers when the ignition of the vehicle has been switched "ON"; and it will send “ACC off+latitude &...

  • Page 26: Arm

    “Tracker is activated” and it will enter armed state if it is currently disarmed. You will only be able to "arm" your 103-RS's alarm if the ignition is "OFF" and the doors are closed. If not, you will receive the following response from 103-RS : “set up fail! please turn off ACC”...

  • Page 27: Alarms Under Arm State

    In silent mode the siren will not work even if an alarm is mode triggered. Press for 3 seconds, 103-RS will send SOS alert to authorized phone numbers. Deterrence/car Press for 0.5 second when it is in arm state, siren will beep 10 seconds, press...

  • Page 28: Silent Mode

    Quit silent mode Press in disarm state for 0.5 second again, siren will beep two times, and quit from silent mode. 6.26. GSM network blind spot alarm If 103-RS has no GSM reception, siren will still work if an alarm is...

  • Page 29: Status Enquiry

    Oil: 0.00% (fuel level, requires optional ultrasonic fuel sensor) APN: uk.lebara.mobi IP: 178.159.0.78 PORT: 10200 6.28 Hardware reset 6.28.1 SMS Reset Send SMS “reset+password” to 103-RS to reset the GSM module and GPS module, it will reply “reset ok”. Example: reset123456 Response: reset ok 6.28.2 Using reset button...

  • Page 30: Imei Number Request

    Press the reset button for 1 second, hardware of 103-RS will reset. 6.29 Imei number request Send SMS command "imei+password" to 103-RS. E.g. Send SMS command "imei123456" to 103-RS and it will reply with it's 15 digit imei number. Example: imei123456 Response: 359710055647863 6.30 Time setting...
  • Page 31 APN. However, if your network requires this setting please configure as following: Send SMS “up+password+space+user+space+password”, If succeeded, 103-RS will reply “user, password ok!”. Example: up123456 data user Note: 123456 is password of 103-RS, data is the user name for GPRS login,...

  • Page 32: Gprs Economy Mode

    GPRS login. 6.32.3Server IP and Port Setup 6.33.3.1. This setting will configure the 103-RS to upload its location to the selected live tracking server. Send SMS “adminip+password+space+IP+space+port” to 103-RS. It will reply “adminip ok” if succeeded Example: adminip123456 178.159.0.78 10200...

  • Page 33: Troubleshooting

    6.34. Modes Switch between “SMS” and “GPRS” 6.34.1 103-RS is in SMS mode by default. 6.34.2 To activate GPRS mode, send SMS “GPRS+password” to 103-RS, and it will reply “GPRS ok!” Example:...
  • Page 34 Please make sure 103-RS is wired correctly & receiving power from the 12 or 24v source First check the LED lights on 103-RS. If 103-RS is Receiving power , no dial tone means there is no GSM. 1- Check if the sim card you are using is active.
  • Page 35 1- If your 103-RS is showing up in the middle of the ocean just outside the gulf of guinea, it hasn't sent any data or position co-ordinates to the server and it is currently on default , zero coordinate position. Please check your APN, GPRS server ip / port and interval settings.
  • Page 36 1- Check if the position report starts with the word "Last". If so, this means that 103-RS hasn't established a GPS fix since and it is showing the last position it did have a solid Wrong position GPS fix. In SMS mode 2- If the co-ordinates on position report are showing 0 , this means that 103-RS hasn't established a GPS fix yet.
  • Page 37 contract will come into existence between you and Us. 1.6 If any of these Terms conflict with any term of the Order, the Order will take priority. 1.7 We shall assign an order number to the Order and inform you of it when We confirm the Order.
  • Page 38 (e) Incorrect installation by you or by a third party who is not one of Our authorized installers; and (f) Any specification provided by you. 5.3 This guarantee is in addition to your legal rights in relation to the Goods that are faulty or not as described.
  • Page 39 10. INFORMATION ABOUT US AND HOW TO CONTACT US 10.1 We are a company registered. Our company registration number is 9451681 and Our registered office is Chandos mews, 34b chandos road, Redland, Bristol, BS6 6PF. 10.2 If you have any questions or if you have any complaints, please contact Us. You can contact Our customer service team by emailing Us at info@rewiresecurity.co.uk 10.3 If you wish to contact Us in writing, or if any clause in these Terms requires you to give Us notice in writing (for example, to cancel the contract), you can send this to Us by...
