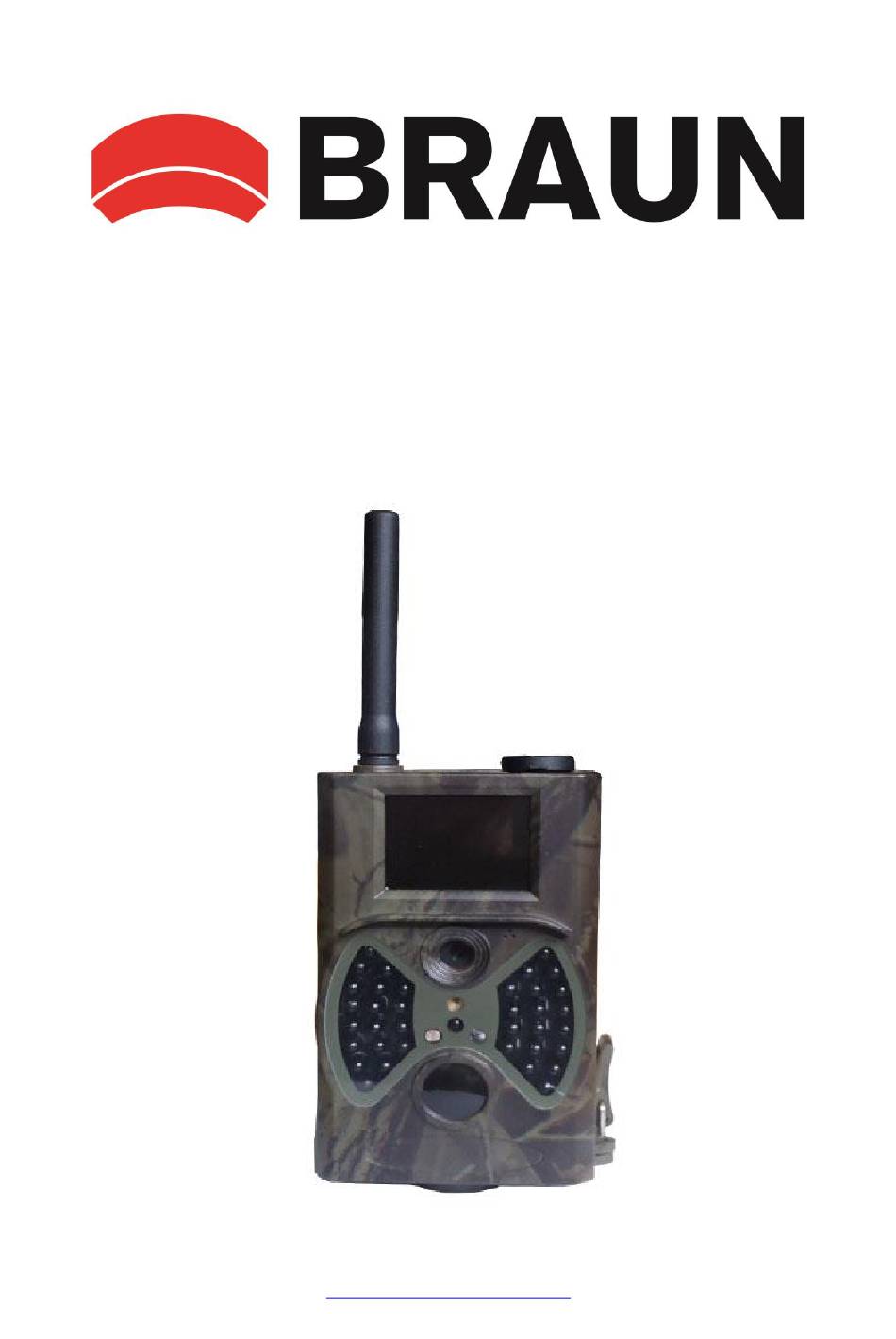

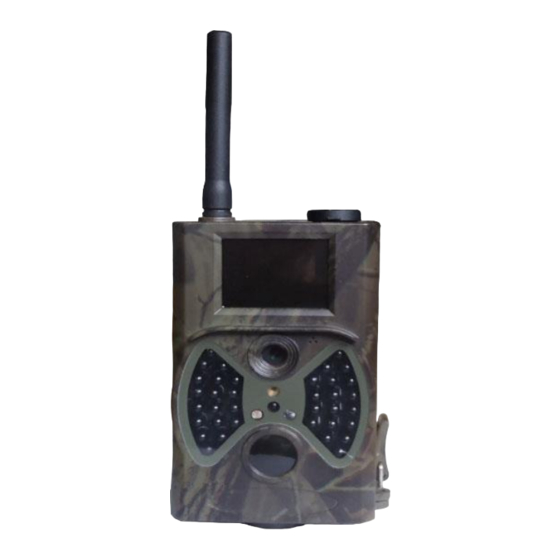

BRAUN Scouting Cam
BLACK300phone
BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany
www.braun-phototechnik.de
Fon+49 / 911 / 3206-0
Fax: +49 / 911 / 3206-129

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLACK300phone and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Braun BLACK300phone

  • Page 1 BRAUN Scouting Cam BLACK300phone BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 2: Table Of Contents

    4. MMSCONFIG Setting ..................18 5. SMS Control ......................22 6. Firmware Upgrade ....................22 7. Specifications ......................23 8. Packing List ......................24 BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 3: Introduction

    1.4 Key Features Built-in 2.0" TFT color screen to review photos and videos on camera 36 IR LEDs with range of 20 meters BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 4 MMS/SMTP function to transmit photos to 1-4 preset mobile phones or emails SMS to enable camera to capture/send photo, switch on/off, get number of captured images and battery status BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0...
  • Page 5: Camera Overview

    DC In Screen Lens Microphone Laser IR LEDs Light Sensor IR Sensor Status LED 2.2 Side View (Right) Lock Safety Lock BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 6: Rear View

    Fixed Tilt Adjuster 2.4 Bottom View USB Port TV Out Power Switch SIM Card Slot TF Card Slot Battery Compartment BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 7: Remote Control

    2. Press Right to preview photo or video recording. 3. Press Up or Down to view photos. 4. Press Left to start video preview, press again to stop video preview. BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0...
  • Page 8: Screen Information Display

    Note: To activate MMS or SMTP functions, the camera must find a signal and SIM card must be inserted. 2.7 Settings Menu The camera has five main menus: BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 9: Quick Operation

    3.2 Inserting TF and SIM Cards Note: To activate the MMS or SMTP functions, save settings file Parameter.dat under MMSCONFIG to TF card. BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 10: Powering On

    12MP, 8MP, 5MP Photo size Interval 1/5/10/30 s/min Waiting time to next capture Multi 1/3/6/9 Number of photos captured in succession BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 11: Video Menu

    2. Interval, Multi and ISO settings follow the same pattern. 3.4.2. Video Menu 1080p, 720p, WVGA, QVGA 10, 30, 60, 90 seconds OFF, ON Submenu Content Description BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 12 To change Resolution from 1080p to 720p press the following buttons on the remote control: Note: 1. Mode is Video. 2. Video Length and Voice settings follow the same pattern. BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 13: System Menu

    NTSC, PAL TV playback mode Date/Time 31-07-2014 15:49:40 Date-Month-Year Hour:Minute:Second Password ON, OFF Password protection Password **** If ON, 4 digits BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 14 Camera, Video, Camera&Video Resolution (Camera) 12M, 8M, 5M Delay 1 second 1-30 seconds, 1-30 minutes Multi Single Single, 3, 6, 9 Pictures BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 15 00:00:00 to Timer 23:59:59 Adjust Format Internal Memory Internal Memory, SD Card TV Mode NTSC NTSC, PAL Password Off, On BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 16: Mms Menu

    Setting by software Setting by software Setting by software Setting by software Setting by software Setting by software Setting by software BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 17: Smtp Menu

    Setting by software Setting by software Setting by software Setting by software Setting by software Setting by software Setting by software BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 18: Mmsconfig Setting

    In Auto MMS Mode, select:  Country  Operator  Add phone numbers for receiving photos  Add email addresses for receiving photos BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 19  Add sender email address on the left  Add sender email address password on the left  Add receiver email addresses on the right BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 20  Add sender email address on the left  Add sender email address password on the left  Add receiver email addresses on the right BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 21 6. Save Parameter.dat to TF card. BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 22: Sms Control

    7. Remove the TF card and insert in PC. Delete file FWF900.bin on TF card (otherwise the camera will enter upgrade mode when powered on again). 8. Insert the TF card in the camera. BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0...
  • Page 23: Specifications

    Belt, Tripod Operating Temperature -30 to +70°C Power Supply 8 × AA batteries Camera Socket Waterproof IP54 Certifications FCC, CE, RoHS BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
  • Page 24: Packing List

    8. Packing List Digital Camera Remote Control Antenna USB Cable AV Cable Strap BRAUN Photo Technik GmbH, Merkurstr.8, 72184 Eutingen, Germany www.braun-phototechnik.de Fon+49 / 911 / 3206-0 Fax: +49 / 911 / 3206-129...
