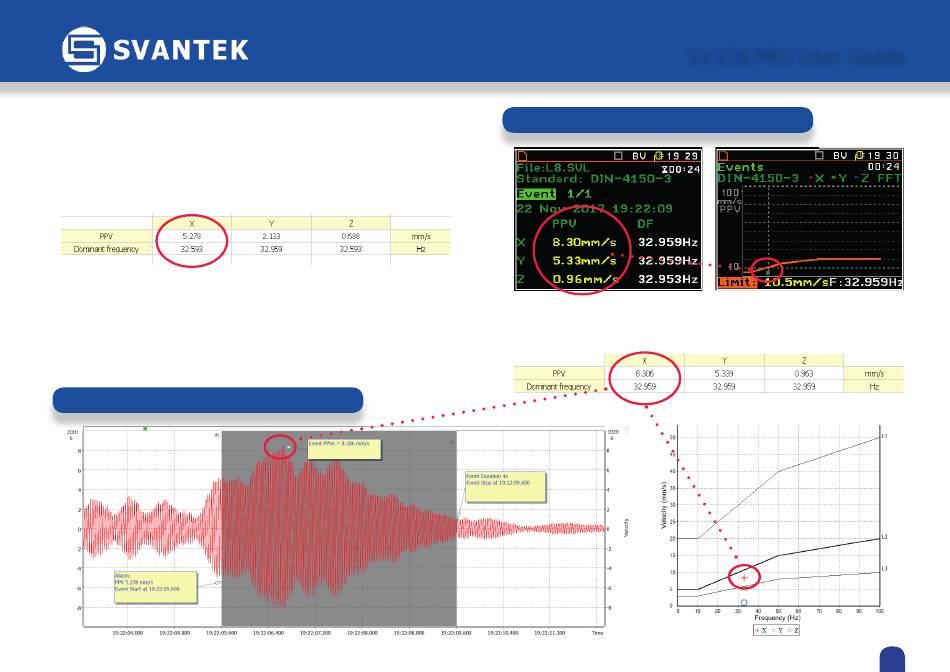

Event Trigger (Alarm)
At the given example the Event has been started by the PPV of 5.278 mm/s at
33 Hz. The PPV value meets the condition of Reduction Factor that has been set to
0.5 as the value of 5.278 mm/s is at 50% of the L2 curve height at this point (the
L2 at 32.9 Hz is around 10.5 mm/s). The SVAN 958A stores the value that triggered
the Event as the Alarm value that can be displayed in SvanPC++:
Event PPV
According to the Event Duration setting, the Event lasted 4 seconds (Stop at
19:22:09.600). At the Stop point the system analyses the 4 seconds of previous
data to determine the Event maximum PPV in each axis, which in this example is
the value of 8.306 mm/s at 32 Hz at the X axis
Event Value in SvanPC++ software
SV 258 PRO User Guide
Event Value on the SVAN 958A display
Note: When station is exchanging data with SvanNET the Criterion Curve view is
not accessible due to limited computational power of the instruments.
