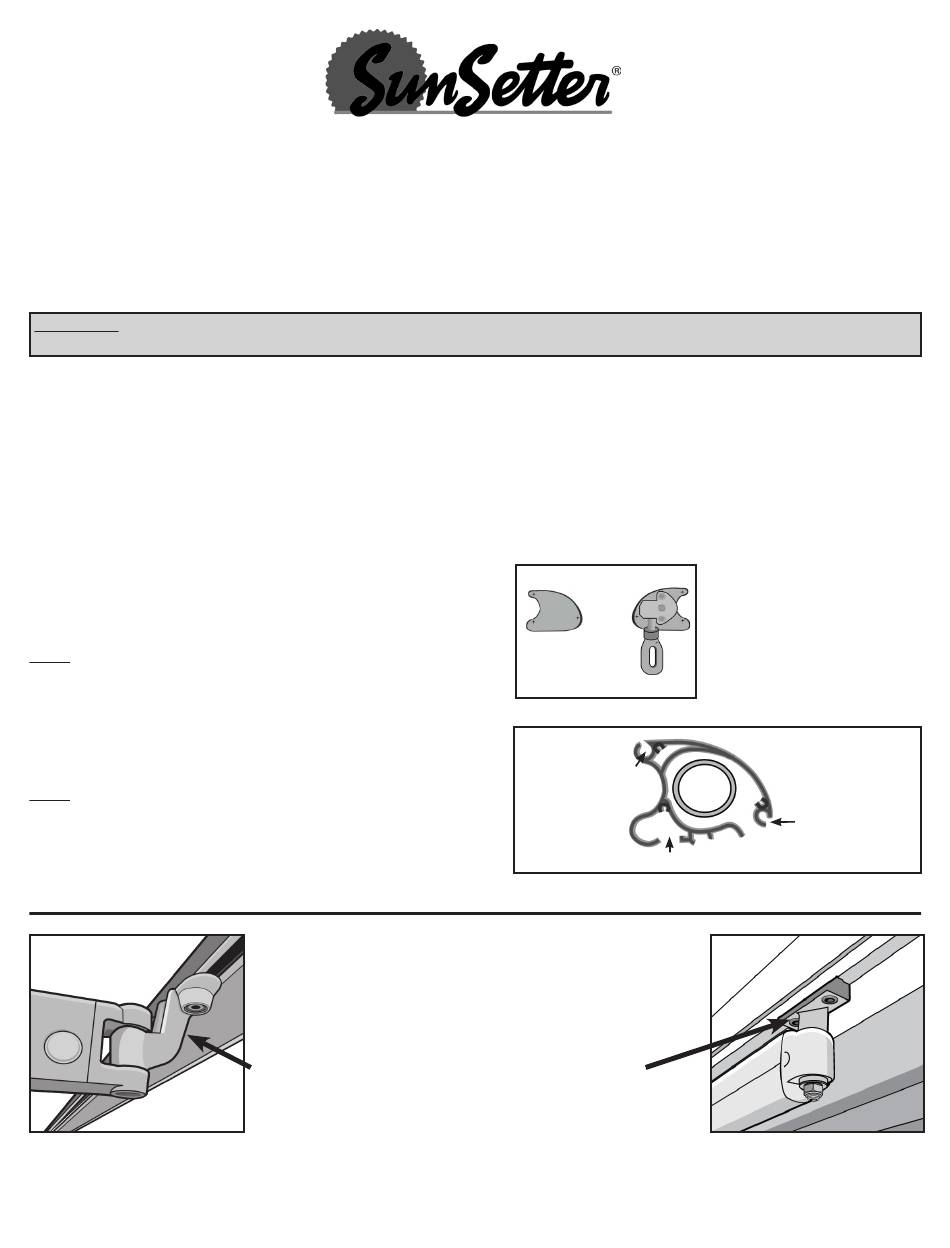

Front bar complete assembly replacement

Advertisement

Parts Supplied: PRO Front Bar Housing, six End Plate screws.
WARNING: FAILURE TO FOLLOW THESE PROCEDURES CAN RESULT IN PERSONAL INJURY!! PLEASE READ
THESE INSTRUCTIONS COMPLETELY BEFORE PERFORMING THIS PROCEDURE.
PLEASE NOTE THAT LEFT AND RIGHT REFERENCES ARE AS YOU ARE FACING THE HOUSE.
1. Open the Awning to the fully extended position.
2. Press the "my" button on the Remote Transmitter. If you have a Wall Switch, put it in the neutral position.
3. Unplug the power cord from the wall outlet.
4. Using the manual Crank Wand, continue to unroll the Fabric until you see the Fabric Slot on the Roller Bar.
This will create the necessary slack in the Fabric to relieve tension on the Lateral Arms and Front Bar.
5. Using a Phillips screwdriver, remove ONLY the LEFT End
Cap on the LEFT end of the Front Bar (on the opposite
end of the Gear Assembly). See Figure 1.
Note: Do not disturb the RIGHT side End Cap with the
Gear Assembly attached. This is on the RIGHT side of the
Front Bar, as you are facing the house. See Figure 1.
6. With your helper, slide the Valance out of the Front Bar
and place in a clean, safe area.
Note: The Valance slot is on the front leading edge of the
Front Bar. See Figure 2.
Figure 3
©SunSetter Products, a Massachusetts Limited Partnership, 184 Charles Street, Malden, MA 02148
RETRACTABLE AWNINGS
For Technical Support visit us at www.sunsetter.com/ownerscorner
or Call Toll Free 800-670-7071 • Fax 877-224-4944
Motorized PRO Awning

PRO Front Bar Complete Assembly Replacement

*Helpers Needed*
Choose Section A or Section B according to
the type of Front Bar Connector
present on your Awning.
See Figure 3 and Figure 4.
For this type of
Front Bar Connector,
use Section A
Figure 1
Left End Cap
Right End Cap
Figure 2
Fabric Slot
Front Bar Connector Slot
For this type of
Front Bar Connector,
use Section B
Front Bar Side View
Valance Slot
Figure 4
