SunSetter OASIS Replacement Instructions page 3

Top bracket

Advertisement

15.
Remove the Top Bracket from the Arm Clamp Bracket Bolts, by slowly and carefully sliding it away from
the four bolts of the two Arm Clamp Brackets. Support each Arm Clamp while they are removed from the Top
Bracket, one side at a time.
Note: For the Manual Gear Driven Oasis, note the orientation of the Gear Assembly on the Top Bracket
Assembly before performing the next step.
16.
If this end has a Manual Crank Assembly attached to the Top Bracket, using the 5mm Allen wrench,
remove the Manual Crank Assembly and attach it to the new Top Bracket with the same orientation.
17.
Begin replacement of the Top Bracket by sliding the
new Top Bracket into the Horizontal Square Bar. The part of
the Top Bracket that sticks outward from the flat side, is the
part that slides into the Horizontal Square Bar. See Figure 8.
18.
While a helper lifts and supports the Roller Bar
Assembly, partially slide the bolts of one Arm Clamp into one
set of holes in the Top Bracket. Do not slide the bolts of the
Arm Clamp all the way into the holes, yet.
19.
Slide the other Arm Clamp bolts into the other set
of holes in the Top Bracket. While performing this step, the
helper aligns the Roller Bar Pin and Bushing and guides them
into the Roller Bar Pin opening in the Top Bracket, as the Top
Bracket is moved in place. See Figure 8.
Note: It may be helpful to use a mallet to slide the Top Bracket onto the four bolts connected to the two
Arm Clamps, once the bolts have started to slide into the holes. The Roller Bar Assembly with the pin and
bushing should slide into the Roller Bar Pin opening in the new Top Bracket.
20.
Attach the four washers and nuts on the Arm Clamp bolts and tighten only by hand at this time.
GO TO STEP 28
For Top Bracket type
shown in Figure 9,
continue at Step 21
WARNING: Make sure Safety Sleeves are on all Arms.
21.
Remove the 6mm Allen Cap Bolt connecting
the Lateral Arm to the Front Bar, ONLY on the end
with the Top Bracket to be replaced. See Figure 10.
22.
Swing the Lateral Arm away from the Oasis.
23.
Loosen the two 4mm Allen Set Screws in the
Top Bracket. See Figure 11.
24.
Remove the Retaining Pin. See Figure 11.
25.
Set the Lateral Arm aside, in a safe place.
Note: Do Not Mix Up the LEFT and RIGHT Arms.
26.
Repeat Steps 21 through 25 for the other
Lateral Arm connected to the same Top Bracket.

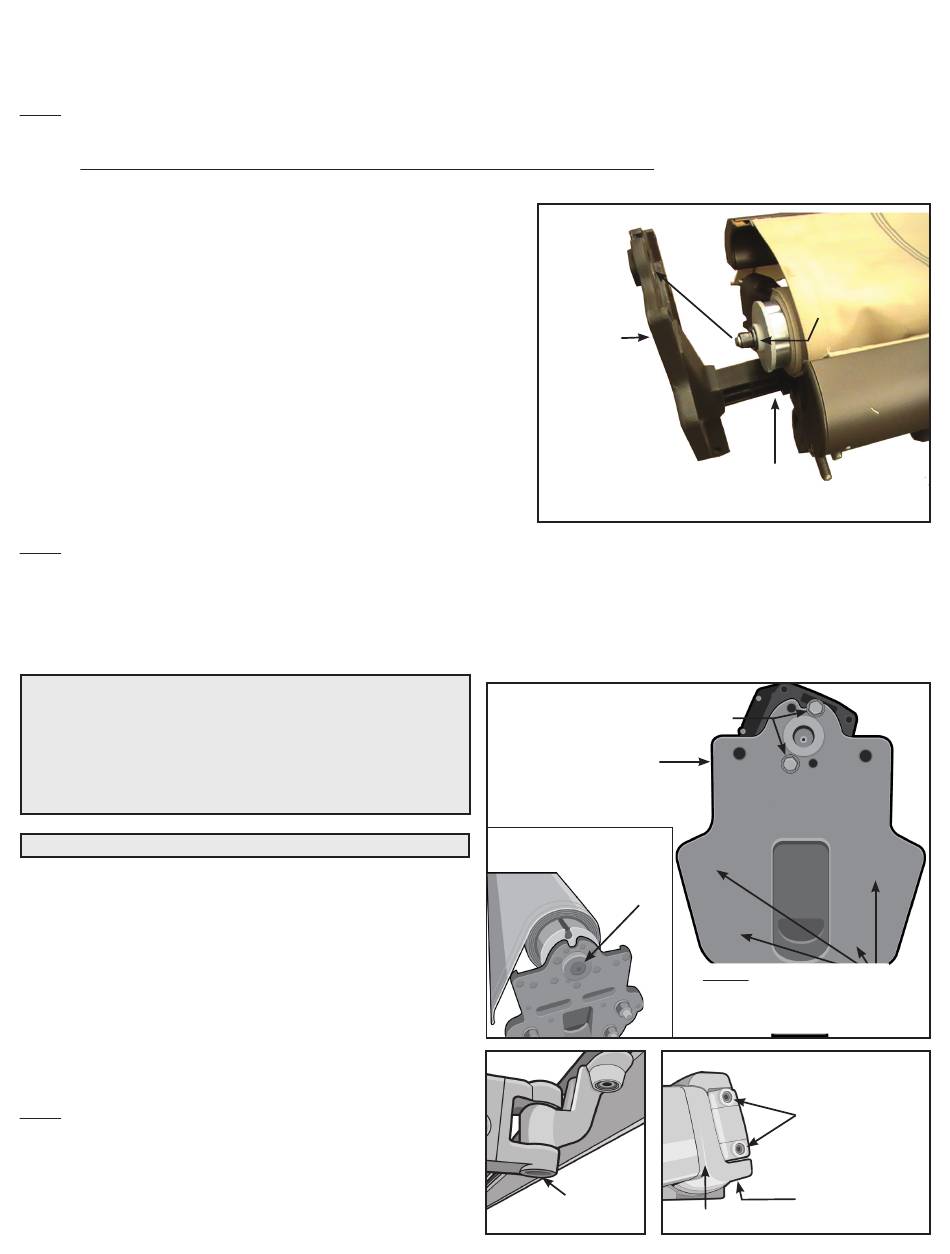

Figure 8
Top
Bracket
Step 16: Top Bracket slides
into the open end of the
Horizontal Square Bar
Figure 9
Motor Bolts for
Motorized Model Only
Top Bracket
Figure 9 Insert
opposite end from motor
Roller Bar Pin
and Bushing
Figure 10
6mm Allen
Cap Bolt
3
Bushing on
Roller Bar Pin
NOTE: No Arm Clamp
Nuts and Washers on
Back Side
Figure 11
4mm Allen Set
Screws in the
Top Bracket
Retaining Pin
Lateral Arm
