Adjustments
5.1.4

Extension of the gripper width

For optimum gripping of the stone layers, it is possible to
change the gripper width (of the main clamping)
Reason: because often the outer feather-steel-lamellas (Fig
21.1) overlaps outside of the stone layer during the gripping
process and thus complicate the direct positioning to an
already laid stone layer eventually.
For this purpose, in each case the two outer feather-steel-
lamellas are depending on each situation (at the planum /
facing bedding sand and both on the machine side of the
main clamping) by replacing the appropriate accessories
"feather-steel-lamellas" (Figure 21.2).
C Feather steel lamellas to extend the gripper length
at the main clamping
D Feather steel lamellas to reduce the gripper length
at the main clamping
5.1.5

Pushing-off bar

With a stone layer breadth over 1000 mm the adjustable
pushing-off bar (max. 1200 mm) should be extended.
Pull out the spring plug and rotate it a little at the same
time. Then let spring plug go.
Then move the spring plug corresponding to the stone layer
breadth.
Pull out the spring plug and rotate it a little at the same time
and lock it in the borehole again.
5140.0042

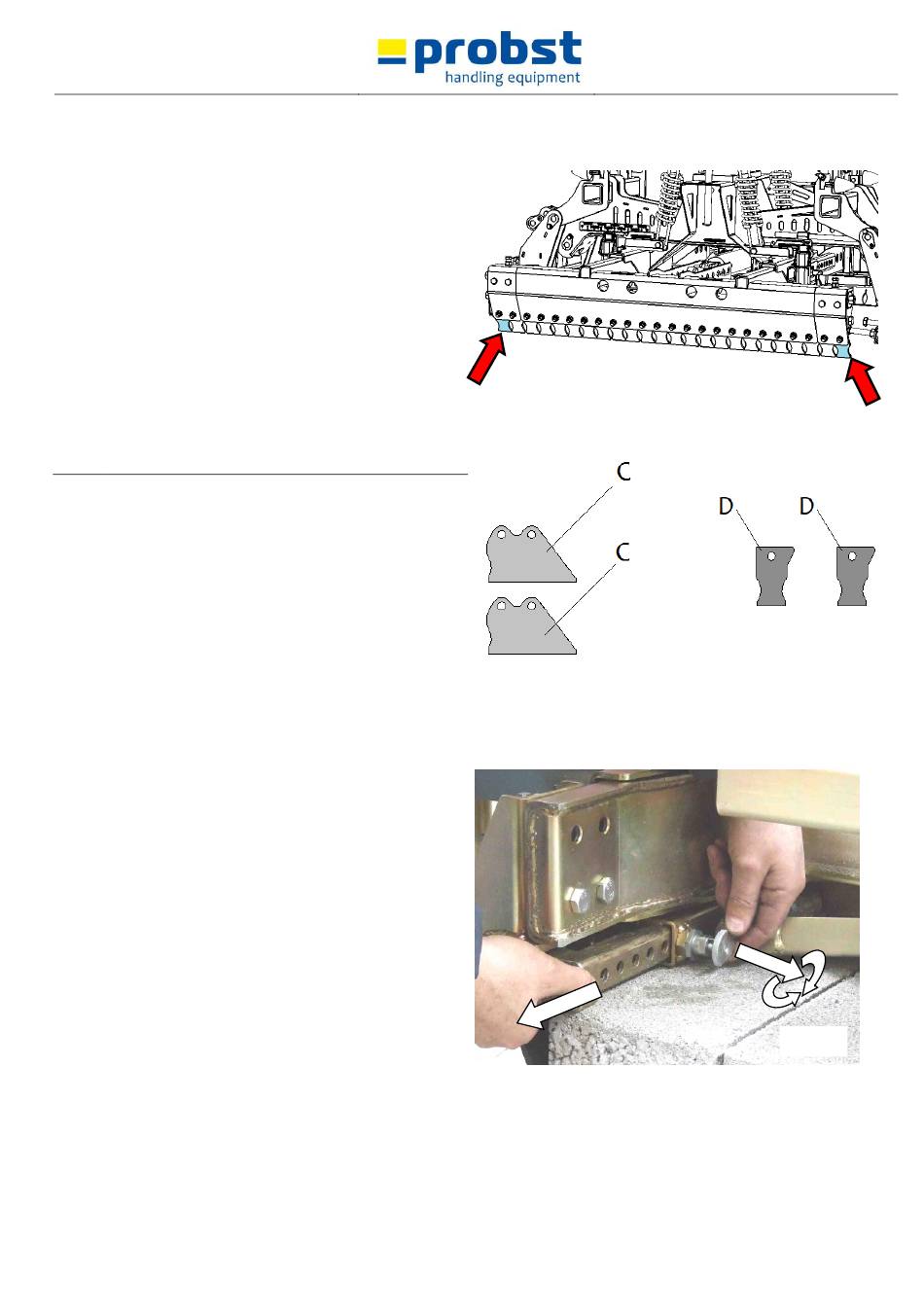

Fig. 21.1
