Adjustments
1.1 Adjustment of the steel-lamellas
The steel-lamellas should not stitch out sideways over the contur of the laying cluster, because they could hit the already
laid blocks when laying a new cluster into an edge.
Depending on the length of a pack, the lamellas which are stitching over, should be replaced by the 1.5 lamella or the half
lamella.
For certain stone systems it can be advantageous or even necessary (e.g. hexagonal stones) to use special lamellas. If
necessary, contact the manufacturer of the laying clamp.
Fig. A
Tighten the self-locking nuts tight and then loosen them again by 1/2 turn. In order to give the steel-lamellas a higher
flexibility and therefore a good, secure and gentle grip to the pavers.
5140.0042

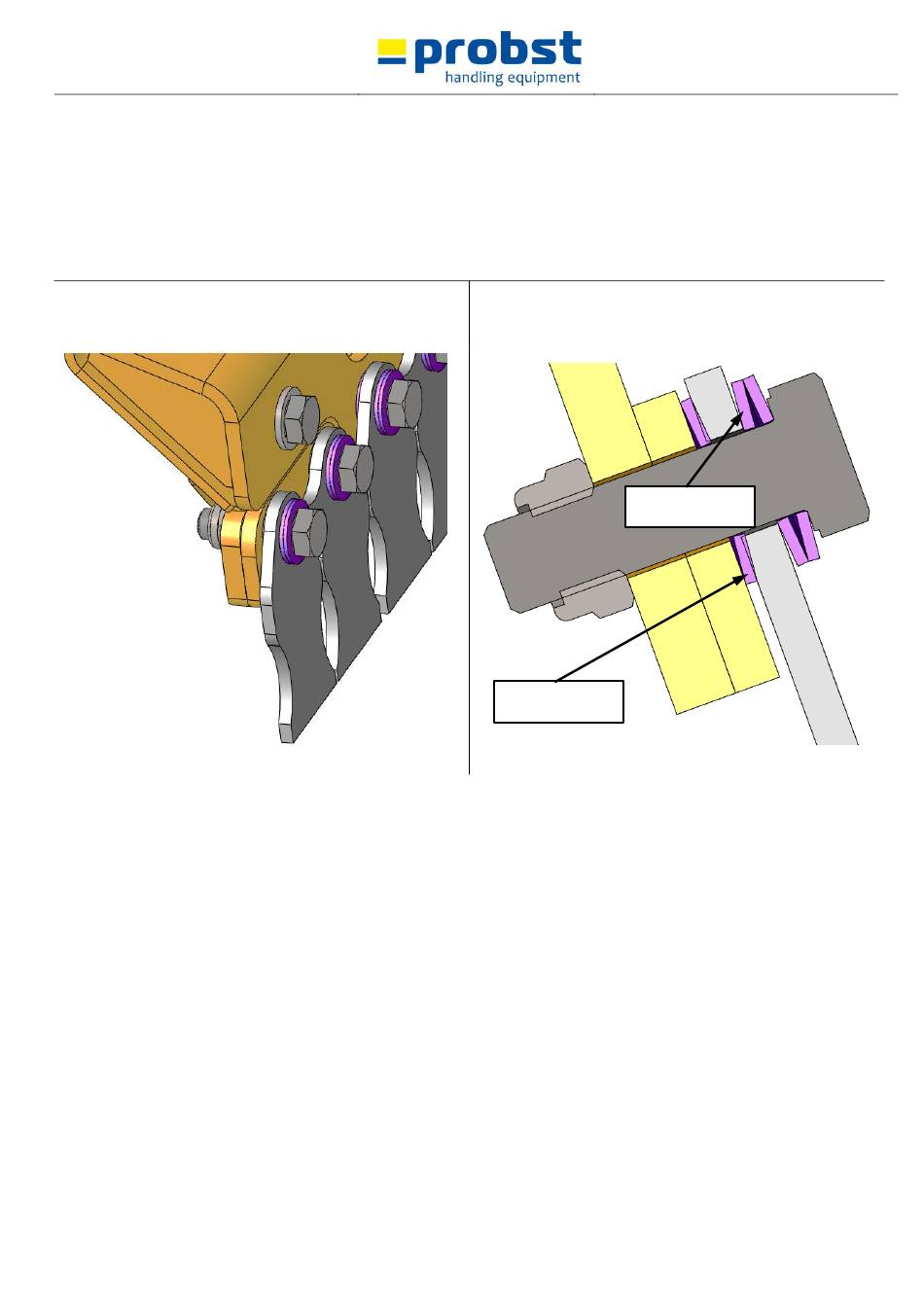

When mounting the screws with the lamellas, pay attention
to the configuration of the three spring washers as shown
on the drawing (Fig. B)
Steel lamella
Fig. B
V1
Steel lamellas
