Adjustments
5.1.1.2

Machine Side

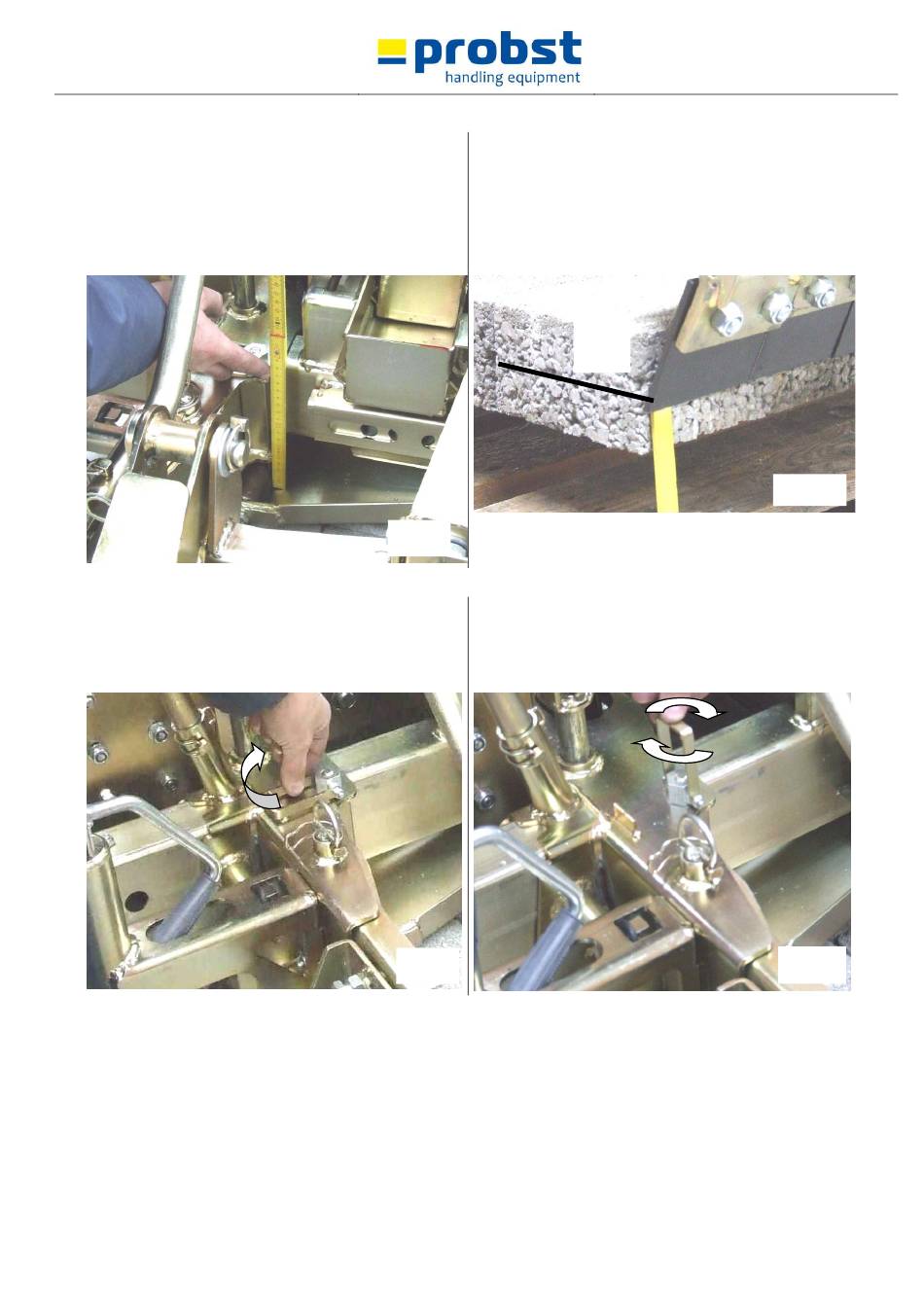

Adjust the gripping depth (machine side) so, that the
steel-lamellas are gripping in the
(see fig. 8).
Example: with stone layer breadth of 800 mm
→ 170 mm
Swing crank upwards to adjust the gripping depth.
5140.0042
With extremely large stone layers it recommends to adjust the
gripping depth a little lower, so that the steel-lamellas grip in
½
of the stone layer
the lowest range of the stone layer. Otherwise it exist the
danger that the stone layer breaks out.
Fig. 7
Adjust the gripping depth identical on both sides of the
device.
Swing crank downwards and secure it in the same
position, as shown in fig.9.
Fig. 9
V1
½
21 / 45
Fig. 8
Fig. 10
