Installation
Excavator-suspension UBA
Make a secure connection (locking bolt with nut and a
additional lock nut) between the rotating head and the
excavator suspension.
Safety bolt with locking ring
* The adjustment of the nut with locknut takes effect of the speed movement of the grab swing brake.

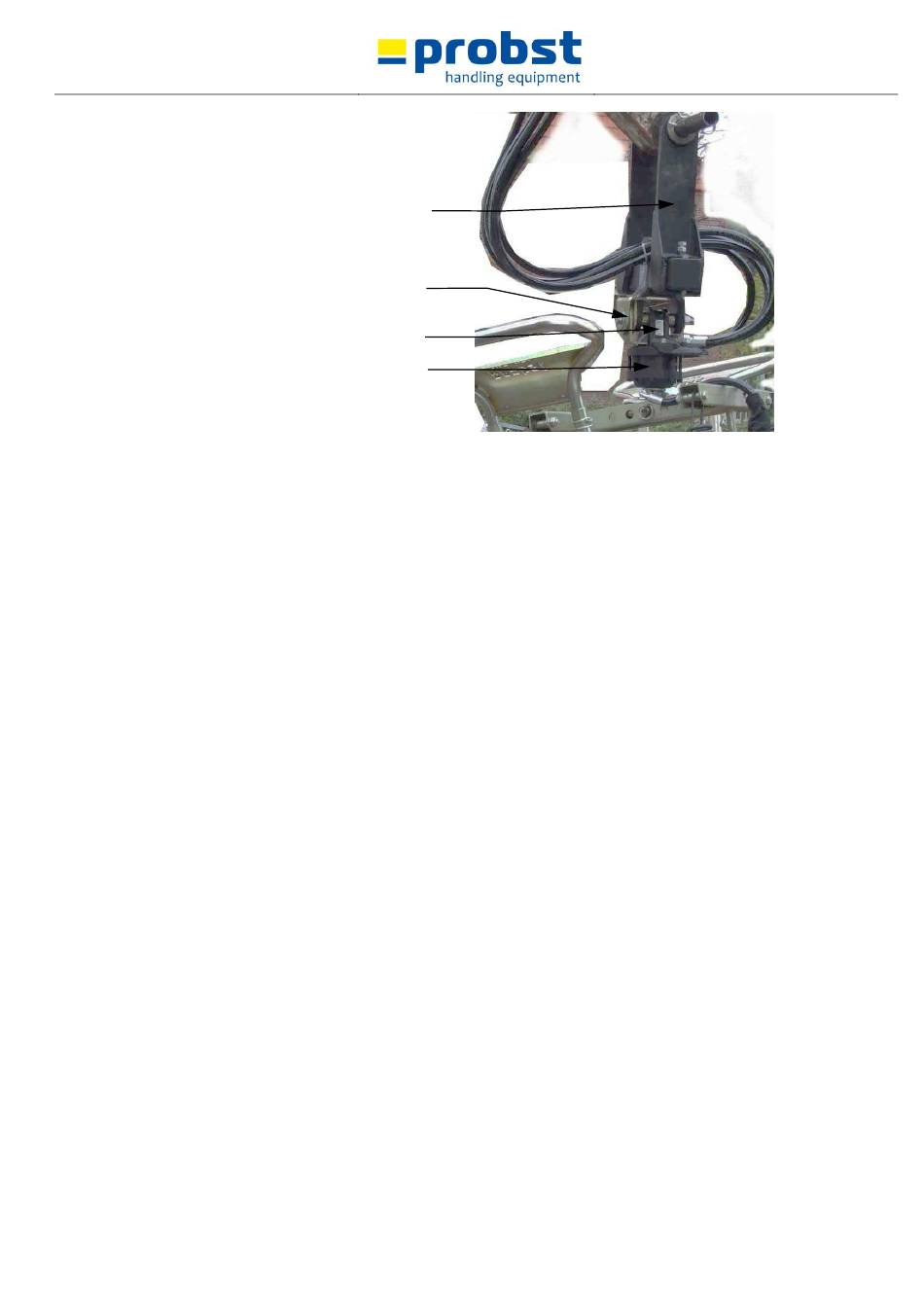

5140.0042
Excavator suspension
(UBA)
*
(+ locknut)
Grab swing brake
Rotating head
V1
15 / 45
