II - 3 ACTAIR 400 to 1600 and DYNACTAIR 200 to 800 and other ¼ turn actuators
These instructions only relate to pneumatic ¼ turn actuators whose flange complies with VDI/VDE 3845 with the
following dimensions: A = 80 mm; B = 20 mm (actuator shaft height).
For the other VDI/VDE dimensions, please contact us.
10

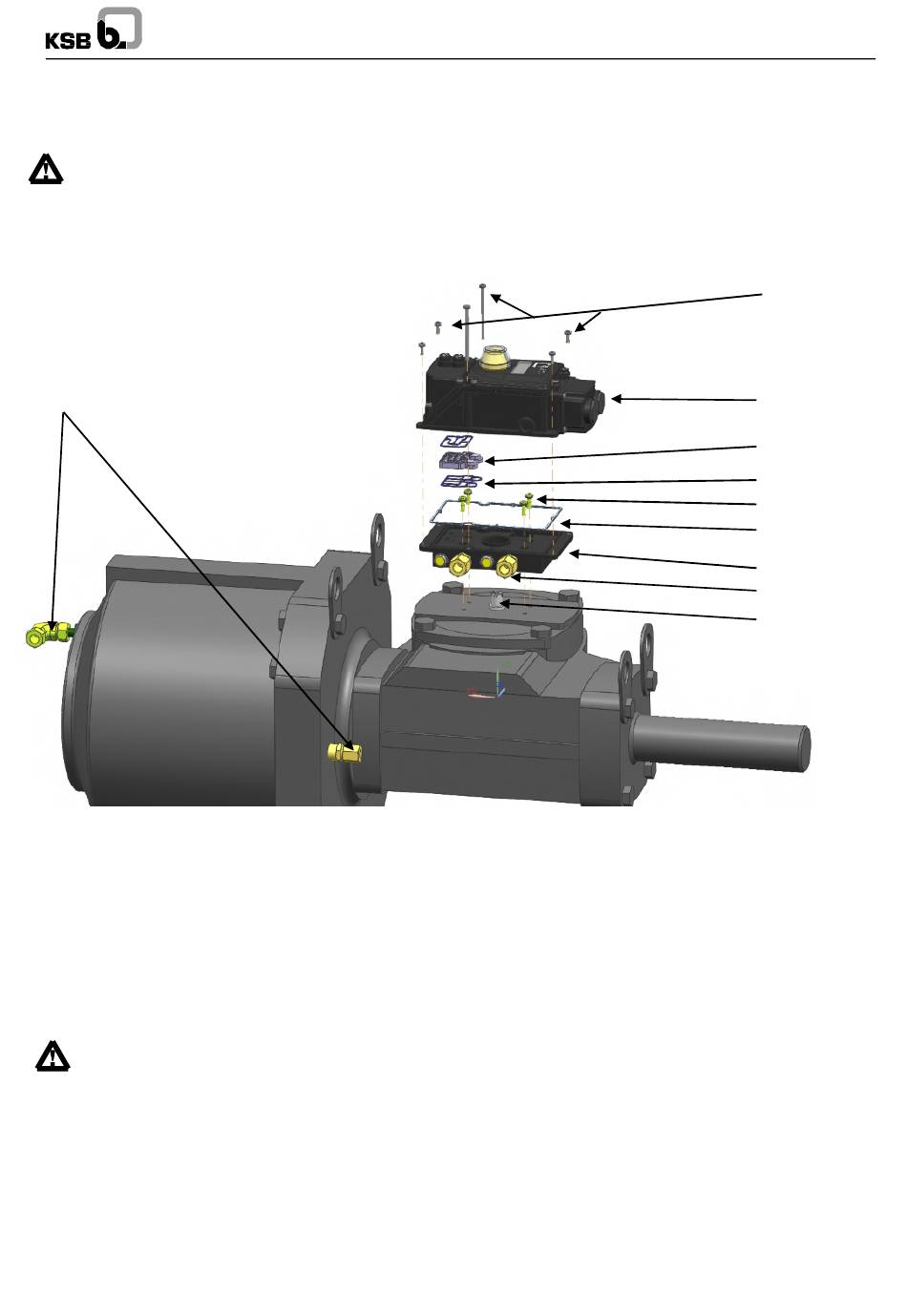

A – Check that the base (item 1) supplied with the unit is intended for this type of actuator.
It must have two ¼" gas pneumatic openings (item 2 - connections not supplied) on the side, to supply the actuator chambers).
B – Separate the unit (item 3) from the base (item 1) by unscrewing the 6 M4 screws (item 4) (TORX T20 screwdriver).
C – Remove distribution plate A or B (item 5) with its two seals (item 6)
D – Fix the base (item 1) to the actuator using 4 M5 screws + seals + washers (item 7) (TORX T20 screwdriver)
E – Reposition distribution plate A or B (item 5) with its two seals (item 6)
Check that the seal is correctly positioned (item 8)
F – Position the unit (item 3) on the base (item 1) taking care to engage the white shaft of the unit with the shaft (item 9) of the
actuator and tighten the 6 M4 screws (item 4) (TORX T20 screwdriver)
G – The openings of the base (2 x ¼'' G) (item 2) must be connected to the pneumatic actuator (item 10) as shown in the actuator
instructions.
AMTRONIC R1300
4
3
5
6
7
8
1
2
9
9
