Summary of Contents for Culligan Medallist Plus Iron-OX5

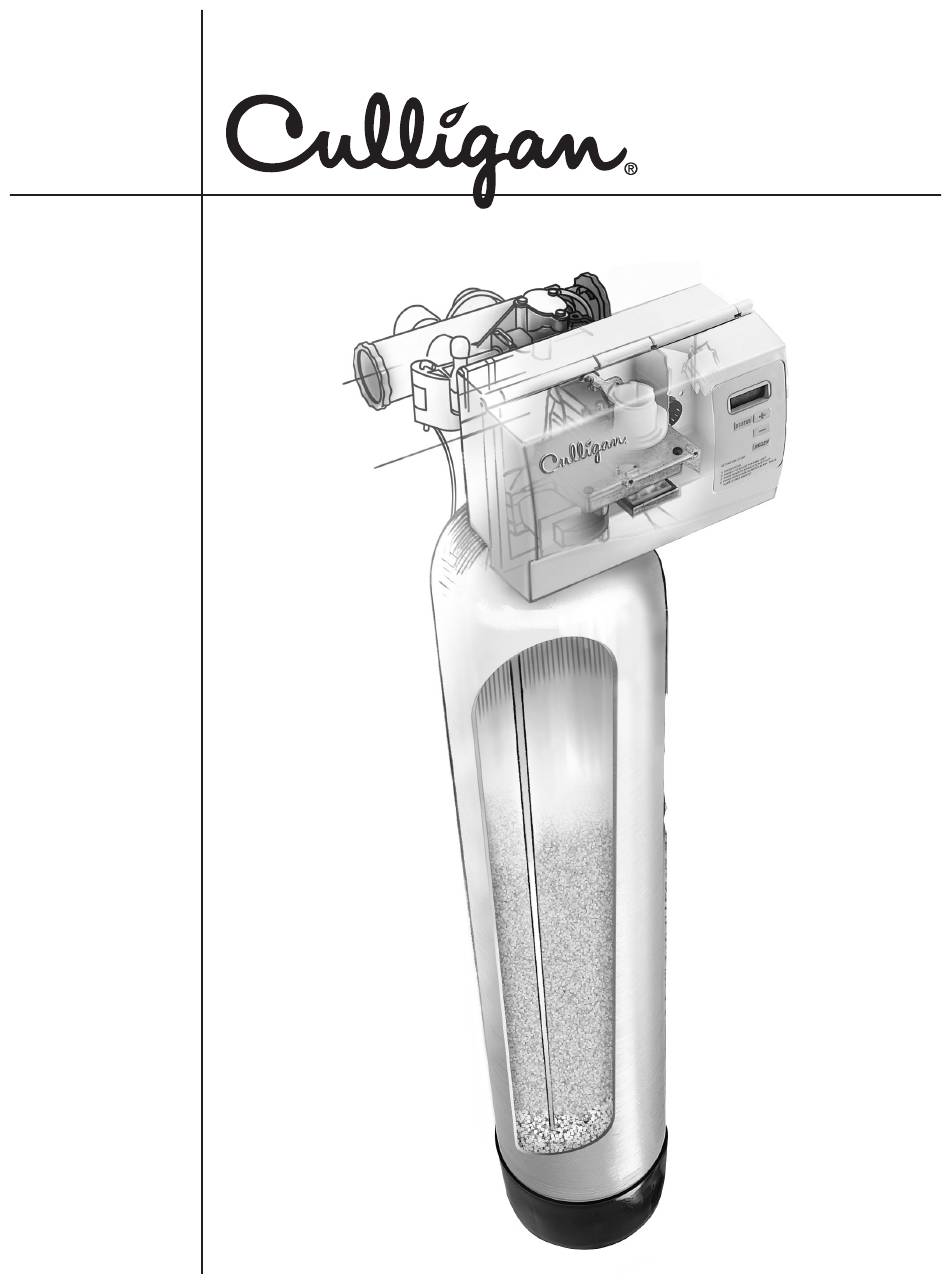

- Page 1 Culligan Medallist Plus ® Iron-OX5™ Filter Owners Guide 01035155_A DCO 190572 09/19...
- Page 2 United States and other countries. Culligan reserves the right to change the specifications referred to in this literature at any time, without prior notice. Culligan, AquaSensor, Tripl-Hull, and SoftMinder are trademarks of Culligan International Company or its affiliates.
-
Page 3: Table Of Contents
When & How to Bypass Your Water Filter ....................12 Things to Check Before You Call For Service ...................13 Care and Cleaning of Your Water Filter .....................14 Performance Data Sheet ...........................15 Records and Data............................16 Culligan Limited Warranty .........................17 01035155 A 09/19... -
Page 4: About This Manual
Read this Manual First Before you operate the Culligan Medallist Plus Iron-OX5™ water filter system, read this manual to become familiar with the device and its capabilities. Installation or maintenance done on this system by an untrained service person can cause major damage to equipment or property damage. -
Page 5: Thank You
Congratulations, too, on selecting one of the “first family” of water filters in the prestigious Culligan Medallist Series. With Culligan’s many years of knowledge and experience in water treatment, you can be confident that the model you selected has been designed and engineered to provide years of service with a minimum of care and attention. -
Page 6: Specifications
Culligan Medallist Plus Iron-OX5 Filter Specifications 10" Iron-OX5 Control Valve 1" reinforced thermoplastic Overall Conditioner Height 67" Media Tank Dimensions (D x H) 10" x 54" tank Filter Media Type 1.0 cu. ft. Birm Underbedding G-50 35 lbs. Cullsan U 25 lbs. -
Page 7: Application
Principles of Operation - Iron-OX5 Aeration System The Culligan Iron-OX5 system utilizes the principle of oxidation to convert ferrous iron to ferric iron, resulting in removal of the iron as a filterable particle. The process is accomplished by water entering |the filter tank being immediately exposed to an “airhead”... -
Page 8: Operation
Should service become necessary, a phone icon will appear in the display. If this condition occurs, call your local Culligan Dealer for assistance. The phone icon and error code will be the only items displayed when service is required on the control. -
Page 9: Programming
The timer uses four buttons: Programming Button Description Set-up / Enter Key (Status) Advance timer through display options Reconditioning Key (REGEN) Initiate a reconditioning cycle Toggle Down Key (“-”) Decrease the setting Toggle Up Key (“+”) Increase the setting Time of Day This setting is used to program the current time of day. - Page 10 Backwash Time This setting is used to program the cycle 1 time that is the backwash cycle. The time of the cycle is kept in minutes. The display will show “buu” in the display for two seconds and then the cycle time in the right most digits.
-
Page 11: Error Codes
Error Codes The Culligan Medallist Series Filter is equipped with an advanced error detection system. During all operating modes the filter’s electronics are performing self-diagnostics to ensure that the unit is operating correctly. There may be times, however, when something may occur that could cause the unit to improperly operate. -
Page 12: When & How To Bypass Your Water Filter
Medallist Plus Series Bypass Valve Culligan Bypass Valve In the back of Culligan water filters is a Cul-Flo-Valv ® Bypass. To bypass unit, simply turn the blue knob clockwise. To return to filtered water service, reverse the procedure—turn the blue knob counter-clockwise. -
Page 13: Things To Check Before You Call For Service
(outside tap) to see if you have any water pressure. If you have water pressure, check the bypass valve. If it is in the Service position, put it into the bypass and call your Culligan dealer for service. -
Page 14: Care And Cleaning Of Your Water Filter
To do this, turn the knob on the bypass valve to the bypass position. Then, call your Culligan dealer to have your system sanitized before it is placed back into service. -
Page 15: Performance Data Sheet
Culligan knows the more informed you are about your water treatment system, the more confident you will be about its performance. It’s because of this and more than seventy years of commitment to our customers that Culligan is providing this Performance Data Sheet to its customers. -
Page 16: Records And Data
Records Important Data on Your Water Filter and Data It is advisable to have the salesperson or installer fill in the information below for your future reference. If this has not been done, please ask for it, as it is nec es sary if you contact your dealer. Identification ____________________ ______________________... -
Page 17: Culligan Limited Warranty
You have just purchased one of the finest water filters made. As an expression of our confidence Warranty in Culligan International Company products, your water filter is warranted to the orig i nal end-user, when in stalled in ac cor dance with Culligan specifications, against defects in material and work-... - Page 18 Notes 01035155 A 09/19...
