Heavy Duty Water Filter
Model HD-950
A
Installation and Operating Instructions
NOTE: This filter housing does NOT include a filter cartridge.
Choose the appropriate filter cartridge for your needs and install in housing according
to the Cartridge Replacement instructions before proceeding with installation. See
cartridge selection chart.
Operating Specifications
Pressure Range:
30–100 psi (2.1–6.9 bar)
Temperature Range: 40–100°F (4.4–37.7°C)
Parts Included

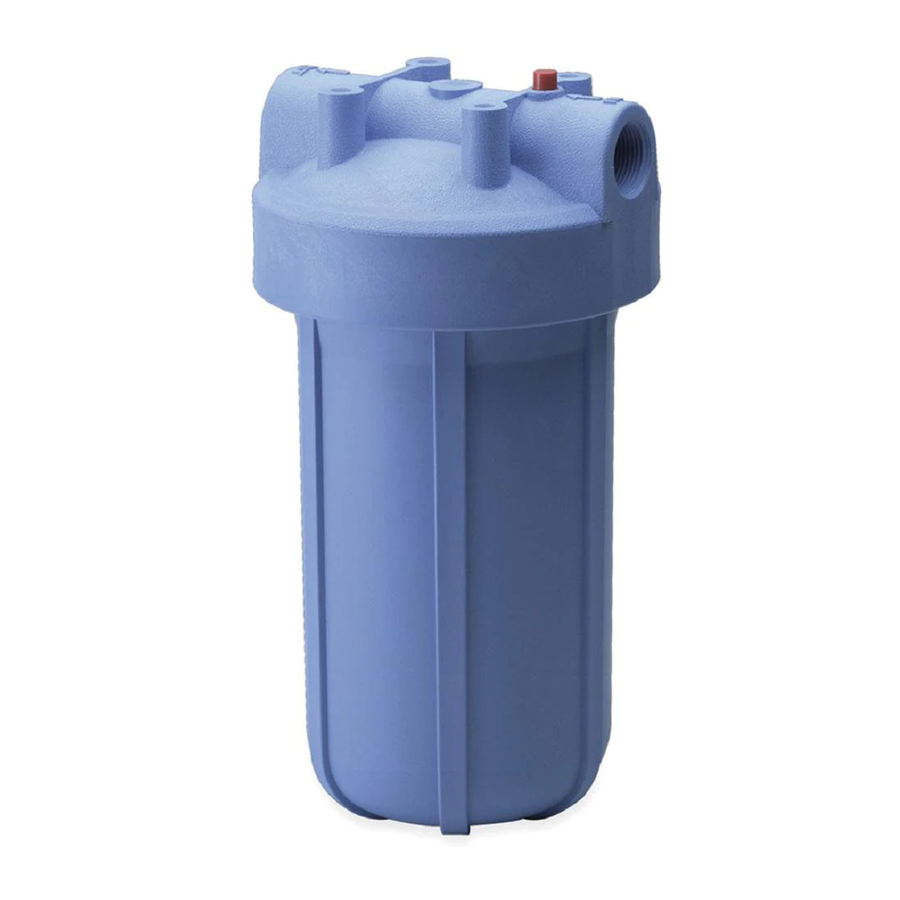

filter housing
SW-3
housing wrench
A
Tools Required
• 2 adjustable wrenches
• 2 pipe wrenches
• pipe threader
Materials Required (not included)
Depends on type, size, and location of pipe on which filter will be installed.
Measure the pipe to determine what size nipples, union, and valve you will
need. If you are not installing on 1-inch pipe, you will also need to purchase
the appropriate size bushings. Consult your local hardware store to learn more
about your particular installation needs.
Galvanized fittings must be used with galvanized pipe.
NOTE:
Optional Materials
• WBA mounting bracket
• jumper wire
Precautions
WARNING:
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the system.
CAUTION:
Filter must be protected against freezing, which can cause cracking of
the filter and water leakage.
CAUTION:
The rubber O-ring provides the water-tight seal between the cap and
the bottom of the housing. It is important that the O-ring be properly seated in the
groove above the threads of the housing or a water leak could occur.
CAUTION:
Because of the product's limited service life and to prevent costly
repairs or possible water damage, we strongly recommend that the bottom of all
plastic housings be replaced every ten years. If the bottom of your housing has
been in use for longer than this period, it should be replaced immediately. Date
the bottom of any new or replacement housing to indicate the next recommended
replacement date.
03/09
• file
• pencil
• pipe cutter or hacksaw
Technical Support: 1-800-721-9243
(M-F 8:00 am - 4:30 pm CST)
NOTE:
• For cold water use only.
• Make certain that installation complies with all state and local laws and
regulations.
• The contaminants or other substances removed or reduced by the selected
cartridge are not necessarily in your water. Ask your local water municipality
for a copy of their water analysis, or have your water tested by a reputable
water testing lab.
• After prolonged periods of non-use (such as during a vacation) it is
recommended that the system be flushed thoroughly. Let water run for 5–6
minutes before using.
• The filter cartridge used with this system has a limited service life. Changes in
taste, odor, color, and/or flow of the water being filtered indicate that the
cartridge should be replaced.
• Some harmless bacteria may attack cellulose media cartridges. The CP5-BBS
is not recommended on non-chlorinated water. If your cartridge seems to
disintegrate or develops a musty or moldy odor, switch to a synthetic media
cartridge or consult the manufacturer.
The HD-950
housing has been tested and certified by WQA against
A
NSF/ANSI Standard 42 for materials safety and structual integrity only.
1
01020704
