Summary of Contents for Culligan Medallist Plus Sulfur-OX3

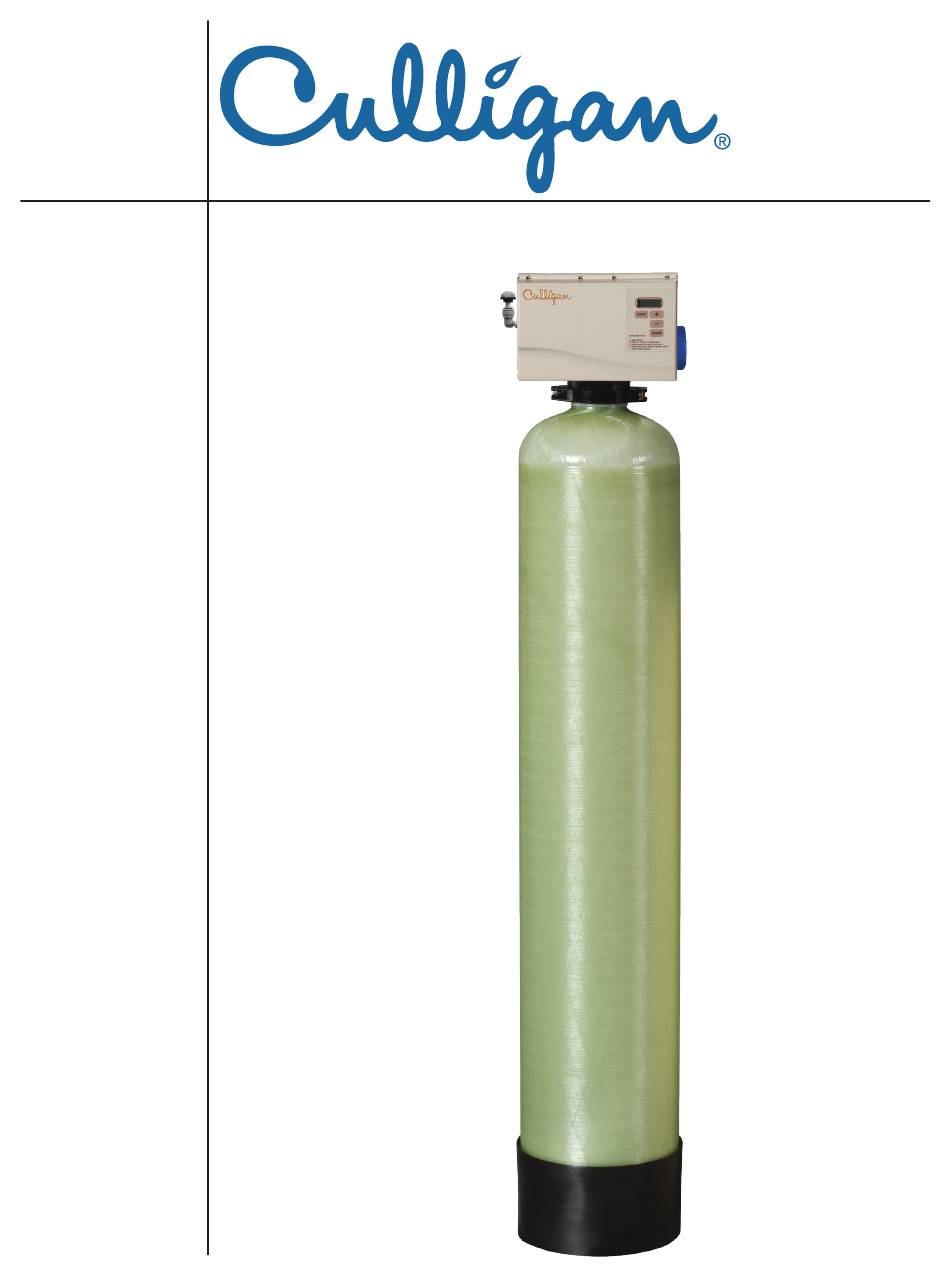

- Page 1 Culligan Medallist Plus ® Sulfur-OX3 Automatic Water Filter Owners Guide 01035157_C DCO# 200348 10/20...
-
Page 2: Table Of Contents
When & How to Bypass Your Water Filter ....................13 Things to Check Before You Call For Service ...................14 Care and Cleaning of Your Water Filter .....................15 Performance Data Sheet ...........................16 Records and Data............................17 Culligan Limited Warranty .........................18 01035157 C 10/20... - Page 3 Products manufactured and marketed by Culligan International Company (Culligan) and its affiliates are protected by patents issued or pending in the United States and other countries. Culligan reserves the right to change the specifications referred to in this literature at any time without prior notice. Culligan, Aqua- Sensor, Tripl-Hull, and SoftMinder are trademarks of Culligan International Company or its affiliates.
-
Page 4: About This Manual
Gives specifications and troubleshooting information Read this Manual First Before you operate the Culligan Medallist Plus Sulfur-OX3™ water filter system, read this manual to become familiar with the device and its capabilities. Installation or maintenance done on this system by an untrained service person can cause major damage to equipment or property damage. -
Page 5: Thank You
The use of saddle valves is not permitted. The Culligan® Medallist Plus Sulfur-OX3™ water filter system is designed to meet the needs of applications for high quality water. This manual contains important information about the unit, including information needed for installation, operating, and maintenance procedures. -
Page 6: Specifications
Specifications Culligan Medallist Plus Sulfur-OX3 Filter 10" Sulfur-OX3 Control Valve 1" reinforced thermoplastic Overall Conditioner Height 67" Media Tank Dimensions (D x H) 10" x 54" tank Filter Media Type 1.0 cu. ft. Cullar S Underbedding Cullsan 20 lbs. Capacity¹... -
Page 7: Application
.50 ppm. In some cases hydrogen sulfide can be caused by Sulfate Reducing Bacteria (SRB). This system is not designed to treat hydrogen sulfide caused by SRB. The Culligan Analytical Laboratory can test for both of these contaminants. -
Page 8: Operation
Should service become necessary, a phone icon will appear in the display. If this condition occurs, call your local Culligan Dealer for assistance. The phone icon and error code will be the only items displayed when service is required on the control. -
Page 9: Programming
The DEFAULT programming menu for a Medallist Filter is outlined in the following table: Programming Setting Display Range Limits Default Comments Time of Day 12:00 AM - 11:59 PM 12:00 PM 12 / 24 hour function set (12hr) with dip #6 12:00 00:00 - 23:59 (24hr) *Time of... - Page 10 The timer uses four buttons: Button Description Set-up / Enter Key (Status) Advance timer through display options Reconditioning Cycle Key Initiate a reconditioning cycle (REGEN) Toggle Down Key (“-”) Decrease the setting Toggle Up Key (“+”) Increase the setting Time of Day This setting is used to program the current time of day.
-
Page 11: Error Codes
Air Draw Time Error Codes This setting is used to set the time in minutes for cycle 2. This setting is used for the eduction of air (rather than brine) to create the air head that oxidizes hydrogen sulfide within the filter tank. The display will show “br”... - Page 12 Immediate Reconditioning Cycle Override This setting is used to determine whether an immediate or delayed reconditioning cycle should occur after a power outage greater than 3 hours. It applies only when dip #2 is set for “delay”. The display will show the REG icon and “dEL”...
-
Page 13: When & How To Bypass Your Water Filter
Medallist Plus Series Bypass Valve Culligan Bypass Valve In the back of Culligan water filters is a Cul-Flo-Valv ® Bypass. To bypass unit, simply turn the blue knob clockwise. To return to filtered water service, reverse the procedure—turn the blue knob counter-clockwise. -
Page 14: Things To Check Before You Call For Service
Things to If you unexpectedly experience hydrogen sulfide odor or discolored water, make these simple checks before calling your Culligan deal er. One of the following conditions may be the reason for your change in water quality. Check Before Important... -
Page 15: Care And Cleaning Of Your Water Filter
To do this, turn the knob on the bypass valve to the bypass position. Then, call your Culligan dealer to have your system sanitized before it is placed back into service. -
Page 16: Performance Data Sheet
Culligan knows the more informed you are about your water treatment system, the more confident you will be about its performance. It’s because of this and more than seventy years of commitment to our customers that Culligan is providing this Performance Data Sheet to its customers. -
Page 17: Records And Data
Important Data on Your Water Filter Records and Data It is advisable to have the salesperson or installer fill in the information below for your future reference. If this has not been done, please ask for it, as it is nec es sary if you contact your dealer. Identification ____________________ ______________________... -
Page 18: Culligan Limited Warranty
Culligan specifications, is not covered by this warranty. Refer to the specifications section in the Installation and Operating manual for application parameters. - Page 19 Notes 01035157 C 10/20...
