Table 12: Pin Definition of J803, J804, J805 and J806
J803
Pin No.
Pin Name
1, 3, 5
DTR_TEST
2
POWER_EN
4
PWRKEY_3.0V
6
RESET_3.0V
7
VDD_EXT
8
POWER_OFF_3.0V
9
SPI_MRDY
10
SPI_SRDY
J804
Pin No.
Pin Name
1
VDD_3.0V
2
PCM_SYNC
UMTS<E_EVB_User_Guide
9
5
1
7
3
10
8
6
4
2

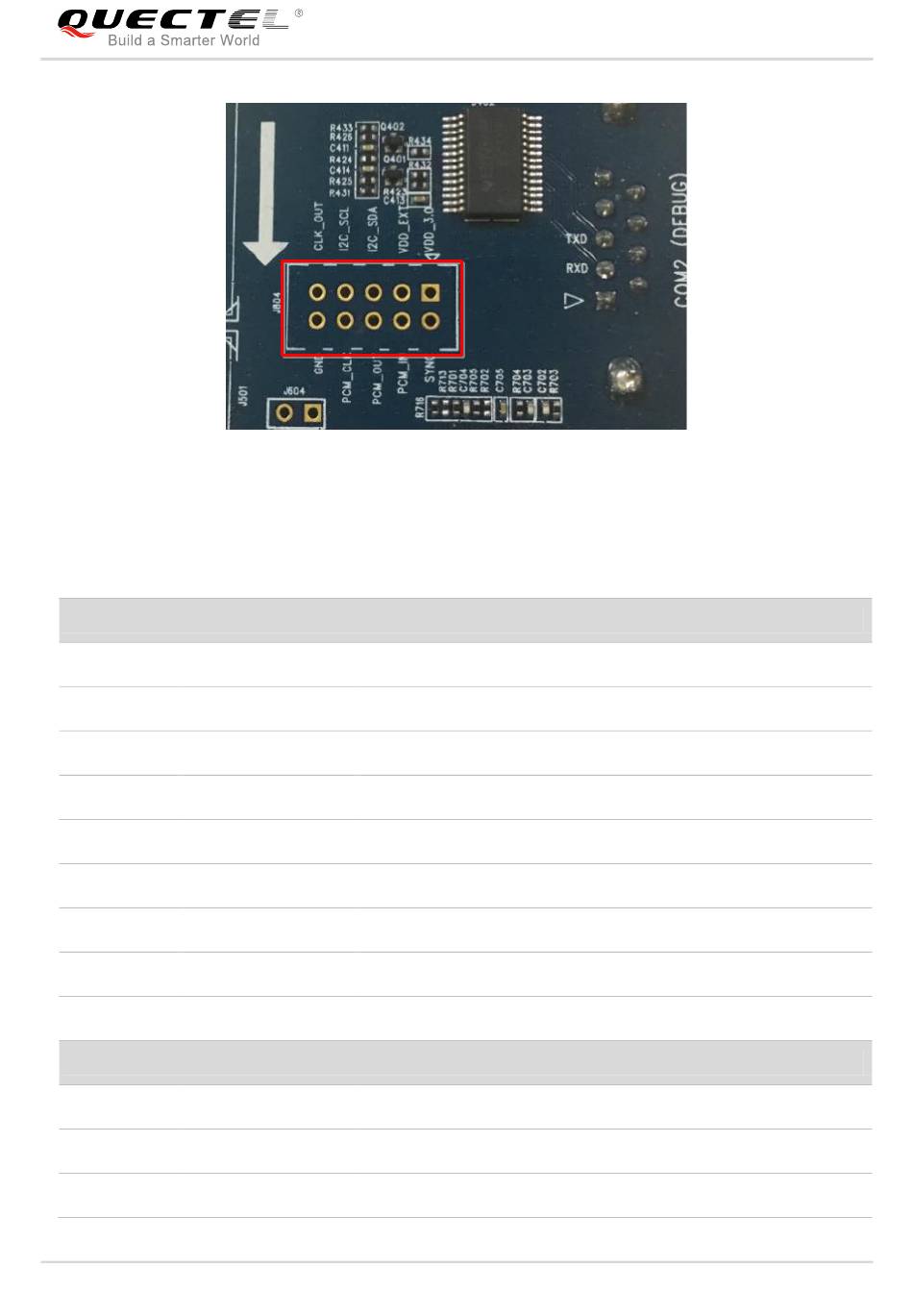

Figure 31: Test Point J804
Description
Data terminal ready test pins
VBAT enable pin
PWRKEY_3.0V test pin
RESET_3.0V test pin
Connected directly to VDD_EXT of UMTS<E modules
Used to power off UGxx modules
RESERVED
RESERVED
Description
3.0V power supply from U302
Connected directly to PCM_SYNC of UMTS<E modules
UMTS/HSPA/LTE Module Series
UMTS<E EVB User Guide
J804
35 / 44
