Operating Manual
Resting and Stress ECG
1
Safety
Part 2: Hardware, description of device for custo cardio 200
Operating characteristics:
12-channel PC ECG,
Resting & stress test ECG
MHW 0002 – DK 1693
Version 001 – 14/09/2017
2
Hardware
3
Software
4
Hygiene

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cardio 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Custo Med cardio 200

Summary of Contents for Custo Med cardio 200

  • Page 1 Operating Manual Resting and Stress ECG Safety Hardware Software Hygiene Part 2: Hardware, description of device for custo cardio 200 Operating characteristics: 12-channel PC ECG, Resting & stress test ECG MHW 0002 – DK 1693 Version 001 – 14/09/2017...
  • Page 2 Internet or from a CD to ensure the Operating Manual is complete. MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 |...

  • Page 3: Table Of Contents

    ......... MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH...

  • Page 4: Symbols On The Devices

    (the radio unit is only active with bluetooth models (BT)) Hygiene seal of the German Society of Hospital Hygiene MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 4...

  • Page 5: Intended Use

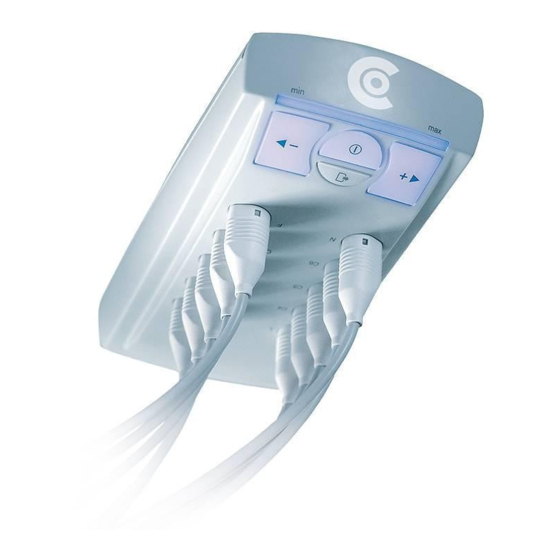

    Hardware, description of device for custo cardio 200 Intended use custo cardio 200 is a 12-channel PC ECG device with an electrode application sys- tem, designed for the creation, analysis and evaluation of ECG recordings in medical practices and hospitals. The system is intended for use by trained specialist staff or physicians.

  • Page 6: Part Names, Components For The Recording

    USB cable (5 m) Telescopic boom Bracket for telescopic boom Cable hook for electrode leads MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 6...
  • Page 7 “for device trolley” Wall mounting set for custo cardio 200 Universal bracket for custo cardio 200 MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 7...
  • Page 8 . Screws for mounting the bracket on the device trolley MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 8...
  • Page 9 *) Note on the power supply: Use only the supplied power supply unit (part no. 85055). MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 |...

  • Page 10: Operating The Device

    Press the electrodes onto the ends of the electrode leads, until you hear a clicking sound MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 |...
  • Page 11 The standard settings for internal cleaning in custo diagnostic: Blowing after test 30 seconds Cleaning period 30 minutes MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 11...

  • Page 12: Preparing The Patient And Examination Procedure

    Only use recommended contact sprays. Residues from other products can damage the custo cardio 400 electrodes. MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 12...
  • Page 13 9. Left rib black 9. Right rib MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 13...

  • Page 14: Instructions For The Recording

    Artefact reduced electrode application Artefact reduced electrode application results in smaller amplitudes in the extremity leads. MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 14...
  • Page 15 Otherwise, the patient may become injured, e.g. also due to an unexpected, abrupt stopping or starting of the treadmill. MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 |...

  • Page 16: Technical Data And System Requirements

    DIN EN 60601-2-25 DIN EN 60601-2-51 *) Does not apply to cardio 200 BT (Bluetooth) MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 16...
  • Page 17 USB 2.0 port or network connection PCL-enabled (increases printing speed with the suitable driver) MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 17...

  • Page 18: Manufacturer's Declaration Regarding Emc

    Manufacturer's declaration – electromagnetic emissions The custo cardio 200 ECG application system is designed for use in the electromagnetic environment stated below. The customer or user of custo cardio 200 should make sure that it is used in such an environment. Emission measurements...
  • Page 19 Manufacturer’s declaration – electromagnetic immunity The custo cardio 200 ECG application system is designed for use in the electromagnetic environment stated below. The customer or user of custo cardio 200 should make sure that it is used in such an environment. Immunity tests...
  • Page 20 HF telecommunication devices and custo cardio 200 custo cardio 200 is designed for use in an electromagnetic environment in which the HF transients can be con- trolled. The user can help avoid electromagnetic interference by maintaining the minimum distance between portable and mobile HF telecommunication devices (transmitters) and the device –...

  • Page 21: Ec Declaration Of Conformity

    Resting and Stress ECG Hardware, description of device for custo cardio 200 2.10 EC Declaration of Conformity MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 21...
  • Page 22 Resting and Stress ECG Hardware, description of device for custo cardio 200 MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 22...

  • Page 23: List Of Product Components And Accessories

    Coding set (1 sheet of 10 pieces) 85070 Cable hook for cardio 200 85071 Telescopic boom for custo cardio 200 MHW 0002 – DK 1693 | Version 001 – 14/09/2017 | custo med GmbH [2] Resting and Stress ECG hardware, custo cardio 200 | page 23...
  • Page 24 Hardware, description of device for custo cardio 200 Accessories Part no. Set/product designation 85078 Telescopic boom short for custo cardio 200 for custo easy plus device trolley 85073 Bracket for telescopic boom including fixtures 85068 Universal bracket for custo cardio 200...
  • Page 25 Manufacturer's contact details: custo med GmbH Maria-Merian-Straße 6 85521 Ottobrunn Germany Phone: +49 (0) 89 710 98 - 00 Fax: +49 (0) 89 710 98 - 10 E-mail: info@customed.de Internet: www.customed.de...
