- Page 1 Operating Manual ABPM with custo screen 300 and custo diagnostic Operating characteristics: > custo diagnostic 3.8 and higher > for Windows® GEB 0154 – DK 1055 Version 002 – 05.06.2013...
- Page 3 This Operating Manual may not be copied in its entirety or in part, duplicated in any form or by any means or translated into another language without the prior written consent of custo med GmbH. The manufacturer reserves the right to change the information in this Operating Manual without prior notice.
-
Page 4: Table Of Contents
................ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... - Page 5 ..... . ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 6: Introduction
This applies in particular to senile patients or patients suffering from dementia. The device is not suited for unsupervised use with unconscious patients. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 7: Symbols Used In This Operating Manual
Words highlighted in colour indicate buttons or click paths to Words highlighted the described program part, e.g. Examination, ABPM in colour.. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 8: Safety Instructions
For users outside the Federal Republic of Germany, the respective national accident prevention measures, regulations and requirements apply. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 9: Safety Installations And Safe Working
The device must be protected against the penetration of moisture, dust or dirt and also against mechanical influences such as damage due to dropping or damage while in transit. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... - Page 10 ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH...
- Page 11 ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 12: Maintenance (Regular Safety Checks)
ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 13: Disclaimer
This is the only way to ensure the safe and trouble- free operation of your device. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 14: Device Description, Basics Of Putting Into Operation

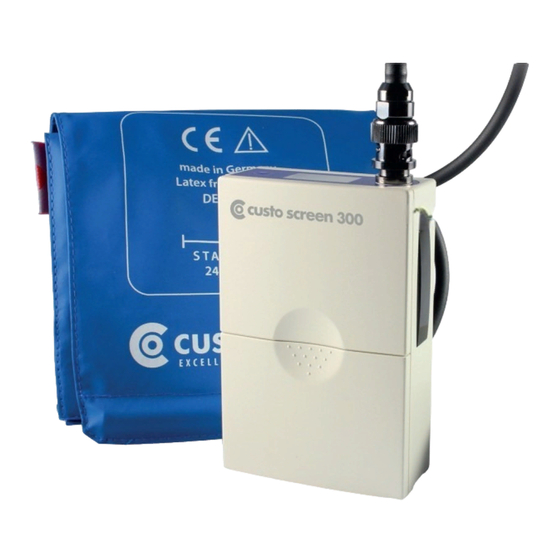

Infrared interface for connecting custo screen 300 and PC (only included in the scope of delivery when purchasing a system) ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 15: Device Operation
(For a list of errors see chapter 07 Product information) Blood pressure cuff port ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 16: Custo Diagnostic - Basic Program Structure
– this can be recognised by the light grey font. This menu is also linked to the Settings area. This area is for making cross-program, examination-related and user-specific settings. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 17: Device Connection And Configuration
100/200 is enabled and custo com USB is entered as the port. Your device is ready for operation. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 18: Hygiene
Be sure that all safety precautions regarding aeration after EtO exposure are followed. Never autoclave. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 19: Approved Cleaning Agents And Disinfectants
Disinfectants (custo screen 300, carrying case, belt): All alcohol-based disinfectants (e.g. propanol, ethanol) approved for medical use. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 20: Carrying Out An Examination
Attach the carrying case to the carrying belt. Put the carrying belt on the patient. The case should be positioned on the patient’s right hip. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... - Page 21 ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 22: Preparing The Recorder For The Recording
If the patient does not yet exist in your database, click on the New Patient button. Enter the patient's data and click on Save . ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... - Page 23 The settings and the patient data are transferred to the recorder. The device is ready for recording. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 24: Attach The Recorder To The Patient
Start custo diagnostic and log in with your user name and password if required. Click on Examina- tion , ABPM . ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 25: Check The Evaluation
Click on End in order to close the evaluation. The end dialogue appears. Click on Confirm close the evaluation. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 26: Working With The Evaluation
“confirmed: No” when the evaluation status “Confirmed” is NOT selected in the End dialogue. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... - Page 27 Show Evaluation button. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 28: The Workspace At A Glance
Export of the evaluation, e.g. in Excel, PDF or e-mail format Dialogue for changing the limit values ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 29: Navigation And Structure In The Evaluation
ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 30: Viewing Modes In The Evaluation 06.4.1 Chart, Hourly Values
06.4.2 Trend (Options > Trend) Display of all existing ABPM evaluations of a patient in bar chart format with mean values ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 31: Comparison
06.4.4 Comparison with hourly values (Evaluation > Comparison > Hourly Values) Simplified comparison view with the hourly mean values in ABPM curves ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 32: Table
06.4.6 Table with hourly values (Evaluation > Hourly Values > Table) Simplified measurement table with the hourly mean values . ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 33: Automatic Report
Unconfirmed report with results from the automatic report. Click on Confirm to convert the unconfirmed report to a report. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 34: Unconfirmed Report
Texts button. Click on Save to apply your text modules and settings. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 35: End The Evaluation
(CD, DVD, etc.). ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 36: Product Information
(the diode of the infrared interface custo com IR flashes) In the event of faulty measurements... an error code is shown in the display, e.g. “E06” ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 37: Error Codes And Their Causes
Customer service is always required for all error codes which are not listed. Please contact your authorised custo med dealer. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 38: Limit Values For Blood Pressure Measurement
160 cm 170 cm 135 85 119 67 170 cm 180 cm 137 85 122 67 180 cm ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 39: Abbreviations In The Evaluation
(daily average value - night average value = 10 – 15 %) ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 40: Technical Data And System Requirements
Device with internal power supply Class IIa Type BF DIN EN 60601-1, DIN EN 1060-1 to 1060-4, IEC 80601-2-30 ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 41: Support
ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 42: According To Din En 60601-1-2:2007
IEC 61000-4-8 COMMENT: U is the net AC voltage before applying the test levels ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... - Page 43 ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH...
- Page 44 These guidelines may not apply in every case. The propagation of electromagnetic variables is influenced by absorptions and reflections of buildings, objects and people. ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 45: Ec Declaration Of Conformity
Ergometry Systems custo er2100 Ottobrunn, 04 June 2013 Peter Müller ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 46: Shutdown, Storage And Transport
The original packaging of custo screen 300 is recyclable (cardboard/waste paper). ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 47: Keyboard Navigation And Shortcuts In Custo Diagnostic
Quick print Ctrl Ctrl Patient main menu Options menu Ctrl Ctrl Examination main menu Open unconfirmed report ABPM with custo screen 300 and custo diagnostic | GEB 0154 – DK 1055 | Version 002 – 05.06.2013 | custo med GmbH... - Page 48 GmbH Leibnizstr. 7 85521 Ottobrunn Germany Phone: +49 (0)89 710 98 - 00 Fax: +49 (0)89 710 98 - 10 E-mail: info@customed.de Internet: www.customed.de...
