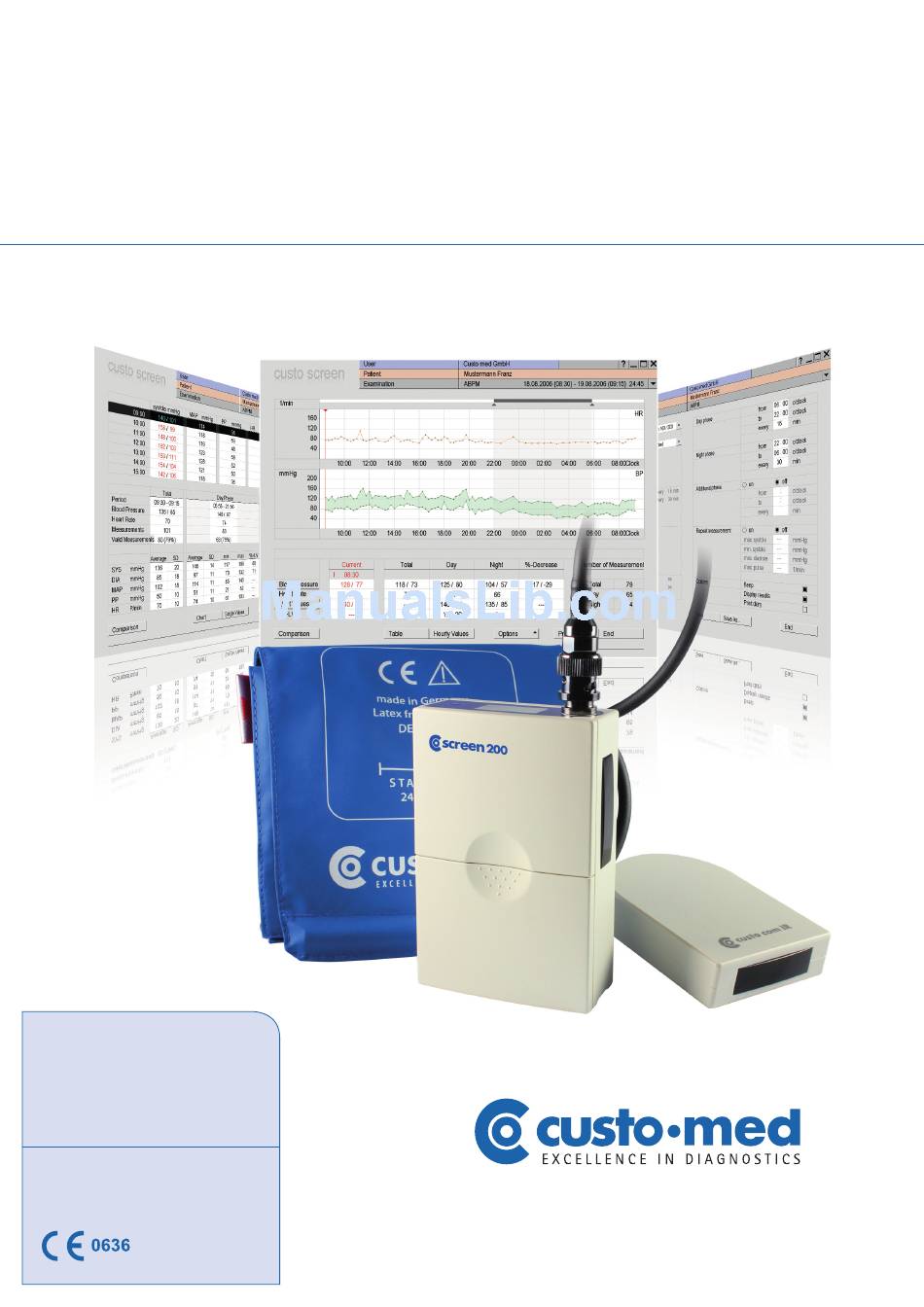

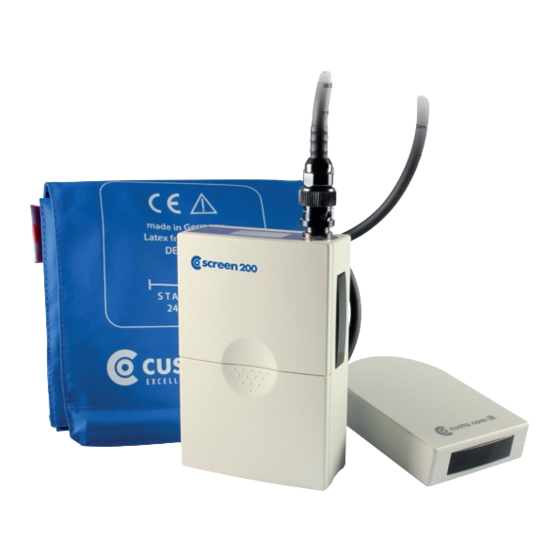

- Page 1 Operating Manual ABPM with custo screen 100/200 and custo diagnostic Operating characteristics: > custo diagnostic 3.8 and higher > for Windows® GEB 0141 – DK 0953 Version 002 – 05.06.2013...
- Page 3 This Operating Manual may not be copied in its entirety or in part, duplicated in any form or by any means or translated into another language without the prior written consent of custo med GmbH. The manufacturer reserves the right to change the information in this Operating Manual without prior notice.
-
Page 4: Table Of Contents
................ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... - Page 5 ....................ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 6: Introduction
The device is not suited for small children or newborns as well as for the unsupervised use with unconscious patients. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 7: Symbols Used In This Operating Manual
Words highlighted in colour indicate buttons or click paths Words highlighted for the corresponding program point, e.g. Examination, ABPM in colour.. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 8: Safety Notes
For users outside of Germany, the respective national accident prevention measures, regulations and requirements apply. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 9: Safety Installations And Safe Working
The device must be protected against the penetration of moisture, dust or dirt and also against mechanical influences such as damage due to dropping or damage while in transit. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... - Page 10 In no case use damaged batteries or accumulators. If custo screen 100/200 stands idle for a longer time, remove the batteries from the device. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH...
- Page 11 Set up your operating system in such a way to prevent the PC from being switched off either accidentally or automatically during the examination (standby mode/idle mode). ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 12: Information On Emc (Electromagnetic Compatibility)
For the ABPM recorder custo screen 100/200 metrological controls are pre- scribed every two years. Please contact your authorised custo med dealer. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 13: Disclaimer
This is the only way to ensure the safe and trouble- free operation of your device. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 14: Device Description, Basics Of Putting Into Operation
USB cable for connection to the PC of custo screen 100/200 and PC (included in delivery when purchasing a system) ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 15: Operating The Device
(Errors see chapter 07.2 Error Codes and their Causes) Port for blood pressure cuff ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 16: Custo Diagnostic - Basic Program Structure
In this menu you can also go to the Settings area. Cross-program, examination- related and user-specific settings can be made here. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 17: Connection And Selection Of Device
100/200. In the field Connection, custo com IR must be specified. Your inputs will be taken over with Save. Your device is ready for operation. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 18: Hygiene
Be sure that all safety precautions regarding aeration after EtO exposure are followed. Never autoclave. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 19: Recommended Cleaning And Disinfecting Agents
Disinfectants (custo screen 100/200, carrying case, belt): All alcohol-based disinfectants (e.g. propanol, ethanol) approved for medical use. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 20: Carrying Out An Examination
Attach the carrying bag to the carrying belt. Apply the carrying belt with the patient. The bag should be positioned on the patient’s right hip. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... - Page 21 ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 22: Preparing The Recorder For Recording
New Patient button . Enter the patient‘s data and click on Save . ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... - Page 23 The settings and patient data are being transferred to the recorder. The recorder is ready for recording. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 24: Attaching The Recorder To The Patient
Start custo diagnostic and log on with your user name and password if required. Click on Examina- tion , ABPM , Download Data . ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 25: Control The Evaluation
Click on Confirm to close the examination. Final work steps Remove carrying belt, tube, cuff and fixing aids from the patient. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 26: Working With The Evaluation
If you want to use the same search criteria for the next search, activate the Save selection option. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... - Page 27 Show Evaluation button. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 28: The Workspace At A Glance
Export of the evaluation, e.g. in Excel, PDF or email format Dialogue box for changing the limit values ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 29: Navigation Concept, Structure Of The Evaluation
ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 30: Evaluation View Modes
06.4.2 Trend (Options > Trend) Display of all existing ABPM evaluations of a patient in bar chart format with mean values ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 31: Comparison
06.4.4 Comparison with Hourly Values (Evaluation > Comparison > Hourly Values) Simplified comparison view with mean hour values in ABPM curves ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 32: Table
06.4.6 Table with Hourly Values (Evaluation > Table > Hourly Values) Simplified measurement table with mean hour values . ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 33: Automatic Report
Unconfirmed report with results from the automatic report. Click on Confirm to convert the unconfirmed report to a report. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 34: Confirming The Evaluation
Modules button. Click on Save to apply your report modules and settings. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 35: Ending The Evaluation
Make sure that regular data back- ups are made within your archive in order to avoid loss of data. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 36: Product Information
In the event of faulty measurements... an error code is shown in the display, e. g. “E4” ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 37: Error Codes And Their Causes
Customer service is always required for all error codes which are not listed. Please contact your authorised custo med dealer. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 38: Limit Values For Blood Pressure Measurement
160 cm 170 cm 135 85 119 67 170 cm 180 cm 137 85 122 67 180 cm ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 39: Abbreviations In The Evaluation
(daily average value - night average value = 10 – 15 %) ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 40: Technical Data And System Requirements
250 g (with batteries) Classification Device with internal power supply Class II a Type BF IEC 60601-1 ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 41: Support
ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 42: Manufacturer Declaration Regarding Emc
IEC 61000-4-8 business and clinical environment. COMMENT: U is the net AC voltage before applying the test levels ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... - Page 43 If unusual performance features are being observed, it may be necessary to take additional measures, for example reorienting or relocating the device. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH...
- Page 44 These guidelines may not apply in every case. The propagation of electromagnetic factors is influenced by absorptions and reflections of buildings, objects and people. ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH...
-
Page 45: Ec Declaration Of Conformity
Ergometry Systems custo er2100 Ottobrunn, 04 June 2013 Peter Müller ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... -
Page 46: Putting Out Of Operation, Storage, Transport
The original packing of custo screen 100/200 is recyclable (cardboard/waste paper). ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH... - Page 47 ABPM with custo screen 100/200 and custo diagnostic | GEB 0141 – DK 0953 | Version 002 – 05.06.2013 | custo med GmbH...
- Page 48 GmbH Leibnizstrasse 7 85521 Ottobrunn Germany Phone: +49 (0)89 710 98 - 00 Fax: +49 (0)89 710 98 - 10 E-mail: info@customed.de Internet: www.customed.de...
