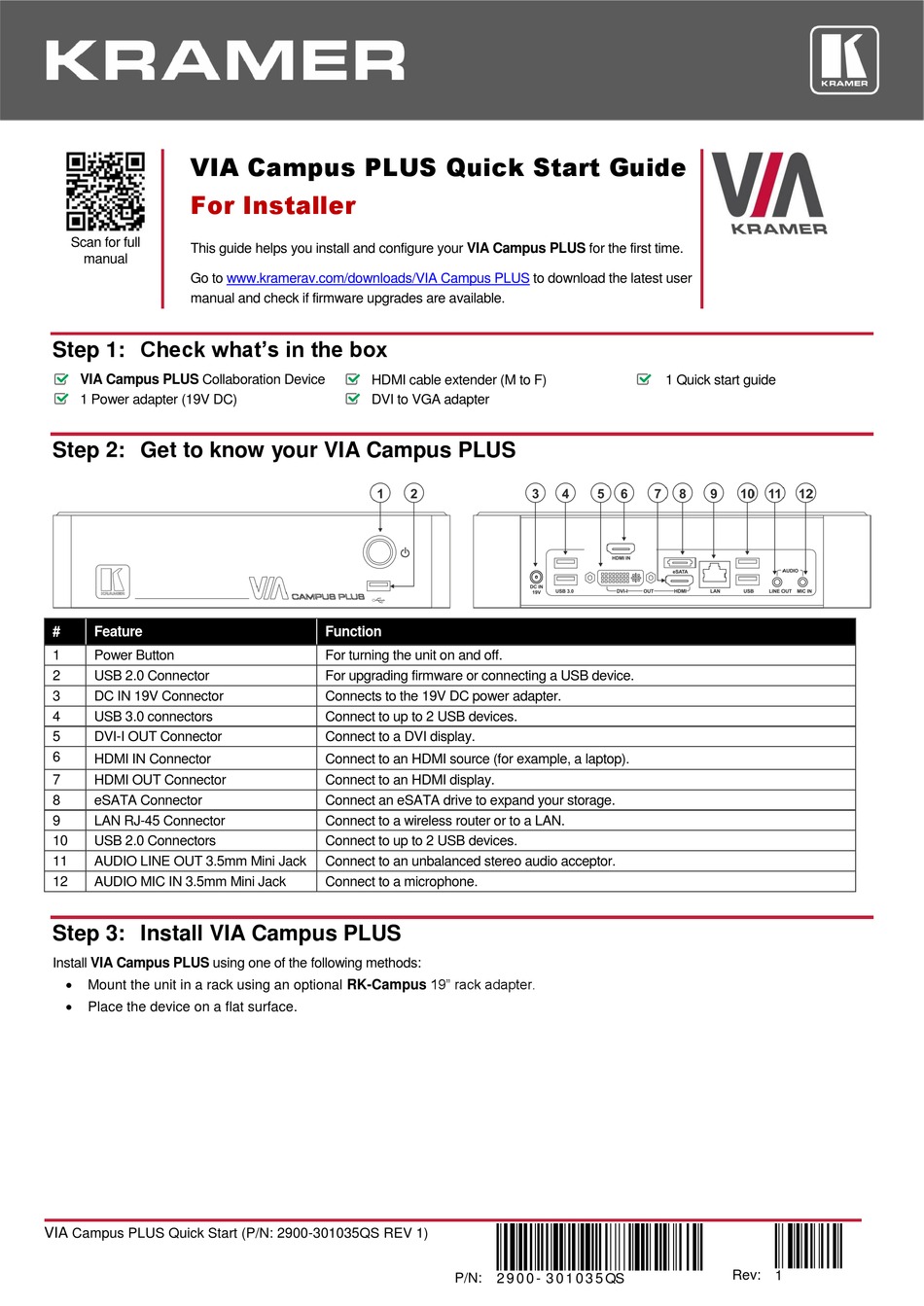

VIA Campus PLUS Quick Start Guide
For Installer
Scan for full
This guide helps you install and configure your VIA Campus PLUS for the first time.
manual
Go to
manual and check if firmware upgrades are available.
Step 1: Check what's in the box
VIA Campus PLUS Collaboration Device
1 Power adapter (19V DC)

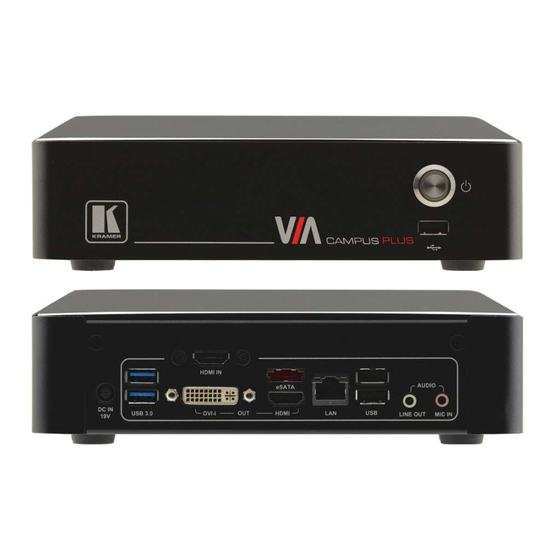

Step 2: Get to know your VIA Campus PLUS
#
Feature
1
Power Button
2
USB 2.0 Connector
3
DC IN 19V Connector
4
USB 3.0 connectors
5
DVI-I OUT Connector
6
HDMI IN Connector
7
HDMI OUT Connector
8
eSATA Connector
9
LAN RJ-45 Connector
10
USB 2.0 Connectors
11
AUDIO LINE OUT 3.5mm Mini Jack
12
AUDIO MIC IN 3.5mm Mini Jack
Step 3: Install VIA Campus PLUS
Install VIA Campus PLUS using one of the following methods:
Mount the unit in a rack using an optional RK-Campus 19" rack adapter.
Place the device on a flat surface.
VIA
Campus PLUS Quick Start (P/N: 2900-301035QS REV 1)
www.kramerav.com/downloads/VIA Campus PLUS
HDMI cable extender (M to F)
DVI to VGA adapter
Function
For turning the unit on and off.
For upgrading firmware or connecting a USB device.
Connects to the 19V DC power adapter.
Connect to up to 2 USB devices.
Connect to a DVI display.
Connect to an HDMI source (for example, a laptop).
Connect to an HDMI display.
Connect an eSATA drive to expand your storage.
Connect to a wireless router or to a LAN.
Connect to up to 2 USB devices.
Connect to an unbalanced stereo audio acceptor.
Connect to a microphone.
to download the latest user
P/N:
2 9 0 0 - 3 0 1 0 3 5 QS
1 Quick start guide
Rev: 1
