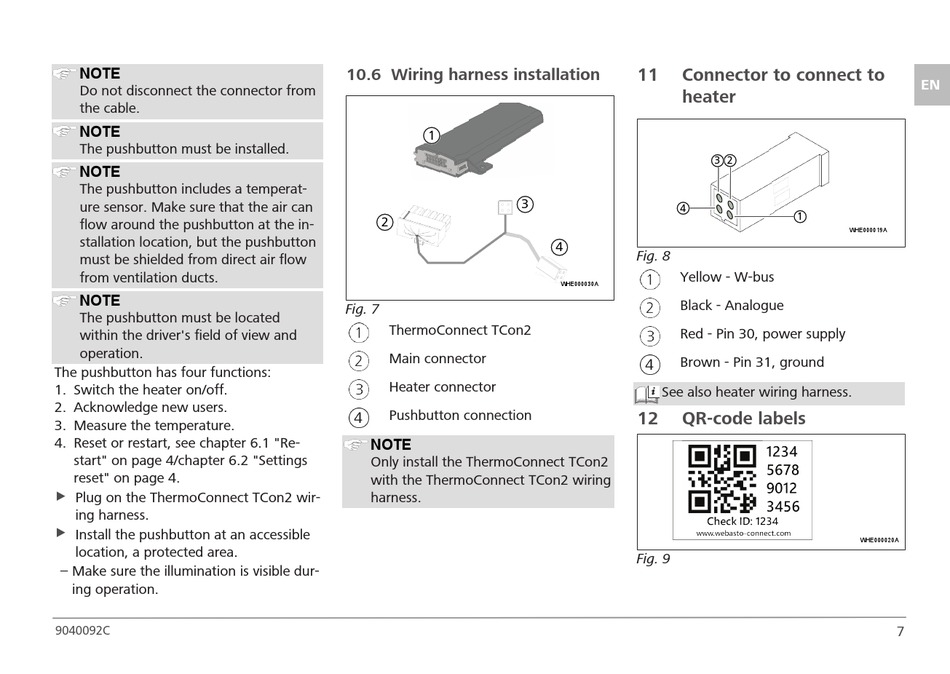

NOTE
Do not disconnect the connector from
the cable.
NOTE
The pushbutton must be installed.
1
NOTE
The pushbutton includes a temperat-
ure sensor. Make sure that the air can
flow around the pushbutton at the in-
stallation location, but the pushbutton
must be shielded from direct air flow
from ventilation ducts.
NOTE
The pushbutton must be located
within the driver's field of view and
operation.
The pushbutton has four functions:
1. Switch the heater on/off.
2. Acknowledge new users.
3. Measure the temperature.
4. Reset or restart, see chapter 6.1 "Re-
start" on page 4/chapter 6.2 "Settings
reset" on page 4.
u Plug on the ThermoConnect TCon2 wir-
ing harness.
u Install the pushbutton at an accessible
location, a protected area.
– Make sure the illumination is visible dur-
ing operation.
9040092C
10.6 Wiring harness installation
1
3
2
Fig. 7
ThermoConnect TCon2
Main connector
Heater connector
Pushbutton connection
NOTE
Only install the ThermoConnect TCon2
with the ThermoConnect TCon2 wiring
harness.
11 Connector to connect to
heater
3 2
4
4
Fig. 8
Yellow - W-bus
WHE000030A
Black - Analogue
Red - Pin 30, power supply
Brown - Pin 31, ground
See also heater wiring harness.
1
12

QR-code labels

4
Fig. 9
3
EN
1
WHE000019A
WHE000020A
