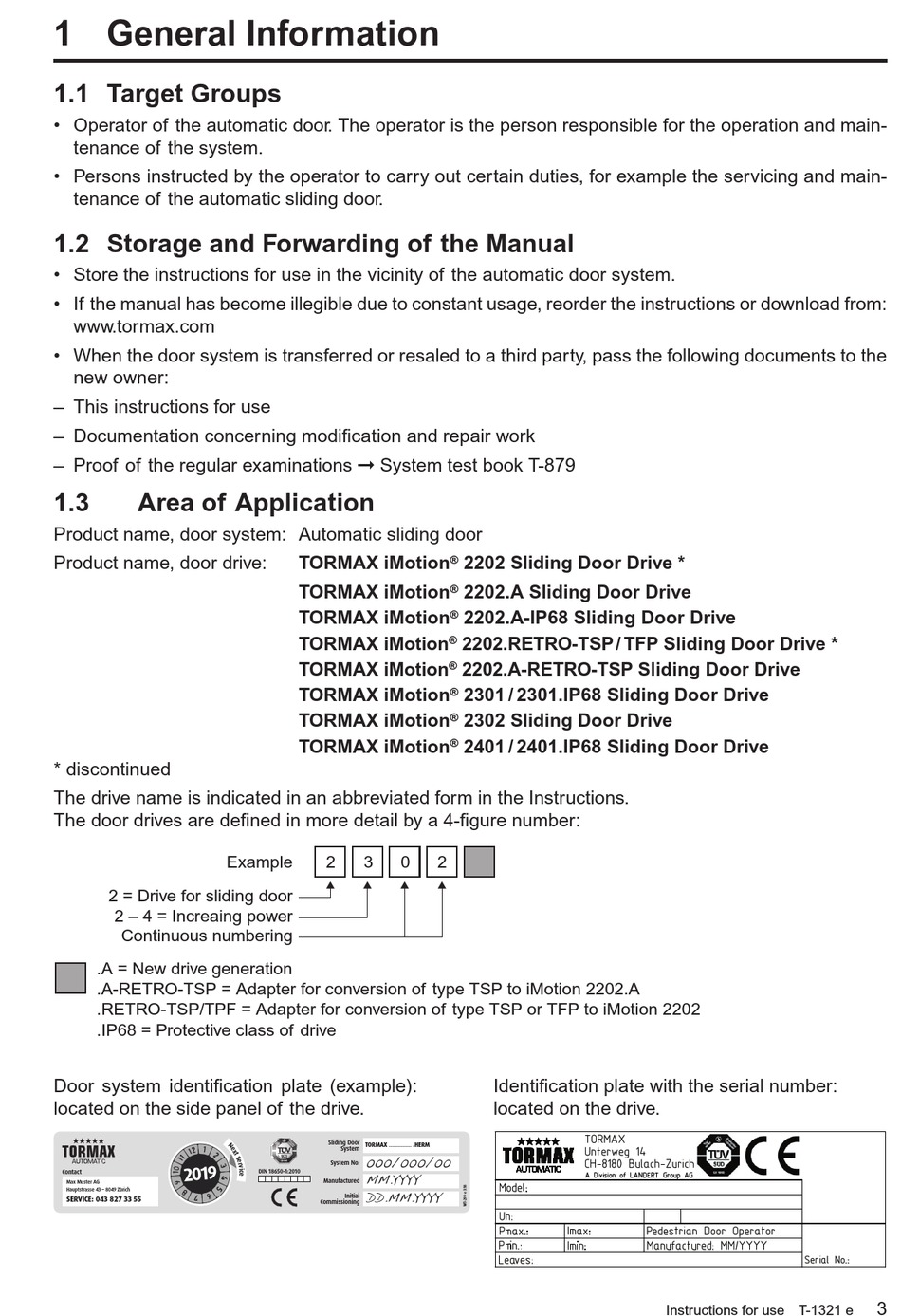

1 General Information

1.1 Target Groups

• Operator of the automatic door. The operator is the person responsible for the operation and main-
tenance of the system.
• Persons instructed by the operator to carry out certain duties, for example the servicing and main-
tenance of the automatic sliding door.

1.2 Storage and Forwarding of the Manual

• Store the instructions for use in the vicinity of the automatic door system.
• If the manual has become illegible due to constant usage, reorder the instructions or download from:
www.tormax.com
• When the door system is transferred or resaled to a third party, pass the following documents to the
new owner:
– This instructions for use
– Documentation concerning modification and repair work
– Proof of the regular examinations  System test book T-879
1.3 Area of Application
Product name, door system: Automatic sliding door
Product name, door drive:
* discontinued
The drive name is indicated in an abbreviated form in the Instructions.
The door drives are defined in more detail by a 4-figure number:
2 = Drive for sliding door
2 – 4 = Increaing power
Continuous numbering
.A = New drive generation
.A-RETRO-TSP = Adapter for conversion of type TSP to iMotion 2202.A
.RETRO-TSP/TPF = Adapter for conversion of type TSP or TFP to iMotion 2202
.IP68 = Protective class of drive
Door system identification plate (example):
located on the side panel of the drive.
Contact
Max Muster AG
Hauptstrasse 43 – 8049 Zürich
SERVICE: 043 827 33 55
TORMAX iMotion
TORMAX iMotion
TORMAX iMotion
TORMAX iMotion
TORMAX iMotion
TORMAX iMotion
TORMAX iMotion
TORMAX iMotion
Example 2 3
Sliding Door
TORMAX ............... .HERM
System
000/000/00
System No.
MM.YYYY
DIN 18650-1:2010
Manufactured
DD.MM.YYYY
Initial
Commissioning
2202 Sliding Door Drive *
®
2202.A Sliding Door Drive
®
2202.A-IP68 Sliding Door Drive
®
2202.RETRO-TSP / TFP Sliding Door Drive *
®
2202.A-RETRO-TSP Sliding Door Drive
®
2301 / 2301.IP68 Sliding Door Drive
®
2302 Sliding Door Drive
®
2401 / 2401.IP68 Sliding Door Drive
®
0 2
Identification plate with the serial number:
located on the drive.
Instructions for use T-1321 e
