Moxa Technologies MGate 5105-MB-EIP Quick Installation Manual

MGate 5105-MB-EIP
Quick Installation Guide
Second Edition, June 2014
Overview

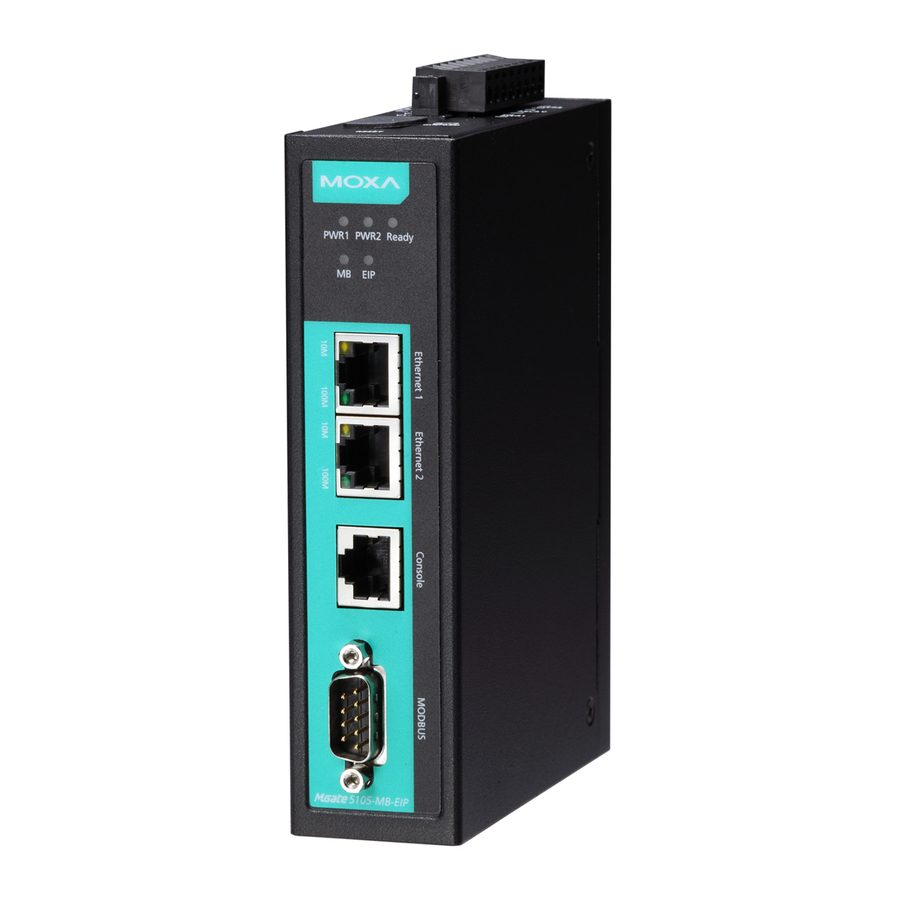

The MGate 5105-MB-EIP is an industrial Ethernet gateway for
Modbus RTU/ASCII/TCP and EtherNet/IP network communication.
Package Checklist
Before installing the MGate 5105-MB-EIP, verify that the package
contains the following items:
• 1 MGate 5105-MB-EIP gateway
• RJ45 to DB9 cable (for console use)
• Documentation and software CD
• Quick installation guide
• Warranty card
Optional Accessories:
• DR-45-24: 45W/2A DIN rail 24 VDC power supply with
universal 85 to 264 VAC input
• DR-75-24: 75W/3.2A DIN rail 24 VDC power supply with
universal 85 to 264 VAC input
• DR-120-24: 120W/5A DIN rail 24 VDC power supply with 88 to
132 VAC/176 to 264 VAC input by switch
• WK-36-02: Wall mounting kit
• Mini DB9F-to-TB Adaptor: DB9 female to terminal block
adapter
Please notify your sales representative if any of the above items
are missing or damaged.
P/N: 1802051050011
– 1 –

Hardware Introduction

LED Indicators
LED Color Description
Ready Off Power is off or fault condition exists
Green Steady: Power is on and the MGate is
functioning normally
Blinking: The MGate has been located by
the MGate Manager's Location function
Red Steady: Power is on and the MGate is
booting up
Blinking slowly: Indicates an IP conflict, or
DHCP or BOOTP server is not responding
properly
Flashing quickly: microSD card failed
EIP Off No I/O data is exchanged
(Scanner)
Green Steady: I/O data is exchanged with all
devices
Blinking: I/O data is exchanged with at
least one device
(Not all configured devices can
communicate with gateway)
EIP Off No I/O data is exchanged
(Adapter)
Green I/O data is exchanged with all devices
MB Off No communication with Modbus device
Green Modbus communication progress
Red Communication error
When MGate 5105 acts as Master:
1. Slave device returned an error
(exception)
2. Received frame error (parity error,
checksum error)
3. Timeout (slave device no
response)
When MGate 5105 acts as Slave:
1. Received invalid function code
2. Master accessed invalid register
address or coil addresses
3. Received frame error (parity error,
checksum error)
– 2 –

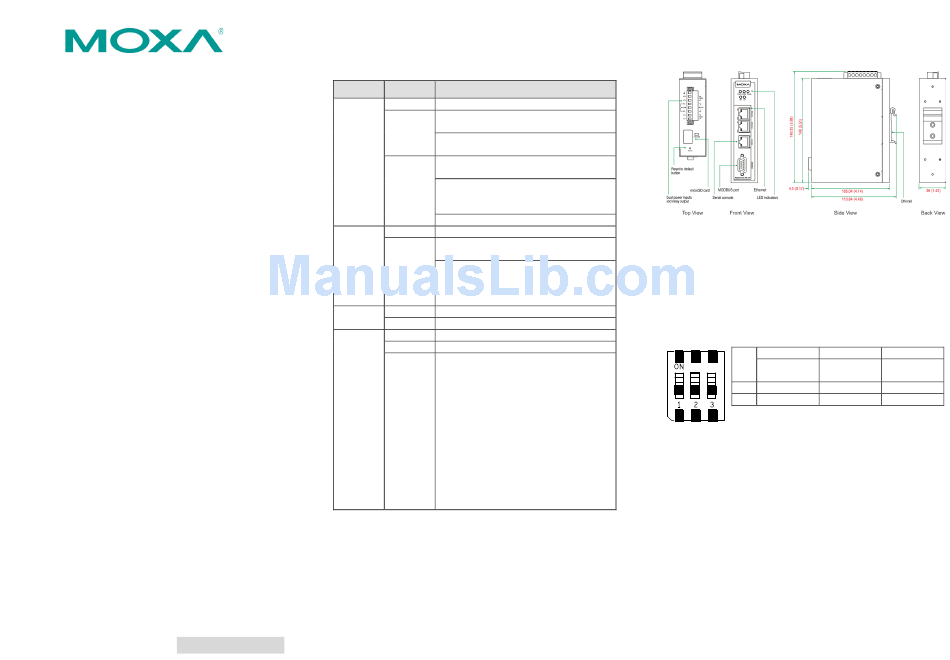

Dimensions
Reset Button
Restore the MGate to factory default settings by using a pointed
object (such as a straightened paper clip) to hold the reset button
down until the Ready LED stops blinking (approx. 5 seconds).
Pull-high, Pull-low, and Terminator for RS-485
Remove the MGate 5105-MB-EIP's top cover and you will find DIP
switches to adjust each serial port's pull-high resistor, pull-low
resistor, and terminator.
SW 1 2
Pull-high Pull-low
resistor resistor
ON 1 kΩ 1 kΩ
OFF 150 kΩ* 150 kΩ*
*Default
– 3 –
Unit: mm (inch)
3
Terminator
120 Ω
–*
