MGate 5101-PBM-MN
Quick Installation Guide
First Edition, August 2012
Overview
The MGate 5101-PBM-MN is an industrial Ethernet gateway for
PROFIBUS and Modbus TCP network communication.
Package Checklist
Before installing the MGate 5101-PBM-MN, verify that the package
contains the following items:
• 1 MGate 5101-PBM-MN gateway
• Documentation & Software CD
• Quick Installation Guide
• Product Warranty Statement
Optional Accessories:
• DR-45-24: 45W/2A DIN-rail 24 VDC power supply with
universal 85 to 264 VAC input.
• DR-75-24: 75W/3.2A DIN-rail 24 VDC power supply with
universal 85 to 264 VAC input.
• DR-120-24: 120W/5A DIN-rail 24 VDC power supply with 88 to
132 VAC/176 to 264 VAC input by switch.
• WK-36-01: Wall mounting kit
Please notify your sales representative if any of the above items is
missing or damaged.
P/N: 1802051010010
– 1 –

Hardware Introduction

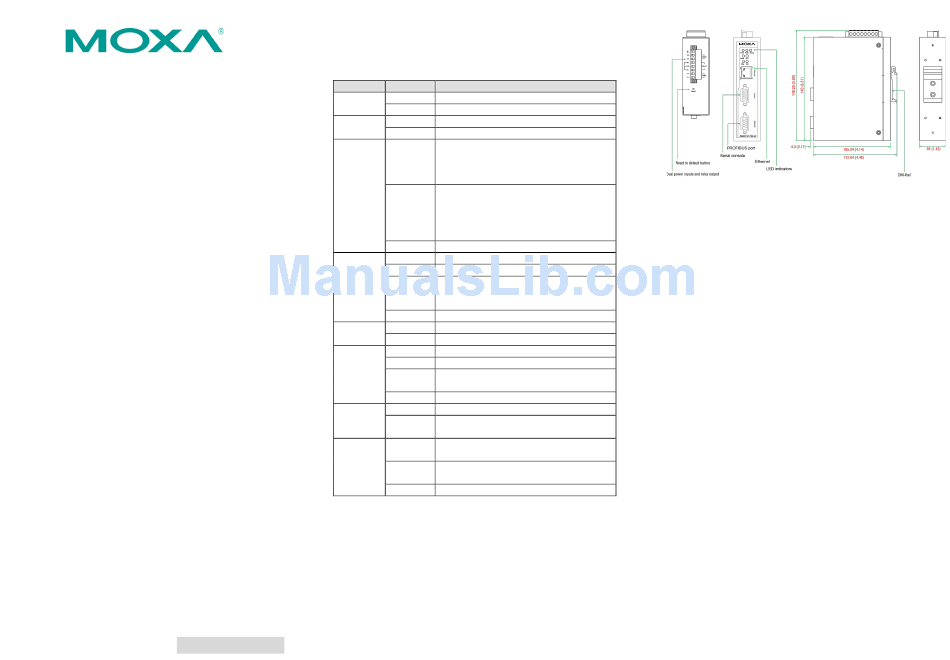

LED Indicators
LED Color Function
Green Power is on
PWR1
Off Power is off
Green Power is on
PWR2
Off Power is off
Steady on: Power is on and the MGate is
functioning normally
Green
Blinking: The MGate has been located by
the MGate Manager's Location function
Steady on: Power is on and the MGate is
Ready
booting up
Red Blinking: Indicates an IP conflict, or DHCP
or BOOTP server is not responding
properly
Off Power is off or fault condition exists
Off No data exchange
Green Data exchange with all slaves
Data exchange with at least one slave (not
COMM
Green,
all configured slaves can communicate
flashing
with gateway)
Red Bus control error
Off No PROFIBUS configuration
CFG
Green PROFIBUS configuration OK
Off PROFIBUS master is offline
Red PROFIBUS master is in STOP mode
PBM Green,
PROFIBUS master is in CLEAR mode
flashing
Green PROFIBUS master is in OPERATE mode
Green Gateway holds the PROFIBUS token
TOK Gateway is waiting for the PROFIBUS
Off
token
Steady: 10Mbps, no data is transmitting
Amber
Blinking: 10Mbps, data is transmitting
Ethernet Steady: 100Mbps, no data is transmitting
Green
Blinking: 100Mbps, data is transmitting
Off Ethernet cable is disconnected
– 2 –
Reset Button
The reset button is used to load factory defaults. Use a pointed
object such as a straightened paper clip to hold the reset button
down for five seconds. Release the reset button when the Ready
LED stops blinking.
Hardware Installation Procedure
STEP 1: Connect the power adaptor. Connect the 12-48 VDC
power line or DIN-rail power supply with the MGate
5101-PBM-MN device's terminal block.
STEP 2: Use a PROFIBUS cable to connect the unit to PROFIBUS
slave device.
STEP 3: Connect the unit to the Modbus TCP device.
STEP 4: The MGate 5101-PBM-MN series is designed to be
attached to a DIN-rail or mounted on a wall. For DIN-rail
mounting, push down the spring and properly attach it to
the DIN-rail until it "snaps" into place. For wall mounting,
install the wall mount kit (optional) first, and then screw
the device onto the wall. The following figure illustrates
the two mounting options:
