Moxa Technologies MGate 5102-PBM-PN Quick Installation Manual

MGate 5102-PBM-PN
Quick Installation Guide
First Edition, January 2013
Overview
The MGate 5102-PBM-PN is an industrial Ethernet gateway for
PROFIBUS and PROFINET network communication.
Package Checklist
Before installing the MGate 5102-PBM-PN, verify that the package
contains the following items:
• 1 MGate 5102-PBM-PN gateway
• RJ45 to DB9 cable (for console use)
• Documentation and software CD
• Quick installation guide
• Warranty card
Optional Accessories:
• DR-45-24: 45W/2A DIN rail 24 VDC power supply with
universal 85 to 264 VAC input
• DR-75-24: 75W/3.2A DIN rail 24 VDC power supply with
universal 85 to 264 VAC input
• DR-120-24: 120W/5A DIN rail 24 VDC power supply with 88 to
132 VAC/176 to 264 VAC input by switch
• WK-36-01: Wall mounting kit
Please notify your sales representative if any of the above items
are missing or damaged.
P/N: 1802051020010
– 1 –

Hardware Introduction

LED Indicators
LED Color Function
Green Power is on
PWR1
Off Power is off
Green Power is on
PWR2
Off Power is off
Steady on: Power is on and the MGate is
functioning normally
Green
Blinking: The MGate has been located by the
MGate Manager's Location function
Steady on: Power is on and the MGate is
Ready
booting up
Red Blinking: Indicates an IP conflict, or DHCP or
BOOTP server is not responding properly
Fast blinking: microSD card failed
Off Power is off or fault condition exists
Steady on: No data exchange
Green Blinking: Data exchange with at least one
COMM slave
Red Data exchange with all slaves
Off Bus control error
Green PROFIBUS configuration OK
CFG
Off No PROFIBUS configuration
Green Gateway holds the PROFIBUS token
TOK
Off Gateway is waiting for the PROFIBUS token
Steady on: PROFIBUS master is in OPERATE
mode
Green
Blinking: PROFIBUS master is in CLEAR
PBM
mode
Red PROFIBUS master is in STOP mode
Off PROFIBUS master is offline
Steady on: PROFINET I/O is connected and
controller is in RUN mode
Green
PN Blinking: PROFINET I/O is connected but
controller is in STOP mode
Off No connection with IO Controller
Steady: 10 Mbps, no data is transmitting
Amber
Blinking: 10 Mbps, data is transmitting
Ethernet Steady: 100 Mbps, no data is transmitting
Green
Blinking: 100 Mbps, data is transmitting
Off Ethernet cable is disconnected
– 2 –

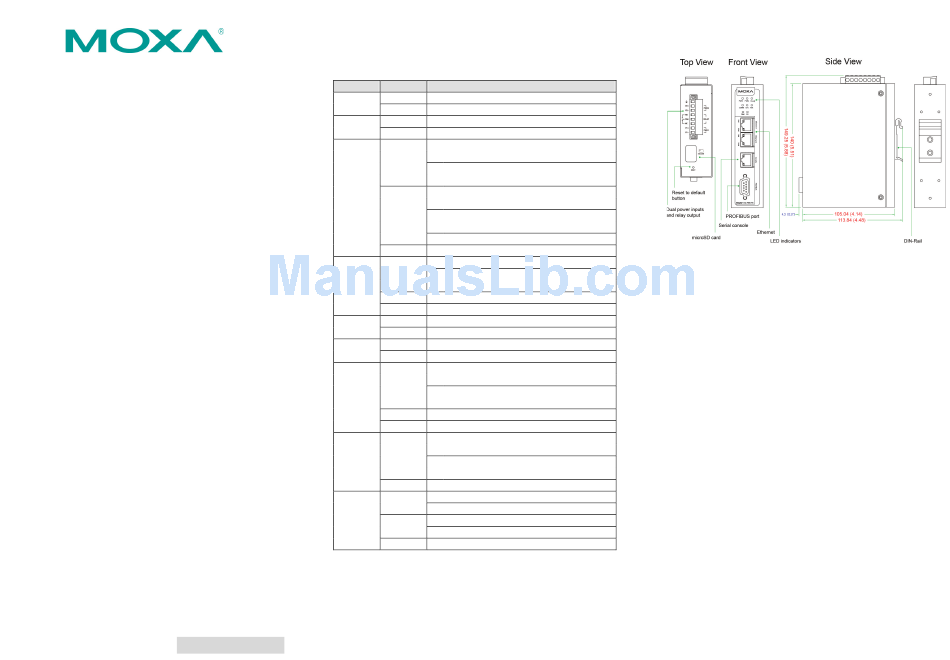

Dimensions
Reset Button
The reset button is used to load factory defaults. Use a pointed
object such as a straightened paper clip to hold the reset button in
for five seconds. Release the reset button when the Ready LED
stops blinking.
