Y/G
Motor
characteristics
Power supply
120 VAC
Frequency
60 Hz
Power
240 W
absorption
Motor
resistance (Ohms)
37.7
BU-R
30.3
BU-GY
BU-BK
28.8 (max)
BU-W
45.1 (min)
Room
73.4˚F (23˚C)
temperature
12

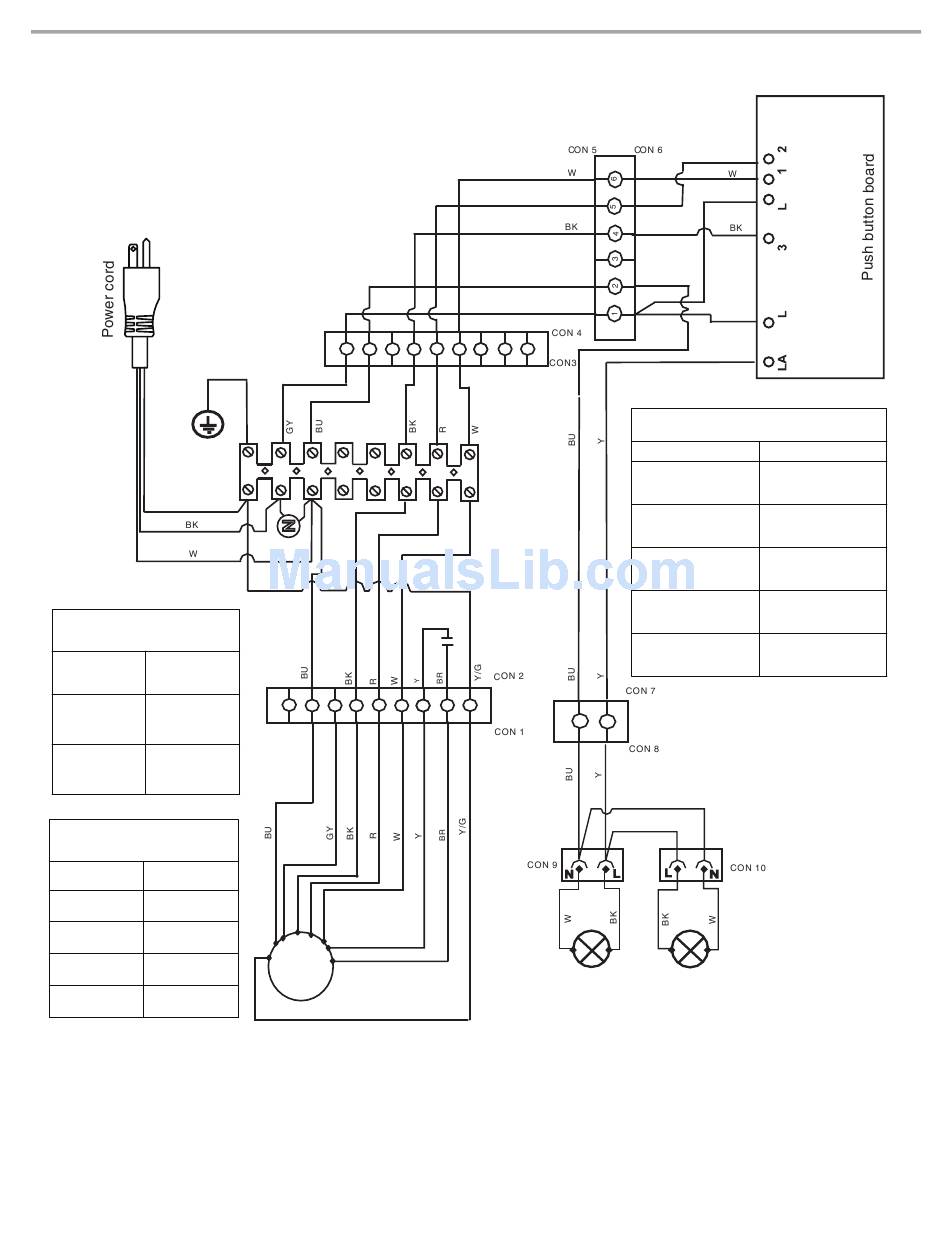

WIRING DIAGRAM
1
2
3
Y/G
Varisitor
5
6
1
2
3
4
M
R
BU
GY
5
6
7
4
8
9
Capacitor
7
8
9
2
RED
GY
GY
Switch operation
Position
No connection
Off
Lamps
Low speed
Med speed
High speed
1
BU
Y
Connection
GY/Y
(L - LA)
GY/W
(L - 1)
GY/R
(L - 2)
GY/BK
(L - 3)
Table of
