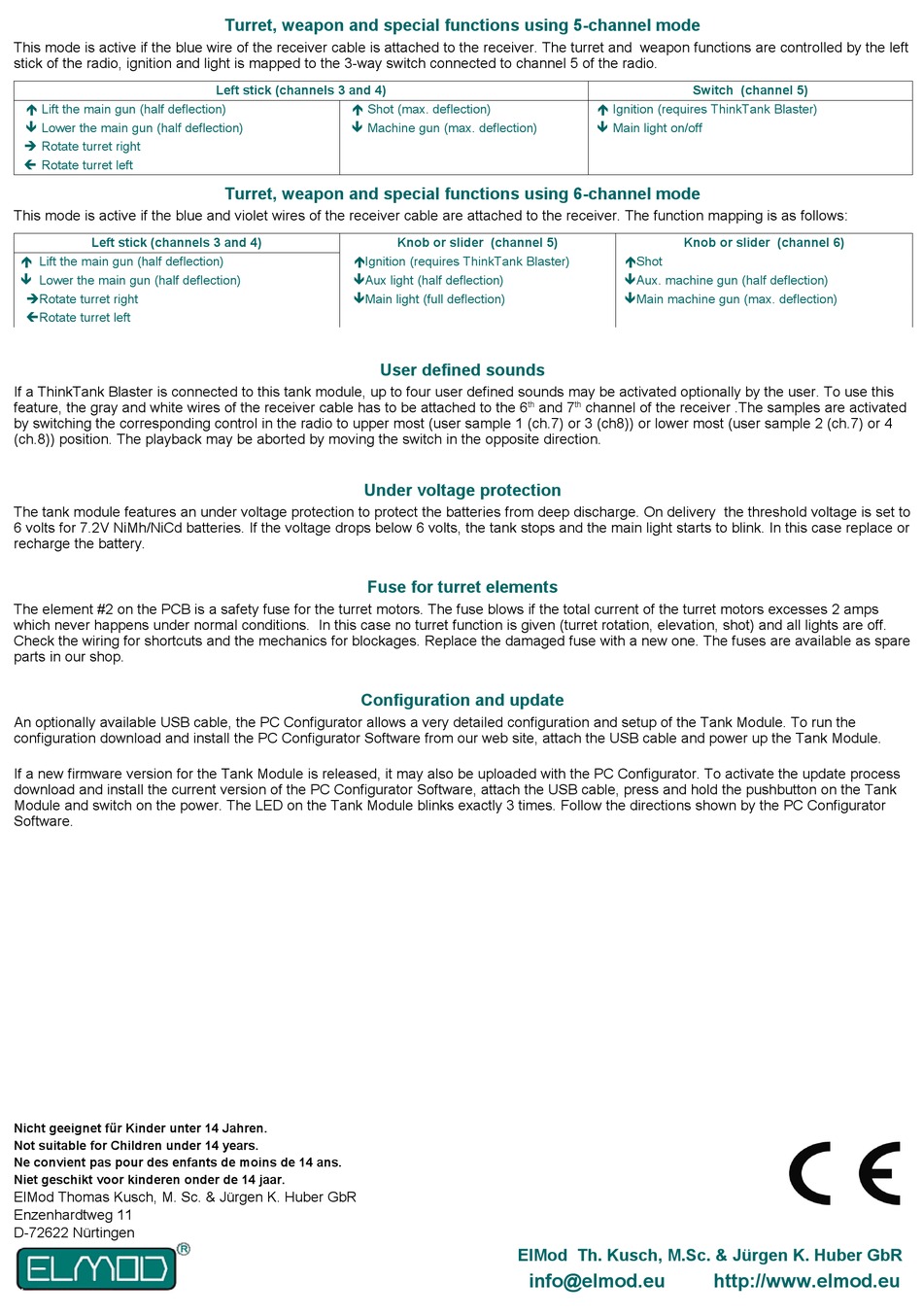

This mode is active if the blue wire of the receiver cable is attached to the receiver. The turret and weapon functions are controlled by the left

stick of the radio, ignition and light is mapped to the 3-way switch connected to channel 5 of the radio.

é Lift the main gun (half deflection)

ê Lower the main gun (half deflection)

è Rotate turret right

ç Rotate turret left

This mode is active if the blue and violet wires of the receiver cable are attached to the receiver. The function mapping is as follows:

Left stick (channels 3 and 4)

é Lift the main gun (half deflection)

ê Lower the main gun (half deflection)

èRotate turret right

çRotate turret left

If a ThinkTank Blaster is connected to this tank module, up to four user defined sounds may be activated optionally by the user. To use this

feature, the gray and white wires of the receiver cable has to be attached to the 6

by switching the corresponding control in the radio to upper most (user sample 1 (ch.7) or 3 (ch8)) or lower most (user sample 2 (ch.7) or 4

(ch.8)) position. The playback may be aborted by moving the switch in the opposite direction.

The tank module features an under voltage protection to protect the batteries from deep discharge. On delivery the threshold voltage is set to

6 volts for 7.2V NiMh/NiCd batteries. If the voltage drops below 6 volts, the tank stops and the main light starts to blink. In this case replace or

recharge the battery.

The element #2 on the PCB is a safety fuse for the turret motors. The fuse blows if the total current of the turret motors excesses 2 amps

which never happens under normal conditions. In this case no turret function is given (turret rotation, elevation, shot) and all lights are off.

Check the wiring for shortcuts and the mechanics for blockages. Replace the damaged fuse with a new one. The fuses are available as spare

parts in our shop.

An optionally available USB cable, the PC Configurator allows a very detailed configuration and setup of the Tank Module. To run the

configuration download and install the PC Configurator Software from our web site, attach the USB cable and power up the Tank Module.

If a new firmware version for the Tank Module is released, it may also be uploaded with the PC Configurator. To activate the update process

download and install the current version of the PC Configurator Software, attach the USB cable, press and hold the pushbutton on the Tank

Module and switch on the power. The LED on the Tank Module blinks exactly 3 times. Follow the directions shown by the PC Configurator

Software.
