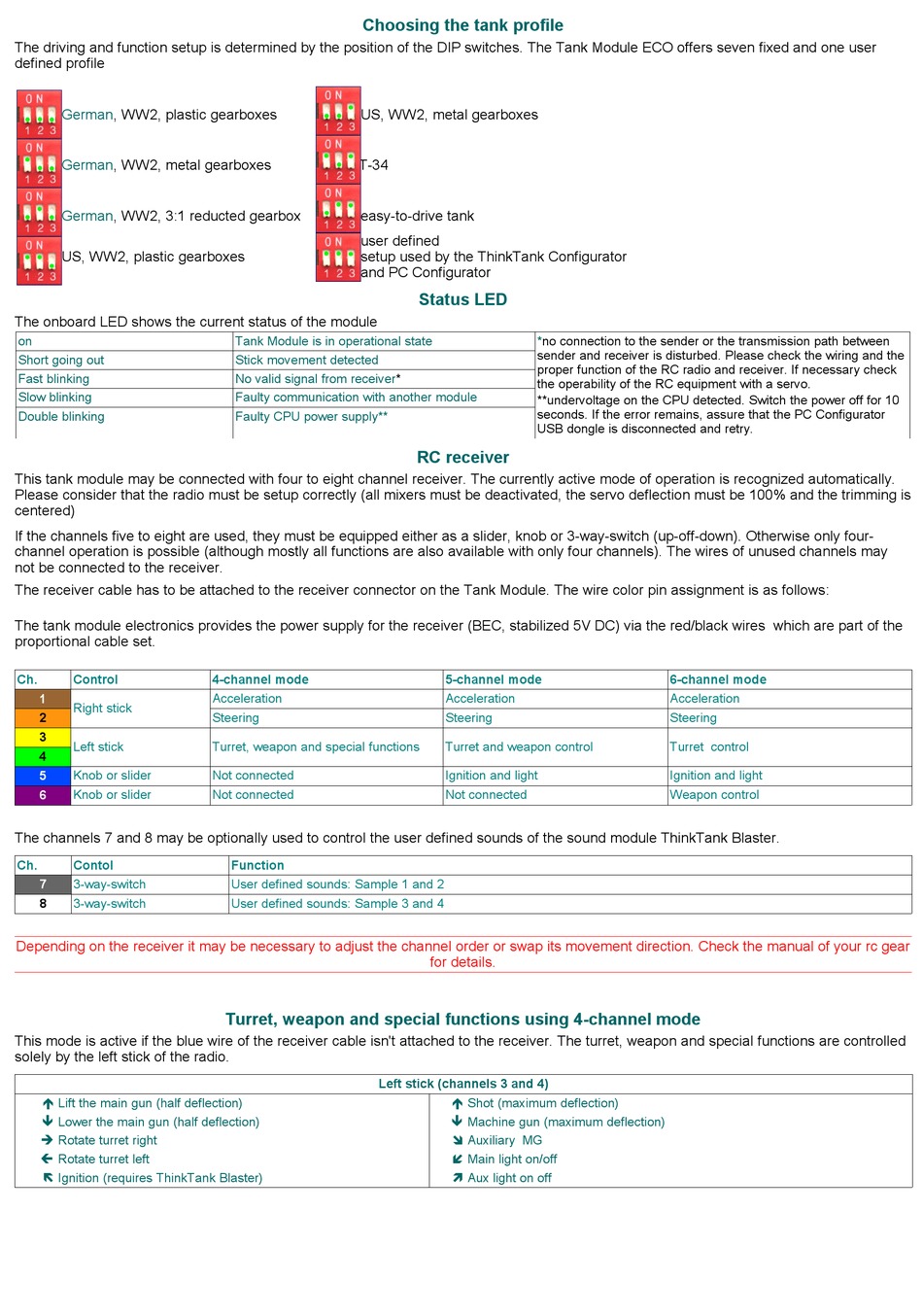

Choosing The Tank Profile; Status Led; Rc Receiver; Turret, Weapon And Special Functions Using 4-Channel Mode - ElMod ThinkTank Tank Module PRO II Instructions For Assembly And Handling

The driving and function setup is determined by the position of the DIP switches. The Tank Module ECO offers seven fixed and one user
defined profile
German, WW2, plastic gearboxes
German, WW2, metal gearboxes
German, WW2, 3:1 reducted gearbox
US, WW2, plastic gearboxes
The onboard LED shows the current status of the module
on
Short going out
Fast blinking
Slow blinking
Double blinking
This tank module may be connected with four to eight channel receiver. The currently active mode of operation is recognized automatically.
Please consider that the radio must be setup correctly (all mixers must be deactivated, the servo deflection must be 100% and the trimming is
centered)
If the channels five to eight are used, they must be equipped either as a slider, knob or 3-way-switch (up-off-down). Otherwise only four-
channel operation is possible (although mostly all functions are also available with only four channels). The wires of unused channels may
not be connected to the receiver.
The receiver cable has to be attached to the receiver connector on the Tank Module. The wire color pin assignment is as follows:
The tank module electronics provides the power supply for the receiver (BEC, stabilized 5V DC) via the red/black wires which are part of the
proportional cable set.
Ch. Control
1
Right stick
2
3
Left stick
4
Knob or slider
5
Knob or slider
6
The channels 7 and 8 may be optionally used to control the user defined sounds of the sound module ThinkTank Blaster.
Ch. Contol
7 3-way-switch
8 3-way-switch
Depending on the receiver it may be necessary to adjust the channel order or swap its movement direction. Check the manual of your rc gear
This mode is active if the blue wire of the receiver cable isn't attached to the receiver. The turret, weapon and special functions are controlled
solely by the left stick of the radio.
é Lift the main gun (half deflection)
ê Lower the main gun (half deflection)
è Rotate turret right
ç Rotate turret left
 Ignition (requires ThinkTank Blaster)

Choosing the tank profile

US, WW2, metal gearboxes
T-34
easy-to-drive tank
user defined
setup used by the ThinkTank Configurator
and PC Configurator
Tank Module is in operational state
Stick movement detected
No valid signal from receiver*
Faulty communication with another module
Faulty CPU power supply**
4-channel mode
Acceleration
Steering
Turret, weapon and special functions
Not connected
Not connected
Function
User defined sounds: Sample 1 and 2
User defined sounds: Sample 3 and 4

Turret, weapon and special functions using 4-channel mode

Left stick (channels 3 and 4)

Status LED

*no connection to the sender or the transmission path between
sender and receiver is disturbed. Please check the wiring and the
proper function of the RC radio and receiver. If necessary check
the operability of the RC equipment with a servo.
**undervoltage on the CPU detected. Switch the power off for 10
seconds. If the error remains, assure that the PC Configurator
USB dongle is disconnected and retry.

RC receiver

5-channel mode
Acceleration
Steering
Turret and weapon control
Ignition and light
Not connected
for details.
é Shot (maximum deflection)
ê Machine gun (maximum deflection)
 Auxiliary MG
 Main light on/off
 Aux light on off
6-channel mode
Acceleration
Steering
Turret control
Ignition and light
Weapon control
