Lower Controls - Mec 4069 RT Operator's Manual

4069 RT

Lower Controls

2
3
4
5
ALWAYS be aware of the machine's position and of your surroundings
before activating any control function.

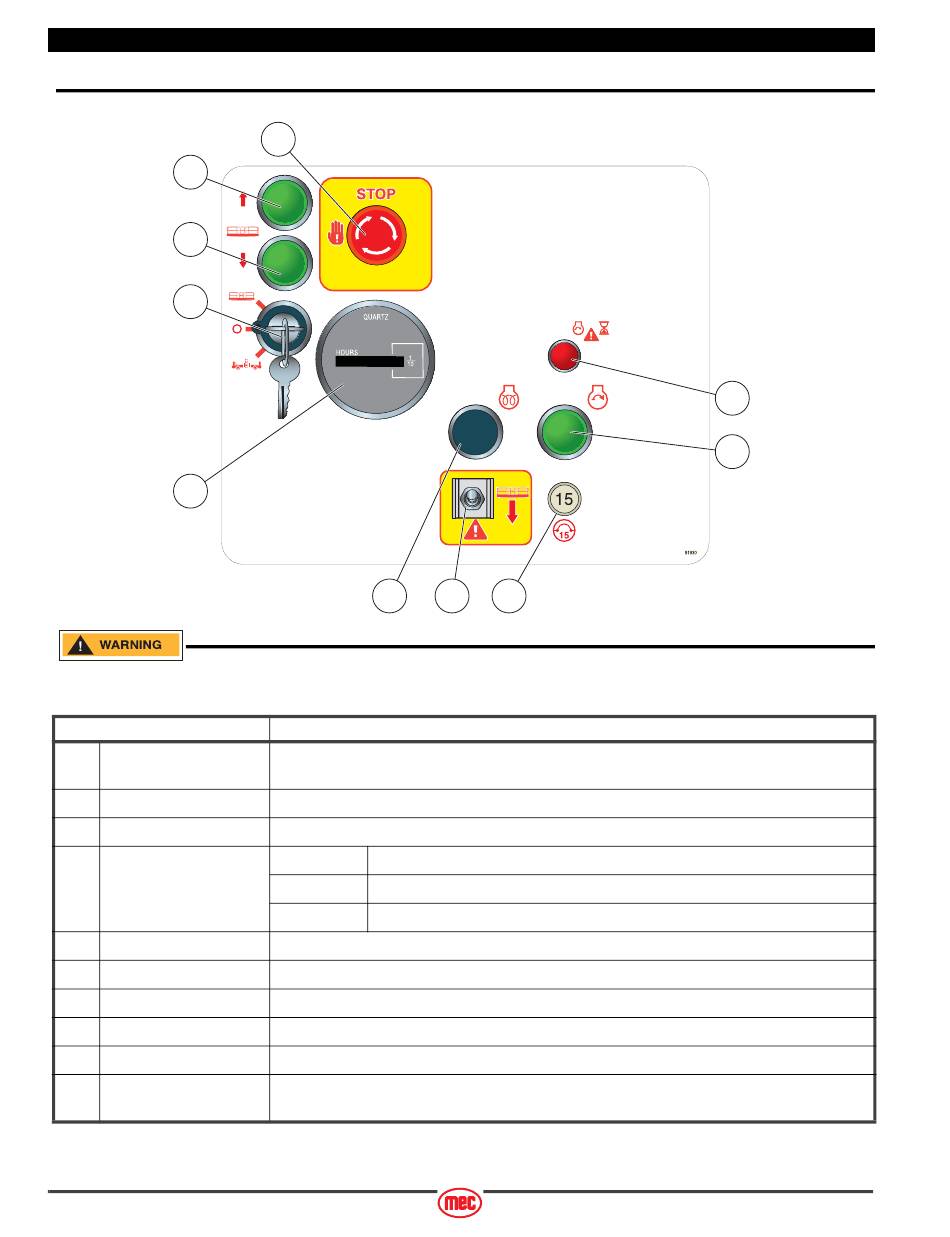

CONTROL
1 Emergency Stop Switch
2 Platform Lift Button
3 Platform Lower Button
4 Selector Switch
5 Hour Meter
6 Glow
7 Emergency Down Switch Move this switch down to lower the platform in the event of an emergency or power loss.
8 Circuit Breaker
9 Start Button
10 Start Delay Light
Page 10
April 2014
1
6 7
DESCRIPTION
Press the EMERGENCY STOP switch at any time to stop all machine functions.
Turn switch clockwise to reset.
Press this button to lift the platform.
Press this button to lower the platform.
PLATFORM Select to operate from the platform control panel.
BASE Select to operate from the base control panel.
OFF Select to stop operation from either control panel.
Indicates total elapsed time of machine operation.
Operate when starting in cold start conditions.
Trips when there is excessive electrical load. Push to reset.
Press to start engine. Release when engine starts.
Prevents over-cranking of engine. When lit, starter is disabled. After approximately 35 seconds
the light will go out and starter will operate.
Controls & Components
8
ART_4399
10
9
93075
4069 RT
