4069 RT
Controls & Components

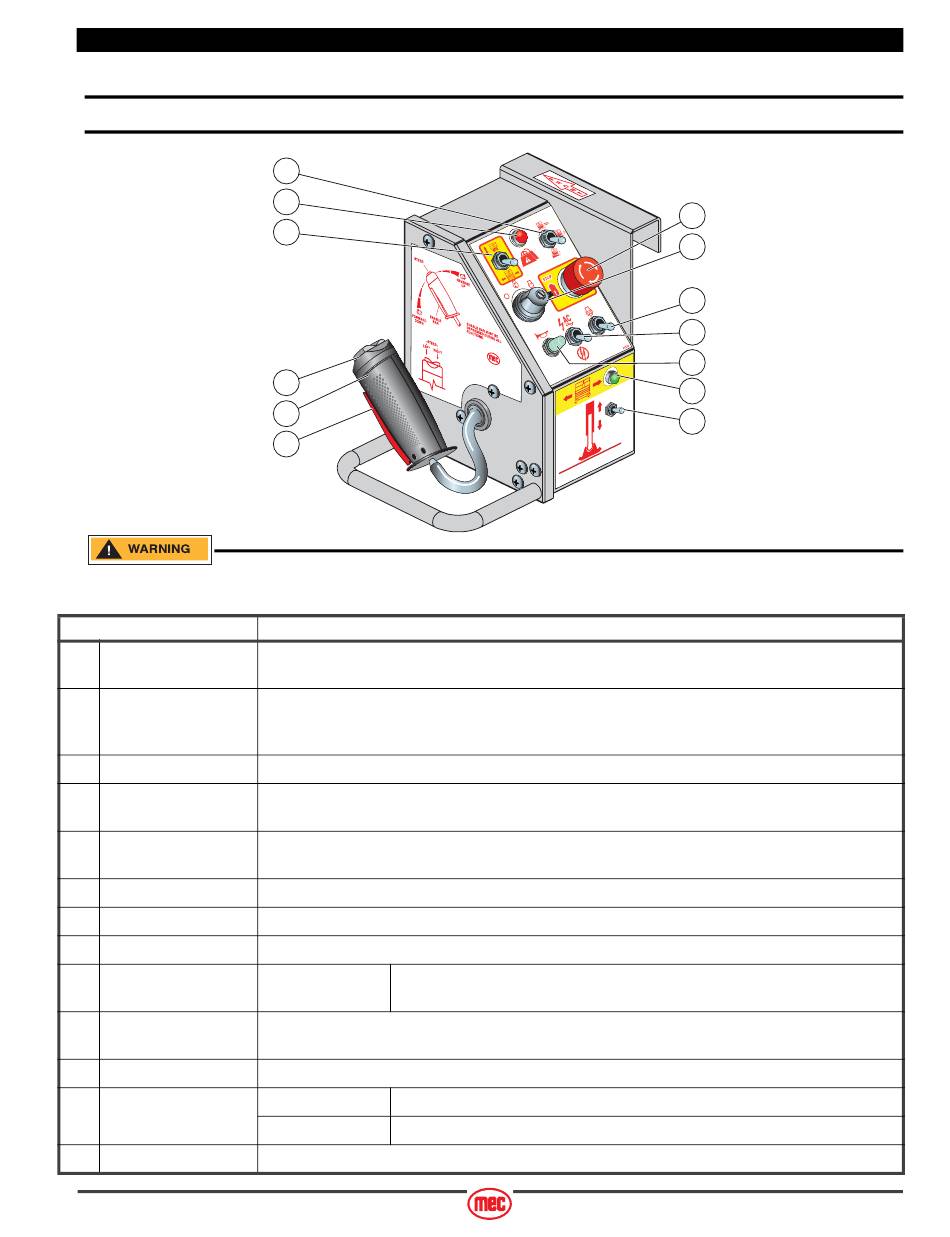

Platform Controls

ALWAYS be aware of the machine's position and of your surroundings
before activating any control function.
CONTROL
1 Speed/Torque
Selector Switch
2 Overload Indicator
Light
3 Lift/Drive Switch
4 Emergency Stop Switch Press the EMERGENCY STOP switch at any time to stop all machine functions.
5 Start Switch
6 Glow
7 Generator (Option)
8 Horn Button (Option)
9 Drive Enable Indicator
(Outrigger Option)
10 Extend/Retract
(Outrigger Option)
11 Steer Switch
12 Control Handle
13 Enable Bar
93075
4069 RT
1
2
3
11
12
13
DESCRIPTION
Move this switch to the up position for high speed drive. Move to the middle position for
mid-speed/mid-torque drive. Push this switch to the down position for high torque drive.
Platform overloaded when light is ON.
An audible alarm will sound and all machine functions will stop.
Remove weight from the platform to restore function and continue.
Move this switch UP to enable the Lift function. Move this switch DOWN to enable the Drive function.
Turn switch clockwise to reset.
Turn to far right to start engine. Switch will return to RUN position for normal operation.
Turn to OFF to shut engine down.
Operate when starting in cold start conditions.
Starts and stops optional generator.
Press to sound warning horn.
Lamp ON Outriggers are retracted and machine will drive.
Lamp OFF Outriggers are extended and machine will not drive.
Push the toggle switch DOWN to extend the outriggers. Continue pushing down until the outriggers
stop automatically. Push the toggle switch UP to retract the outriggers.
Using your thumb, press and hold the rocker switch to steer Left or Right.
DRIVE Proportionally controls Forward and Reverse travel.
LIFT Proportionally controls Lift and Lower functions.
Squeeze to enable DRIVE, STEER, and LIFT functions from the Joystick.
Controls & Components
4
5
6
7
8
9
10
ART_4410
Page 9
April 2014
