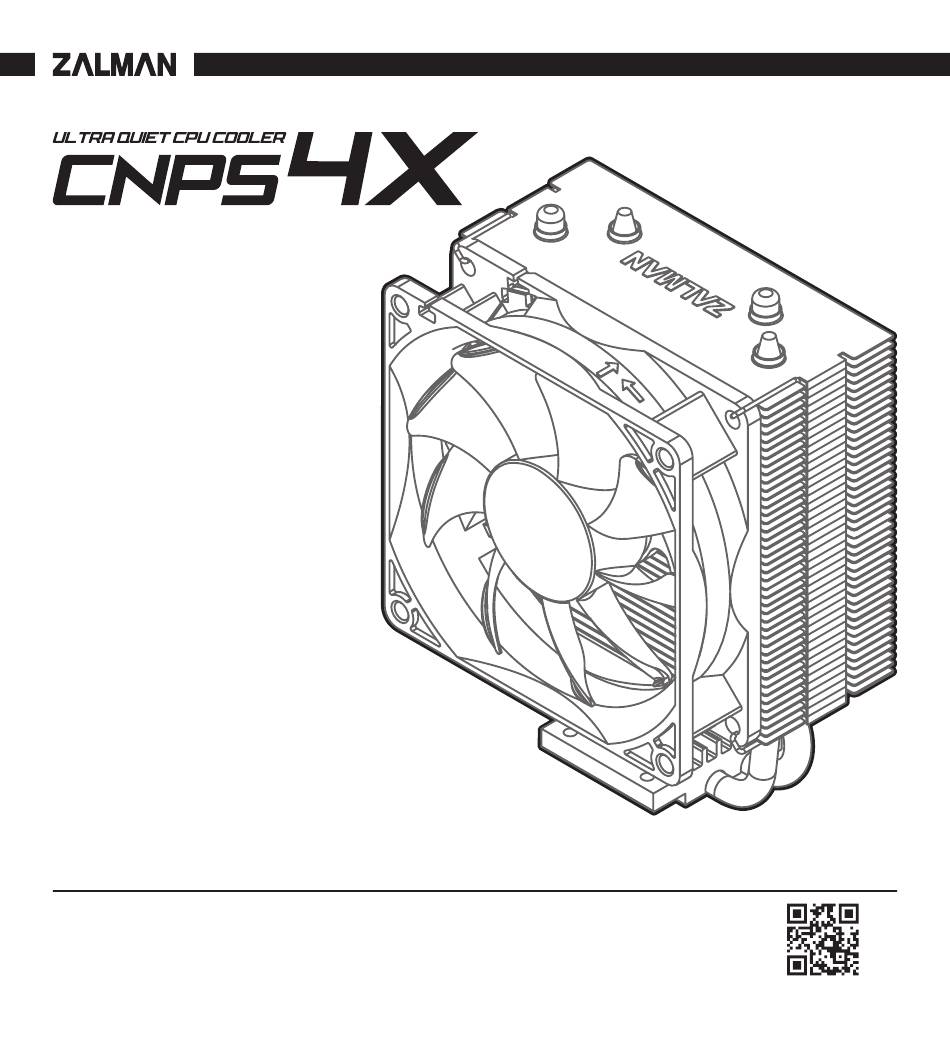

- Page 1 User's Manual Ver. 111219 Intel Socket LGA775/115X CPUs AMD Socket AM4/AM3+/AM3/FM2+/FM2 CPUs * To ensure safe and easy installation, please read the following precaution. * Product design and specifications may be revised to improve quality and performance without notice. www.zalman.com...
- Page 2 ■ Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer. ■ Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
- Page 3 ■ Zalman Tech Co., Ltd. no se responsabiliza de los daños que se produzcan en el «overclocking» de la CPU, como en la propia CPU como en los componentes del sistema.
- Page 4 ■ Firma nie ponosi odpowiedzialności za wszelkie problemy wynikające z użycia produktu do celów innych niż jego przeznaczenie i/lub spowodowanych przez niedbałość użytkownika. ■ Zalman Tech Co., Ltd. nie ponosi odpowiedzialności za wszelkie uszkodzenia części, jak. np. procesor CPU lub inne elementy systemu, powstałe wskutek przetaktowania procesora CPU.
- Page 5 Specifications Model CNPS4X Dimensions 95(L) x 65(W) x 132(H)mm Weight 360g Materials Pure Copper, Pure Aluminum Dimensions 92 x 92 x 25(H)mm Max Speed 2,000 ±10% RPM Max Noise Level 28.0 dB(A) ±10% Bearing Type EBR Bearing Control Method PWM Control Max Airflow 44 CFM Connector...
- Page 6 Components Common Components Cooler Manual Fan Clips Bolts Nuts Screws Side Caps Backplate Intel Clips AMD Clips Thermal Grease Loading Block Loading Block (Intel) (AMD)
- Page 7 Installation Requirements Cooler Space Requirements Cooler Orientation ※ Caution Recommended cooler orientation may differ according to the motherboard model. INTEL, AMD Loading Block Intel Loading Block(Intel) Loading Block(AMD) ※ Caution Remove the tape cover of loading block and attach it to the backplate.
- Page 8 1. Intel Users 1) LGA775/115X Intel Clips Screws Nuts Position Nuts Intel Side Caps 115X...
- Page 9 ※ Caution Take note of the orientation of the nuts and the side caps.
- Page 10 Thermal Grease Bolts 2. AMD Users 1) AM4/AM3+/AM3/FM2+/FM2 Screws...
- Page 11 Nuts Side Caps Nuts Position ※ Caution Take note of the orientation of the nuts and the side caps.
- Page 12 Thermal Grease Bolts...
- Page 13 Fan Clips 3. Fan Specifications Dimensions : 92 x 92 x 25(H)mm Max Speed : 2,000 ±10% RPM Max Noise Level : 28.0 dB(A) ±10% Bearing Type : EBR Bearing Control Method : PWM Control Max Airflow : 44 CFM Connector : 4-Pin Rated Voltage : 12 V DC...
- Page 14 제품 보증서 제품명 모델명 구입일 년 월 일 Serial No. 구입처 판매 금액 1. 품질 보증기간 : 제품 구입일로부터 1년. (단, 구입 영수증이 있을 때) 2. 무상 A/S : 품질 보증기간 내에 제품 자체 성능 상의하자 및 불량 발생 시. 3.
- Page 15 5. A/S 안내 1) 운영시간 : 평일 10:00 ~ 16:00 (공휴일, 토, 일요일 휴무) 2) 접수방법 ① 방문 접수 : www.zalmansvc.com 접속 및 회원가입 후 서비스 신청 접수 접수하신 제품 지참 후 방문 ② 택배 접수 : www.zalmansvc.com 접속 및 회원가입 후 서비스 신청 접수 성명, 연락처, 증상...
- Page 16 www.zalman.com...
