ZALMAN CNPS8700 NT User Manual
Hide thumbs
Also See for CNPS8700 NT:
- User manual (9 pages) ,
- User manual (9 pages) ,
- User manual (7 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
User's Manual

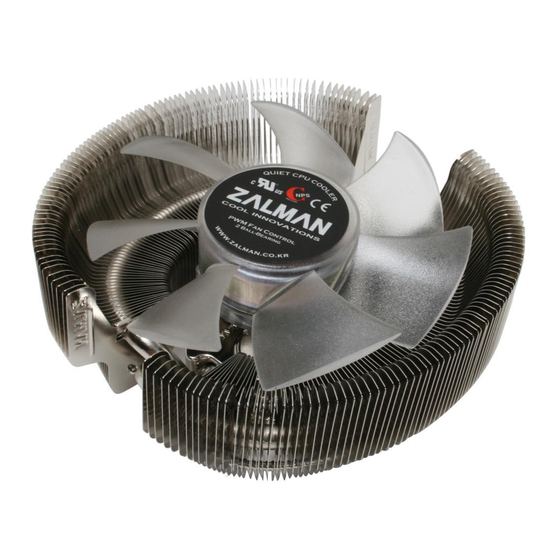

CNPS8700 NT
Intel Socket 1155 / 1156 / 775 CPU
AMD Socket AM3/AM2+/AM2/754/939/940 CPU
To ensure safe and easy installation,
please read the following precautions.
Core i7
Core i5
Core i3
Core 2 Quad
Core 2 Duo
Pentium Dual Core
Pentium D
Pentium 4
Celeron D
Phenom II
Phenom
Athlon II
Athlon X2
Athlon FX
Athlon
Opteron
Dual-Core Opteron
Sempron
www.ZALMAN.com
V 2.4
Advertisement
Table of Contents
Related Manuals for ZALMAN CNPS8700 NT
Summary of Contents for ZALMAN CNPS8700 NT
- Page 1 User’s Manual CNPS8700 NT Intel Socket 1155 / 1156 / 775 CPU Core i7 Core i5 Core i3 Core 2 Quad Core 2 Duo Pentium Dual Core Pentium D Pentium 4 Celeron D AMD Socket AM3/AM2+/AM2/754/939/940 CPU Phenom II Phenom...
- Page 2 Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement. Zalman Tech Co., Ltd. is not responsible for any damages due to overclocking. During transportation of the system, the cooler must be removed.
-
Page 3: Installation Requirements
3. Components Clip Support User’s Manual Cooler Washers Clip Support Fixing Bolts Nuts Clip Lever Clip Thermal Grease 4. Installation Requirements 1) Space Requirements The cooler’s installation requires unobstructed space with dimensions of 123 (width), 126 (height), 70 (depth), and the CPU as a central reference point. - Page 4 5. Installation 1) Intel Socket Installation Install the Clip Support to the motherboard according to the socket-type. Bolt(silver) Clip Support Socket 1155 / 1156 Socket 775 Washer Caution Lever Slot Please make note of the Lever Slot’s direction when installing the Clip Support. Clear off any particles or residue from the CPU’s surface then spread a thorough layer of Thermal Grease on the CPU and the base of the cooler.
- Page 5 Insert the Clip tilted on its side, then align the center hole and the base cover protrusion. Align and insert the Clip Lever onto the Clip’s Intel slot. Intel slot AMD slot Hook the opposite end of the Clip to the Lug first, then press down on the Clip Lever and hook the Clip Lever onto the Lug to secure the cooler.
- Page 6 Connect the 4-Pin PWM fan connector to the motherboard’s CPU Fan header. 2) AMD Socket AM3 / AM2+ / AM2 / 754 / 939 / 940 Installation Clear off any particles or residue from the CPU’s surface then spread a thorough layer of Thermal Grease on the CPU and the base of the cooler.
- Page 7 Align and insert the Clip Lever onto the Clip’s AMD slot. Intel slot AMD slot Hook the opposite end of the Clip to the Lug first, then press down on the Clip Lever and hook the Clip Lever onto the Lug to secure the cooler. Connect the 4-Pin PWM fan connector to the motherboard’s CPU Fan header.
