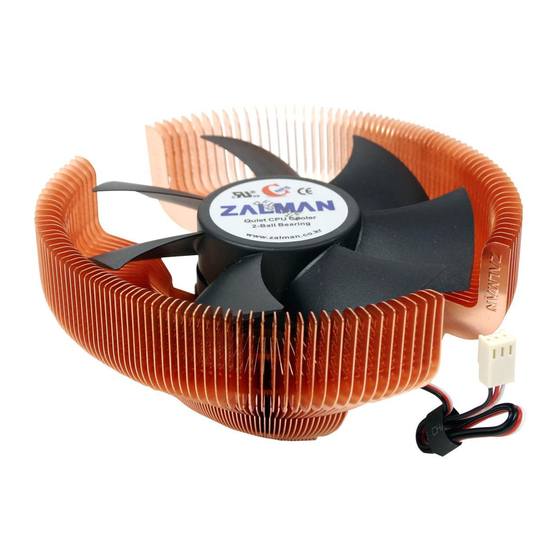

User's Manual
CNPS7700 Series
Intel Socket 1155/1156/775 CPUs
AMD Socket 754/939/940 CPUs
To ensure safe and easy installation,
please read the following precautions.
www.ZALMAN.com
Core i7
Core i5
Core i3
Core 2 Quad
Core 2 Duo
Pentium Dual Core
Pentium D
Pentium 4
Celeron D
Athlon 64
Athlon 64 X2
Athlon 64 FX
Opteron
Dual-Core Opteron
Sempron
V 2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CNPS7700 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZALMAN CNPS7700

  • Page 1 User’s Manual CNPS7700 Series Intel Socket 1155/1156/775 CPUs AMD Socket 754/939/940 CPUs To ensure safe and easy installation, please read the following precautions. www.ZALMAN.com Core i7 Core i5 Core i3 Core 2 Quad Core 2 Duo Pentium Dual Core Pentium D...
  • Page 2 Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement. Zalman Tech Co., Ltd. is not responsible for any damages due to overclocking. During transportation of the system, the cooler must be removed.
  • Page 3 3. Components 1) Common Components Cooler Thermal Grease User’s Manual Fan Mate 2 Fan Mate 2 Cable Double-Sided Tape 2) Intel Components Socket 1155 / 1156 / 775 S-Type Grips Clip Support Fixing Bolts Clip Support Nuts Washers 3) AMD Components Socket 754 / 939 / 940 L-Type Grips AMD Backplate...
  • Page 4: Installation Requirements

    4. Installation Requirements 1) Space Requirements The cooler’s installation requires unobstructed space with dimensions of 136㎜(width), 136㎜(height), 70㎜(depth), and the CPU as a central reference point. Please check if components such as ODDs and PSU protrude into the required space. 70㎜...
  • Page 5 5. Installation 1) Intel Socket 1155 / 1156 / 775 Installation ① Install the Clip Support to the motherboard according to the socket-type. Bolt(silver) Clip Support Washer Caution ▶ Please make note of the Lever Slot’s direction when installing the Clip Support. ②...
  • Page 6 ③ Install the S-Type Grips to both sides of the Clip and fasten Bolts through the holes of the Grips onto the Clip Support. 2) AMD Sockets 754 / 939 / 940 Installation ① Install the AMD Backplate to the motherboard using Washers and Backplate Fixing Bolts.
  • Page 7 ③ Install the L-Type Grip to both sides of the Clip and fasten Bolts through the holes of the Grips onto the Clip Support. 6. Fan Mate 2 Installation and Usage 1) Fan Mate 2 Installation ① Connect Fan Mate 2 between the Fan Cable and the motherboard as shown in the diagram below.
  • Page 8 GS1000 / GS1000SE • E-ATX / Standard ATX / microATX Compatible * Supports Intel Dual Xeon server motherboards • UP to 6 Hot Swap HDD Bays * GS1000(3 Standard / 3 Optional) * GS1000 SE(Optional) • Tool-Free HDD Installation • Airflow Optimized Design •...
