3. The Configuration of the serial port
The debug serial port configurations are shown as below
Items
Bund Rate
Data Bits
Parity
Stop bits
Flow control
4. Lark Board Boot-up
Complete the above configurations, connect a HDMI/VGA monitor to Lark Board, and
then power on the board, Lark Board will boot the system from eMMC
Note:
Disconnect TF card to Lark bard when booting from eMMC
For more information of Lark board, please refer to:
http://www.embest-tech.com/product/pinggubanxilie/lark-board-evaluation-board.html
www.rocketboards.org
Visit
element14 is a trademark of Premier Farnell plc ©2014 Premier Farnell plc. All Rights Reserved.
3

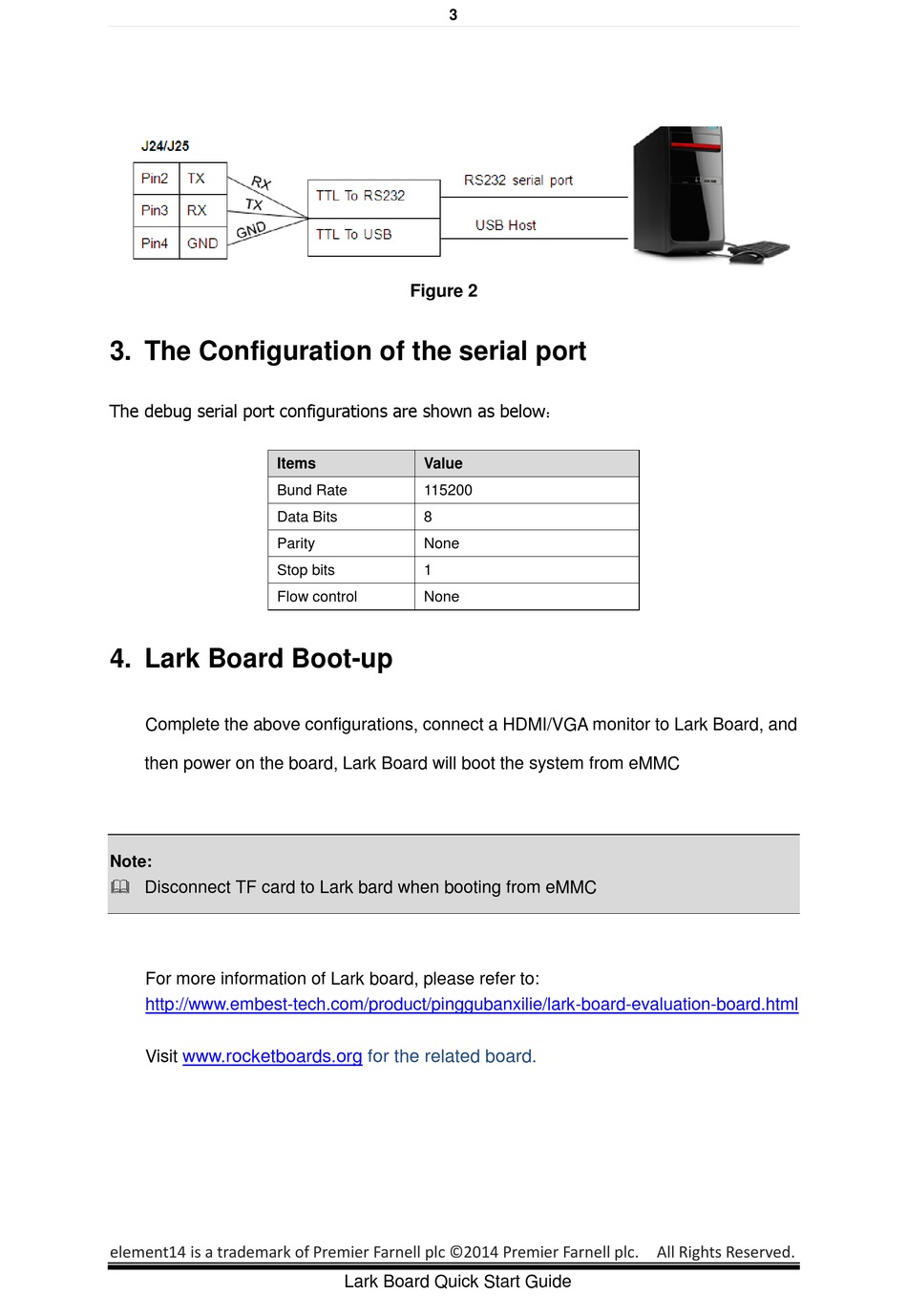

Figure 2
Value
115200
8
None
1
None
for the related board.
Lark Board Quick Start Guide
：
