Embest SBC6245 User Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
400MHz Atmel AT91SAM9G45 ARM 926EJ-STM Microcontroller
On Board 128MB Nand Flash plus 128MB DDR2 SDRAM
RS232, RS485, Ethernet, USB Host, LCD, Touch Screen, RTC, ...
Supports for Linux 2.6.30 and WinCE 6.0 Operating Systems
SBC6245 Single Board Computer
Description
Embest SBC6245 is an ARM embedded single board computer (SBC) using Atmel AT91SAM9G45
microcontroller which is capable of operating at up to 400MHz. It employs the Mini6245 processor
card as the CPU core board and the expansion board has brought out the headers for many hardware
periphrals including Serial ports, Ethernet, USB Host, LCD, Touch Screen, RTC and etc. The CPU
core board Mini6245 has integrated the AT91SAM9G45 CPU, 128MB DDR2 SDRAM, 128MB Nand
Flash, 1Kbit EEPROM, Ethernet controller on board and connects to the expansion board through two
1.27mm pitch 80-pin connectors.
The board is capable of supporting Linux 2.6.30 and WinCE 6.0 operating systems. Embest provides
BSP package, user manual and some other tools and documents to help customer with their
development.
Embest has also designed a reliable and nice metal case for the SBC6245 board with 5.6 inch TFT
LCD and touch screen which can be used directly for HMI applications, the whole kit is called
TH056A1, customer can create their own applications on the platform. This will greatly short your
product time to market.

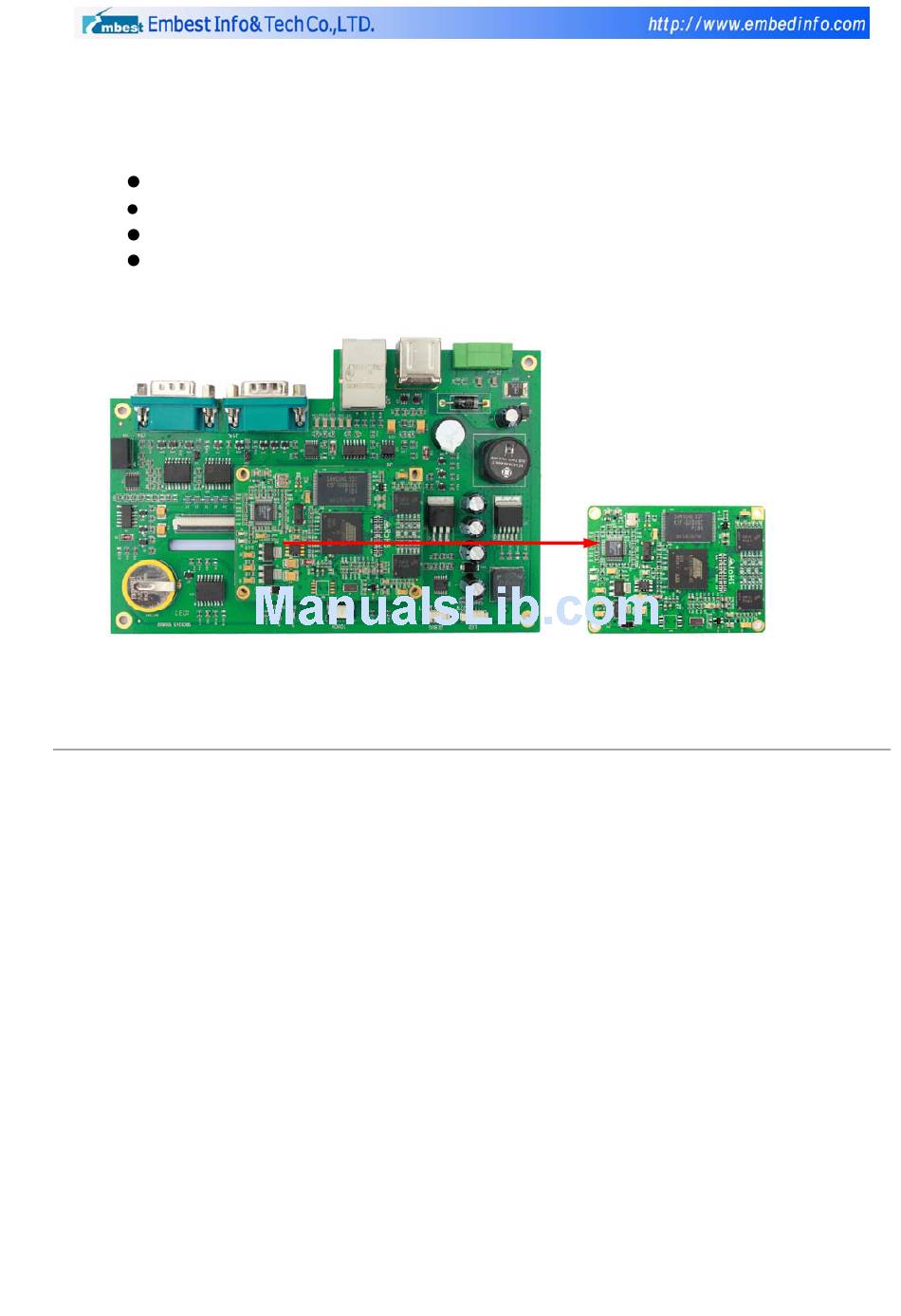

SBC6245 Single Board Computer
Mini6245 Processor Card

Advertisement

loading
Need help?

Need help?

Do you have a question about the SBC6245 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Embest SBC6245

Summary of Contents for Embest SBC6245

  • Page 1 BSP package, user manual and some other tools and documents to help customer with their development. Embest has also designed a reliable and nice metal case for the SBC6245 board with 5.6 inch TFT LCD and touch screen which can be used directly for HMI applications, the whole kit is called TH056A1, customer can create their own applications on the platform.

  • Page 2: Hardware Features

    Synchronous Controllers and Two Wire Interface. All these peripherals are DMA oriented, reducing the CPU overload. The SBC6245 has a CPU board Mini6245 integrated with AT91SAM9G45 microcontroller, Nand Flash, EEPROM and DDR2 SDRAM on it, which exposes many of these features to the user in support of developing specific solutions.
  • Page 3 Two 1.27mm pitch dual row 80-pin female headers (UART 0-3, Debug serial port, Ethernet, USB Host, 2 SPI, 2 TWI, SDIO, PWM, AC97, LCD, Touch Screen, JTAG and all IOs are led out via the two connectors.) The SBC6245 Expansion Boards Power supply: 24V One 3-wire RS232 Debug serial port Two 5-wire RS232 serial ports (COM1 &...
  • Page 4 Onboard Interfaces and Connectors DDR2 128MB 2xUSB HOST HS 2.0 NAND FLASH DM9161 NET 100M 128MB EEPROM 1Kbit +ID+Encrytion LCD (RGB) & TOUCH AT91SAM9G45 Precise RTC 2 *5 LINE RS232 MAX3232 2*RS485 ( iso ) ADM2483 RS232 1 LED & 1 Buzzer Watch Dog...
  • Page 5 Dimensions...

  • Page 6: Software Features

    Software Features Item Feature Description Version u-boot 1.3.4 Boot Mode Support booting from Nandflash Bootloader Download Support download kernel from SAM-BA or Ethernet Mode Version Linux 2.6.30 File System Supports ROM/CRAM/EXT2/RAMDISK/YAFFS2/FAT32 LED driver Serial Serial ports drivers Linux RTC driver Ethernet 10/100M Ethernet driver Kernel...

  • Page 7: Order Information

    LCD&TSP 5.6-inch TFT LCD and 4-wire resistive touch screen driver Order Information Order No. T6010148 Item Embest SBC6245 Single Board Computer SBC6245 board 1 serial cable 1 net cable Configuration 1 customized serial port converter cable 24V power adapter with customized power converter cable 1 CD with product reference Options.
