400MHz Atmel AT91SAM9G45 ARM 926EJ-STM Microcontroller
On Board 128MB Nand Flash plus 128MB DDR2 SDRAM
RS232, RS485, Ethernet, USB Host, CAN, LVDS, Touch Screen, SD, Audio, RTC, ...
Supports for Linux 2.6.30 and WinCE 6.0 Operating Systems
SBC6345 Single Board Computer
Description
Embest SBC6345 is an ARM embedded single board computer (SBC) using Atmel AT91SAM9G45
microcontroller which is capable of operating at up to 400MHz. It also employs the Mini6245
processor card as the CPU core board and features 5 UARTs, 2 USB, Ethernet, CAN, LVDS, SD and
Audio on board. The CPU core board Mini6245 has integrated the AT91SAM9G45 CPU, 128MB
DDR2 SDRAM, 128MB Nand Flash, 1Kbit EEPROM, Ethernet controller on board and connects to
the expansion board through two 1.27mm pitch 80-pin connectors.
The board is capable of supporting Linux 2.6.30 and WinCE 6.0 operating systems. Embest provides
BSP package, user manual and some other tools and documents to help customer with their
development.
Embest has also designed a reliable and nice metal case for the SBC6345 board with 10.4 inch TFT
LCD and touch screen which can be used directly for HMI applications, the whole kit is called
TH104A1, customer can create their own applications on the platform. This will greatly short your
product time to market.

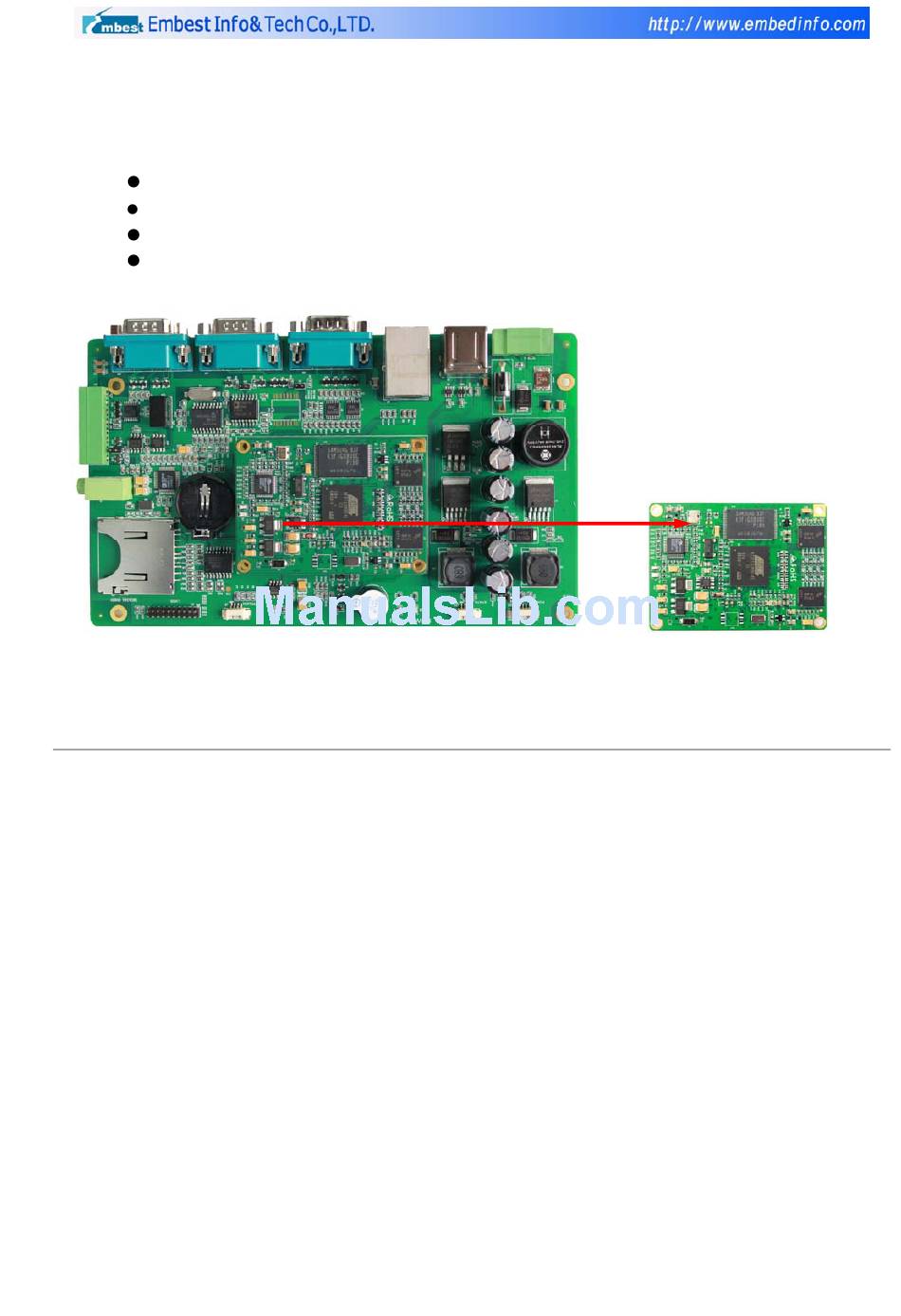

SBC6345 Single Board Computer
Mini6245 Processor Card
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Embest SBC6345
Summary of Contents for Embest SBC6345
- Page 1 BSP package, user manual and some other tools and documents to help customer with their development. Embest has also designed a reliable and nice metal case for the SBC6345 board with 10.4 inch TFT LCD and touch screen which can be used directly for HMI applications, the whole kit is called TH104A1, customer can create their own applications on the platform.
-
Page 2: Hardware Features
Synchronous Controllers and Two Wire Interface. All these peripherals are DMA oriented, reducing the CPU overload. The SBC6345 has a CPU board Mini6245 integrated with AT91SAM9G45 microcontroller, Nand Flash, EEPROM and DDR2 SDRAM on it, which exposes many of these features to the user in support of developing specific solutions. - Page 3 Two 1.27mm pitch dual row 80-pin female headers (UART 0-3, Debug serial port, Ethernet, USB Host, 2 SPI, 2 TWI, SDIO, PWM, AC97, LCD, Touch Screen, JTAG and all IOs are led out via the two connectors.) The SBC6345 Expansion Boards Power supply: 24V One 3-wire RS232 Debug serial port...
- Page 4 Onboard Interfaces and Connectors COM2 COM0 COM1 Ethernet 2 USB Host Power IN Debug RS485 Audio SD Card slot RTC Battery LVDS Power Out Mini6245 (CPU core board) TSP CON Buzzer LED&RUN...
- Page 5 Onboard Interfaces and Connectors 2xUSB HOST HS 2.0 DDR2 128MB NAND FLASH DM9161 NET 100M 128MB DATA FLASH 4MB (NC) LCD (LVDS) SN75LVDS83 & TOUCH EEPROM 1Kbit +ID+ Encrytion 1x5 Line RS232 AT91SAM9G45 MAX3232 2X3 Line RS232 1xRS485 ( iso ) Precise RTC ADM2483 SD CARD...
- Page 6 Dimensions...
-
Page 7: Software Features
Software Features Item Feature Description Version u-boot 1.3.4 Boot Mode Support booting from Nandflash Bootloader Download Support download kernel from SAM-BA or Ethernet Mode Version Linux 2.6.30 File System Supports ROM/CRAM/EXT2/RAMDISK/YAFFS2/FAT32 LED driver Serial Serial ports drivers Linux RTC driver Ethernet 10/100M Ethernet driver RS485... -
Page 8: Order Information
LCD&TSP 10.4-inch TFT LCD and 4-wire resistive touch screen driver Order Information Order No. T6010149 Item Embest SBC6345 Single Board Computer SBC6345 board 1 serial cable 1 net cable Configuration 1 customized serial port converter cable 24V power adapter with customized power converter cable 1 CD with product reference Options.
