Embest AM3517 User Manual

32-bit microprocessor base on am3517 lcd, vga, av, s-video, serial port, ethernet network, can, rs485, audio in/out, sd, cf, usb
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

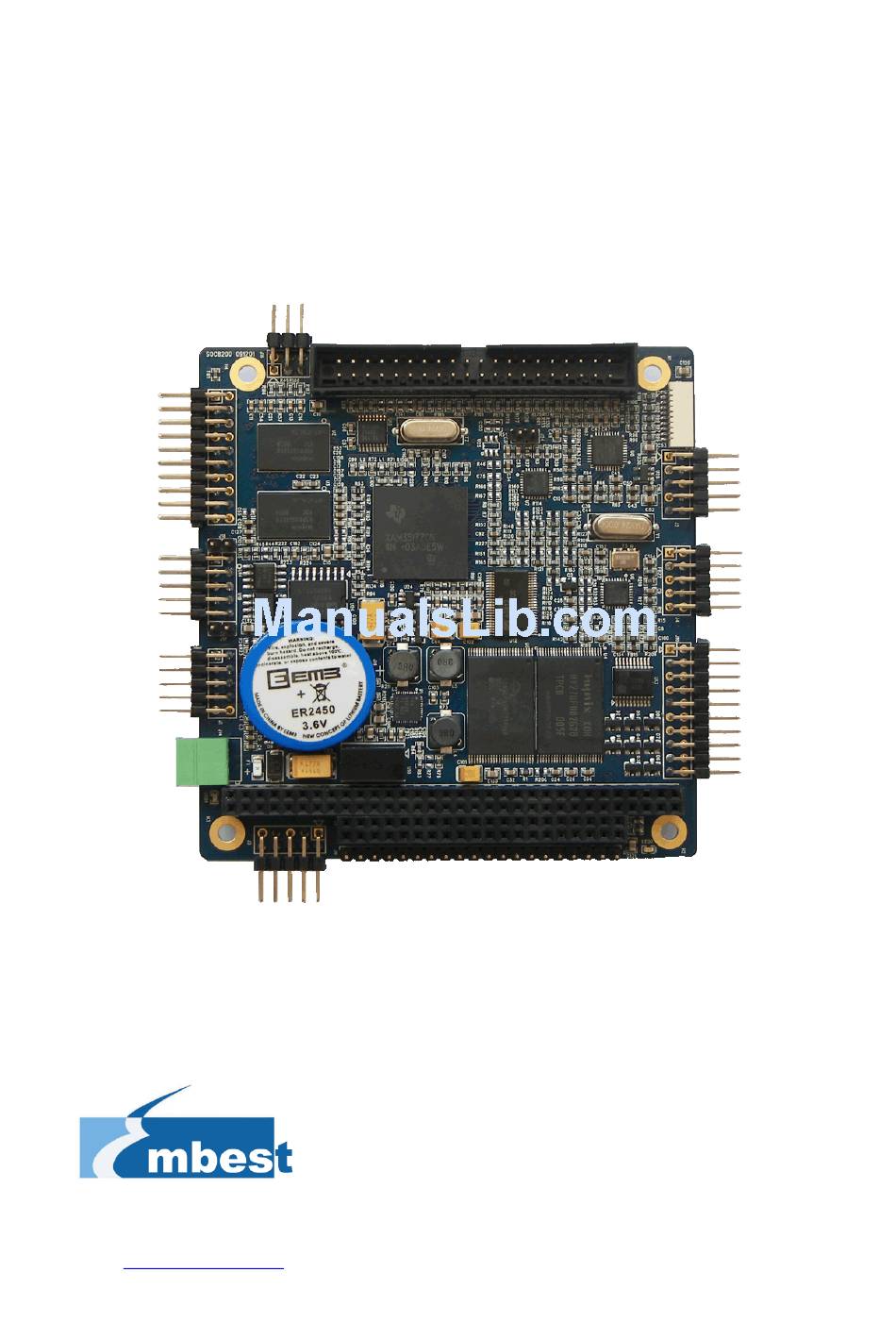

32-bit microprocessor Base on AM3517
LCD, VGA, AV, S-video, serial port, Ethernet network, CAN, RS485, Audio In/Out, SD, CF,
USB

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM3517 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Embest AM3517

Summary of Contents for Embest AM3517

  • Page 1: User Manual

    32-bit microprocessor Base on AM3517 LCD, VGA, AV, S-video, serial port, Ethernet network, CAN, RS485, Audio In/Out, SD, CF, User Manual...
  • Page 2 COPYRIGHT AM3517 is trademark of TI Corporation. Sourcery G++ Lite for ARM GNU/Linux is trademark of Codesourcery. Microsoft, MS-DOS, Windows, Windows95, Windows98, Windows2000, Windows embedded CE 6.0 are trademarks of Microsoft Corporation. Date Description July 10,2010 Initial version Dec 28,2010...

  • Page 3: Table Of Contents

    CONTENT 1 SYSTEM OVERVIEW ........................ 6 1.1 I ........................6 NTRODUCTION 1.2 S ........................8 YSTEM ODULE 1.3 A ....................... 9 RCHITECTURE IAGRAM 2 HARDWARE SYSTEM ......................10 2.1 H ......................10 ARDWARE VERVIEW 2.1.1 Single Board Computer ....................10 2.1.2 Hardware Features ......................
  • Page 4 3.4.4.1 LED application development ..................48 4 WINCE SYSTEM ........................50 4.1 W ....................50 SYSTEM VERVIEW 4.1.1 Pre-compiled image ....................... 50 4.1.2 Board Support Package (BSP) ..................51 4.2 W ....................52 SYSTEM QUICK START 4.2.1 system boot ........................52 4.3 WINCE S ...................

  • Page 5: System Overview

    1.1 Introduction SOC8200 is an industrial evaluation kit designed and manufactured by Embest Info&Tech based on processor AM3517 of Texas Instrument (TI). Processor AM3715 Co.,LTD., SOC8200 is is integrated with 600Mhz ARM Cortex-A8 Core which is dedicated using to Process industrial signal.
  • Page 6 Fig1.1 SOC8200 Single Board Computer...

  • Page 7: System Module

    1.2 System Module AM3517 industrial applications processors  600MHz ARM Cortex-A8 Core NEON SIMD Coprocessor POWERVR SGX Graphics Accelerator 16KB I-Cache，16KB D-Cache，256KB L2-Cache，112KB ROM，64KB Share SRAM  Memory 256MB DDR2 SDRAM，32bit 256MB NAND Flash，8bit 4MB NOR Flash，16bit  Audio / Video Interface...

  • Page 8: Architecture Diagram

    1.3 Architecture Diagram The full system architecture diagram as follows: Fig1.3 SOC8200 architecture diagram...

  • Page 9: Hardware System

    SOC8200 32-bit microprocessor Base on AM3517 LCD, VGA, AV, S-video, serial port, Ethernet network, CAN, RS485, Audio In/Out, SD, CF, User Manual...

  • Page 10: Hardware Features

    Processor AM3517 industrial applications processors  NEON SIMD Coprocessor  600MHz ARM Cortex-A8 Core  POWERVR SGX Graphics Accelerator (AM3517 only)  16KB I-Cache, 16KB D-Cache, 256KB L2-Cache, 112KB ROM, 64KB Share SRAM  Memory 256MB DDR2 SDRAM, 32bit ...

  • Page 11: Electric Characteristic

    SOC8200 32-bit microprocessor Base on AM3517 LCD, VGA, AV, S-video, serial port, Ethernet network, CAN, RS485, Audio In/Out, SD, CF, User Manual...

  • Page 12: Network Interface

    2.2.2 Network interface SOC8200 is 10M/100M adaptive network interface Description VCC_IO LED2/NINTSEL LED1/REGOFF 2.2.3 Camera Interface Description CAM_D0 CAM_D1 CAM_D2 CAM_D3 CAM_D4 CAM_D5 CAM_D6 CAM_D7 CAM_D8 CAM_D9 CAM_PCLK CAM_HS CAM_VS VCC_IO IIC3_SDA IIC3_SCL...

  • Page 13: Mmc Interface

    2.2.4 MMC Interface Description VCC_IO MMC1_CLK MMC1_CMD MMC1_D0 MMC1_D1 MMC1_D2 MMC1_D3 MMC1_CD MMC1_WP 2.2.5 UART1 Interface Description R1IN T2OUT T1OUT R2IN...

  • Page 14: Analog Io Interface

    2.2.6 Analog IO Interface Description VCC_IO 2.2.7 Digital IO Interface Description VCC_IO Table2.7 Digital IO Interface...

  • Page 15: Tft_Lcd Interface

    2.2.8 TFT_LCD Interface Description DSS_CLK DSS_HS DSS_VS DSS_D11 DSS_D12 DSS_D13 DSS_D14 DSS_D15 DSS_D5 DSS_D6 DSS_D7 DSS_D8 DSS_D9 DSS_D10 DSS_D0 DSS_D1 DSS_D2 DSS_D3 DSS_D4 DSS_DEN VCC_IO VCC_IO LCD_PEN VCC_5V LCD_ADJ...

  • Page 16: Pc104 Interface

    2.2.9 PC104 Interface 2.2.9.1 PC104-64 Description VCC_5V VCC_5V VCC_IO VCC_IO SYS_RST POWER_RST SYS_CLKOUT2 SYS_CLKOUT1 HDQ_SIO SYS_32K GPIO58 GPIO57 GPIO56 GPT11 GPT10 GPT9 IIC1_SDA IIC1_SCL UART4_RX RS485_TXEN RS485_RXEN UART4_TX MCBSP4_DX MCBSP4_DR MCBSP4_CLKX MCBSP4_FSX MCBSP_CLKS...
  • Page 17 GPIO157 GPIO162 SPI4_CS0 SPI4_SOMI SPI4_SIMO SPI4_CLK SPI1_CS3 SPI1_CS2 SPI1_SOMI SPI1_SIMO SPI1_CLK MMC2_D7 MMC2_D6 MMC2_D5 MMC2_D4 MMC2_D3 MMC2_D2 MMC2_D1 MMC2_D0 MMC_CMD MMC2_CLK U3_DP U3_DM U4_DM U4_DP Table2.9 PC104-64 Interface...
  • Page 18 2.2.9.2 PC104-40 Description GPMC_NCS4 GPMC_NCS3 GPMC_NCS2 GPMC_A10 GPMC_A9 GPMC_A8 GPMC_A7 GPMC_A6 GPMC_A5 GPMC_A4 GPMC_A3 GPMC_A2 GPMC_A1 GPMC_NBE1 GPMC_WAIT3 SYS_RST GPMC_CLE GPMC_ALE GPMC_CLK GPMC_WE GPMC_OE GPMC_D15 GPMC_D14 GPMC_D13 GPMC_D12 GPMC_D11 GPMC_D10 GPMC_D9 GPMC_D8 GPMC_D7 GPMC_D6 GPMC_D5 GPMC_D4 GPMC_D3 GPMC_D2 GPMC_D1 GPMC_D0...

  • Page 19: Multifunctional Expansion Interface

    2.2.10 Multifunctional Expansion Interface Description TV_OUT1 TV_OUT2 VCC_IO MCBSP2_CLKX MCBSP2_FSX MCBSP2_DR MCBSP2_DX IIC2_SDA IIC2_SCL SPI2_CLK SPI2_SIMO SPI2_SOMI SPI2_CS0 SPI2_CS1 2.2.11 Can/485 Interface Description CANH CANH CANL CANL CHGND CHGND RS485A RS485B RS485Z RS485Y MCBSP2_DX IIC2_SDA...

  • Page 20: Power Interface

    IIC2_SCL SPI2_CLK SPI2_SIMO SPI2_SOMI SPI2_CS0 SPI2_CS1 2.2.12 Power Interface Description VCC_5V 2.2.13 UART (TTL) Interface Description VCC_IO UART2_CTS UART2_RTS UART2_TX UART2_RX...

  • Page 21: Jtag Interface

    2.2.14 JTAG Interface Description NTRST RTCK EMU0 EMU1...

  • Page 22: Linux System

    USB8200-X,NET8200 ,ECOM-4,ECOM-8,E100 Module are trademarks of Embest Info&Tech Co.,LTD AM3517 is trademark of TI Corporation. Sourcery G++ Lite for ARM GNU/Linux is trademark of Codesourcery. Microsoft, MS-DOS, Windows, Windows95, Windows98, Windows2000, Windows embedded CE 6.0 are trademarks of Microsoft Corporation.

  • Page 23: Bsp Features

    1.1 Introduction SOC8200 is an industrial evaluation kit designed and manufactured by Embest Info&Tech based on processor AM3517 of Texas Instrument (TI). Processor AM3715 Co.,LTD., SOC8200 is is integrated with 600Mhz ARM Cortex-A8 Core which is dedicated using to Process industrial signal.
  • Page 24 Digital output Control independently Table 3.1 BSP specifications...

  • Page 25: Linux System Quick Operation

    3.2 Linux System Quick Operation Windows System Environment Preparation In the course of system operation, when needs HyperTerminal in the PC, the Hyper Terminal configuration is as follows:  Baud rate: 115200  Data bit: 8  Parity check: no ...

  • Page 26: System Boot Methods

    3.2.1 System boot methods 3.2.1.1 NAND Flash Boot You can use the jumper cap to choose the boot type, if connect the A, the board will boot Place image from SD card, otherwise the board will boot image from NAND Flash. The nand flash already has the solidified code of VGA display, user only need to connect the serial port and set the hyper terminal configuration.

  • Page 27: Linux Function Test

    OMAP34xx/35xx-GP ES1.0, CPU-OPP2 L3-165MHz AM3517EVM Board + LPDDR/NAND I2C: ready DRAM: 256 MB NAND: 256 MiB serial Out: serial Err: serial Die ID #796400000000000001543b2106011005 Net: davinci_emac_initialize Ethernet PHY: GENERIC @ 0x00 DaVinci EMAC Hit any key to stop autoboot: 3 When it starts to this here, the system will count down for 3 seconds.
  • Page 28 3.2 3.3 Test on RTC SOC8200 has a hardware clock, it is used to save and restore the system time, refer to the following test methods: 1. Set the system time at 5:55 p.m. on the March 24, 2010: [root@OMAP3EVM /]# date 032417552010 Wed Mar 24 17:55:00 UTC 2010 2.
  • Page 29 2.After successful connection, PC will show a virtual network card as displayed in Fig 5.1： Fig 5.1 virtual network card 3. Set the IP address of the virtual network card, for example: Fig 5.2 IP Configuration 4. Set the IP network segment of SOC8200 board as the same as virtual network card: [root@OMAP3EVM /]# ifconfig usb0 192.168.1.105 [root@OMAP3EVM /]# ifconfig usb0...
  • Page 30 5. Use the following command on the hyper terminal to test the SOC8200 board whether had connected successfully. [root@OMAP3EVM /]# ping 192.168.1.15 PING 192.168.1.15 (192.168.1.15): 56 data bytes 64 bytes from 192.168.1.15: seq=0 ttl=128 time=6.592 ms 64 bytes from 192.168.1.15: seq=1 ttl=128 time=0.549 ms 64 bytes from 192.168.1.15: seq=2 ttl=128 time=0.488 ms 64 bytes from 192.168.1.15: seq=3 ttl=128 time=0.458 ms The address of OTG should not the same as net, user may change it.
  • Page 31 3.2 3.7 Test on network The board has a 10/100M self-adapting network card DM9000; users can connect the board to the LAN and enter the following commands for a test: [root@OMAP3EVM /]# ifconfig eth0 192.192.192.201 eth0: attached PHY driver [Generic PHY] (mii_bus:phy_addr=ffffffff:00, id=7c0f1) [root@OMAP3EVM /]# PHY: ffffffff:00 - Link is Up - 100/Full [root@OMAP3EVM /]# ping 192.192.192.90 PING 192.192.192.90 (192.192.192.90): 56 data bytes...
  • Page 32 Capture: Stream on... LCD shows the image collected by the camera. ( press ctrl+c to quit the test ) 3.2 3.9 Test on CAN If the user want to connect the CAN device, please use the CAN8200。 The steps for the CAN connection: 1.
  • Page 33 Windows Embedded CE 6.0 R2 linux-2.6.24 3. Umount the SD card. [root@OMAP3EVM /]# umount /mnt 3.2 3.12 Test on buzzer 1. Enable the buzzer: [root@OMAP3EVM /]# echo 1 > /sys/class/misc/beep/val 2. Off the buzzer: [root@OMAP3EVM /]# echo 0 > /sys/class/misc/beep/val 3.2 3.13 Test on AUDIO The board has audio input and output interface, and we have alsa-utils audio test tools in the filesystem, users can enter the following commands for a test:...
  • Page 34 2. Playback Testing： [root@OMAP3EVM /]# aplay -t wav -c 2 -r 44100 -f S16_LE -v k Playing WAVE 'k' : Signed 16 bit Little Endian, Rate 44100 Hz, Stereo Plug PCM: Hardware PCM card 0 'omap3evm' device 0 subdevice 0 Its setup is: stream : PLAYBACK...
  • Page 35 3.2 3.14 Test on full-function serial port SOC8200-M has 3 serial port: Encapsulati Interface Type Device nodes Test program Extended 3 line com_norts Full-function Interface for serial port /dev/ttySCMA0 RS232 serial port 9 line com_rts Extended 3 line com_norts Full-function Interface for serial port /dev/ttySCMA1...
  • Page 36 Parity bit: None Control flow: Hardware DTR: On RTS: On 2. Test for communication: 1) Connect the extended serial port 0 and PC via 3-wire mode Input the following commands, the SOC8200 board will send data “1234567890 " to the PC. If the PC has send the data to SOC8200 board, the board will receive the data too.
  • Page 37 3.2 3.15 Test on digit output The pins 1 to 8 on the connector J6 can output the digit voltage 0V and 3.3V, the default the output 3.3v when reset the board. 1. Device introduce: [root@OMAP3EVM /]# cd /sys/class/misc/digital/ [root@OMAP3EVM digital]# ls out2 out4 out6...

  • Page 38: Linux Image Update

    3.3 Linux Image Update SOC8200 supports MMC/SD boot or NAND boot; different start-up modes will have different method for updating the image. We will introduce the update of image under different start-up modes. 3.3.1 Update the image for SD card 3.3.1.1 Prepare 1 The formatting of MMC/SD card Recommend to use HP USB Disk Storage Format Tool:...
  • Page 39 This tool will delete all partition on the SD/MMC card. 2. Preparing the SD card file 1)Copy the all the file on the directory of disk/linux/image. 2) Depending on your display device LCD (4.3inch,7inch) or VGA, rename uImage_xx as uImage The foregoing “XX”...
  • Page 40 U-Boot 2009.11-svn ( 3 鏈?19 2010 - 16:14:31) OMAP34xx/35xx-GP ES1.0, CPU-OPP2 L3-165MHz AM3517EVM Board + LPDDR/NAND I2C: ready DRAM: 256 MB NAND: 256 MiB serial Out: serial Err: serial Die ID #796400000000000001543b2106011005 Net: davinci_emac_initialize Ethernet PHY: GENERIC @ 0x00 DaVinci EMAC Hit any key to stop autoboot: 3 When it starts to this here, the system will count down for 3 seconds.

  • Page 41: Update The Image For Nand Flash

    3.3.2 Update the image for NAND Flash 3.3.2.1 Prepare Use HP USB Disk Storage Format Tool 2.0.6 software to format the SD card, copy all files from the CD linux / image / to the SD card and depending on your display device LCD (4.3,7) or VGA, rename uImage_xx To uImage Notice：the foregoing “XX”...
  • Page 42 Update image for SD card: mmc init fatload mmc 0 80000000 flash-uboot.bin nand erase 80000 160000 nandecc sw nand write.i 80000000 80000 $filesize 3. The update of kernel boot image Input the following commands in the u-boot shell: Update image for SD card: mmc init fatload mmc 0 80000000 uImage nand erase 280000 300000...

  • Page 43: Linux System Deveplopment

    /media/cdrom/linux/tools tar xvjf arm-2009q1-203-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2 -C /home/embest The manual takes /home/embest as default installation directory. Users may change the path. 3.4.1.2 The installation of other tools Other tools included in linux/tools directory of CD may be used for source code. Users can...

  • Page 44: System Complie

    3.4.2.1 Preparation The source code of each part of the system is under the linux/source of CD. Users can copy it to the system and unzip it before developing. For example: mkdir /home/embest/work cd /home/embest/work tar xvf /media/cdrom/linux/source/ x-loader-03.00.00.04.tar.bz2 tar xvf /media/cdrom/linux/source/ u-boot-03.00.00.04.tar.bz2 tar xvf /media/cdrom/linux/source/ linux-03.00.00.04.tar.bz2...

  • Page 45: System Customization

    3.4.2.5 ubifs image generated cd /home/embest/work sudo /home/embest/tools/mkfs.ubifs -r rootfs -m 2048 -e 129024 -c 812 -o ubifs.img sudo /home/embest/tools/ubinize -o ubi.img -m 2048 -p 128KiB -s 512 /home/embest/tools/ubinize.cfg When the above steps are finished, the current directory will generate the file ubi.img we need.
  • Page 46 cd linux-03.00.00.04/ cp arch/arm/configs/omap3_soc8200_defconfig .config make menuconfig The example that we use usb gadget to simulate usb mass storage device will be taken to introduce the system customization: 1. Select Device drivers Symbol: USB_FILE_STORAGE [=m] Prompt: File-backed Storage Gadget Defined at drivers/usb/gadget/Kconfig:713 Depends on: <choice>...

  • Page 47: The Development Of Application

    3.4.3.3 Test Update kernel image file ulmage in SD card, copy file g_file_storage.ko to the SD card and reboot the system from SD. Execute the following commands to stimulate the SOC8200 into usb mass storage device for PC’s visit: root@DevKit8000:~# mount –t vfat /dev/mmcblk0p1 /mnt root@DevKit8000:~# cd /mnt root@DevKit8000:/mnt# insmod g_file_storage.ko file=/dev/mmcblk0p1 stall=0 removable=1 g_file_storage gadget: File-backed Storage Gadget, version: 7 August 2007...
  • Page 48 #define LED "/sys/class/leds/led/brightness" int main(int argc, char *argv[]) int f_led; unsigned char i = 0; unsigned char dat; if((f_led = open(LED, O_RDWR)) < 0){ printf("error in open %s",LED); return -1; for(;;){ i++; //dat = i&0x1 ? '1':'0'; //dat = (i&0x2)>>1 ? '1':'0'; dat = (i&0x4)>>2 ? '1':'0';...

  • Page 49: Wince System

    4 WinCE System 4.1 WinCE system Overview SOC8200 software system includes: pre-compiled images and applications and their corresponding static library, dynamic link library, header file and source code; cross compilation tools, auxiliary tools for development. Images, applications, Cross compilation tools used for generating image and application can be downloaded from Microsoft.

  • Page 50: Board Support Package (Bsp)

    Image Feature X-Loader To boot EBOOT To boot the operating system from the network (network card or RNDIS) EBOOT To boot the operating system with SD card To boot the operating system from the NAND Flash Windows Explorer Console Window CAB File Installer/Uninstaller Internet Explorer 6.0 ActiveSync...

  • Page 51: Wince System Quick Start

    SD/MMC/SDIO driver DM9000 network card driver USB OTG driver USB EHCI driver VRFB driver DSPLINKK/CMEMK driver GPIO keyboard driver PWM(TPS65930)driver ADC(TPS65930)driver ONENAND driver SMSC911X network card driver CAN driver Buzzer drive Backlight driver Battery driver Power management module Sleep / wake-up button driver Expansion of power management Flash Plug-in and Flash player MP3/MPEG4/H264 DSP Hardware decoder...

  • Page 52: Wince System Development

    4.2.1.2 Boot from SD card Copy image files MLO、EBOOTSD.nb0、NK.bin From CD:\WinCE\image\ VGA_1024x768(lcd_800x480 or lcd_480x272)\SD directory to SD card. If users need to switch to SD card, need to start in SOC8200 J24 connected to the motherboard jump line on cap, electric start, the system immediately instead from MMC/SD start. the method to update the image from the SD card will be show in 【4.4.1 Update the image for SD card】...

  • Page 53: System Complie

    Embedded CE 6.0 system image run on SOC8200 hardware platform. 4.3.2.1 Preparation has completed in SOC8200 hardware platform driver and the related Embest Info&Tech Co.,LTD., resources integration, so the user is in use in SOC8200 customize Windows CE 6.0 system, Embedded security before has need of the following preparation: Decompress [SOC8200\WinCE\BSP\AM35x_BSP.rar] to obtain AM35x_BSP directory.
  • Page 54 Select template type of Platform Builder for CE 6.0  Select a file name and open Windows Embedded CE 6.0 OS Design Wizard  Set the Embest SOC8200 BSP into the BSP list.  Continue to finish the Wizard. ...
  • Page 55 In the system in the process of compiling, the user should be in the "solution" choice "in the box with AM35x_BSP_ARMV4I_Release". 4.3.2.3 System Customization Windows Embedded CE 6.0 consists of a number of independent modules. Each module provides specific functions, of which some modules can be divided into several components. Each component has specific feature, making OEM/ODM customize a stable and efficient version according to specific application.

  • Page 56: Wince Image Update

    Store->Storage Manager Core OS->CEBASE->File Systems and Data Storage Manager Control Panel Applet Store->Storage Manager Core OS->CEBASE->File Systems and Data Transaction-Safe FAT File System (TFAT) Store->Storage Manager Core OS->CEBASE->Graphics Video/Image Compression Manager Multimedia Technologies->Media->Video Codecs and Renderers Core OS->CEBASE->Shell User Console Window Interface->Shell->Command Shell SD Memory Device Drivers->SDIO->SDIO Memory...

  • Page 57: The Development Of Application

    XLDRNAND.nb0 EBOOTSD.nb0 NK.bin from CD:\winCE\image\ VGA_1024x768(lcd_800x480或lcd_480x272)\NAND directory to SD card. 4.4.2.2 Image update (1) In SOC8200 J24 connected to the motherboard jump line, the position of the cap J24 10.1.2 have introduced in. Insert SD card restart your system. HyperTerminal will start printing the output information, at the same time press [SPACE] to enter the EBOOT menu.

  • Page 58: The Interface And Demonstration Of Application

    4.5.1 The interface and demonstration of application The Application Programming Interface (API) used by SOC8200 application development employs the standard application interface of Windows Embedded CE 6.0. SOC8200 just has an additional GPIO interface based on standard API. 1. For interface definition of Windows Embedded CE 6.0 standard application, please refer to related help documents of MSDN Windows Embedded CE 6.0 API.
  • Page 59 GPIO_DIR_INPUT Input mode GPIO_INT_LOW_HIGH Rising edge trigger mode GPIO_INT_HIGH_LOW Falling edge trigger mode GPIO_INT_LOW low level trigger mode GPIO_INT_HIGH high level trigger mode GPIO_DEBOUNCE_ENABLE Jumping trigger enable 3. The operation of GPIO Pin DWORD id = 0, pin = 0; Output high level: DeviceIoControl(hFile, IOCTL_GPIO_SETBIT, &id, sizeof(DWORD), NULL, 0, NULL, NULL);...

  • Page 60: Appendix

    Appendix Appendix I Dimension Fig 2.2 Dimension Drawing...

  • Page 61: Appendix Ii Driver Installation Of Linux Usb Ethernet /Rndis Gadget

    Appendix II Driver installation of Linux USB Ethernet/RNDIS Gadget If you don’t install driver of Linux USB Ethernet/RNDIS Gadget, PC will find the new hardware and give you a hint on the screen, please select “From list or designated location”, then click “Next”...
  • Page 62 When the following appears, select “Continue” Please wait until the installation is completed...

  • Page 64: Appendix Iii Linux Boot Disk Format

    Appendix III Linux Boot Disk Format How to create a dual-partition card for SOC8200 to boot Linux from first partition and have root file system at second partition. Introduction 一、 This guide is meant for those looking to create a dual-partition card, booting from a FAT partition that can be read by the OMAP3 ROM bootloader and Linux/Windows, then utilizing an ext3 partition for the Linux root file system.
  • Page 65 So you know your starting point. Make sure to write down the number of bytes on the card (in this example, 2021654528). Command (m for help): Disk /dev/sdc: 2021 MB, 2021654528 bytes 255 heads, 63 sectors/track, 245 cylinders Units = cylinders of 16065 * 512 = 8225280 bytes Device Boot Start Blocks Id System...
  • Page 66 8、Print the partition record to check your work Command (m for help): Disk /dev/sdc: 2021 MB, 2021654528 bytes 255 heads, 63 sectors/track, 245 cylinders Units = cylinders of 16065 * 512 = 8225280 bytes Device Boot Start Blocks System 9、Create the FAT32 partition for booting and transferring files from Windows Command (m for help): Command action extended...
  • Page 67 Disk /dev/sdc: 2021 MB, 2021654528 bytes 255 heads, 63 sectors/track, 245 cylinders Units = cylinders of 16065 * 512 = 8225280 bytes Device Boot Start Blocks System /dev/sdc1 409626 W95 FAT32 (LBA) /dev/sdc2 1558305 Linux 13、Save the new partition records on the SD Card This is an important step.
  • Page 68 32768, 98304, 163840, 229376, 294912 Writing inode tables: done Creating journal (8192 blocks): done Writing superblocks and filesystem accounting information: In ubuntu is formatted good FAT and EXT3 double division, FAT division in window to need to format a, otherwise it may appear not SD card from the start...

  • Page 69: Appendix Iv Tftp Server Build

    Appendix IV TFTP Server Build 1, installation client $>sudo apt-get install tftp-hpa $>sudo apt-get install tftpd-hpa 2, installation inet $>sudo apt-get install xinetd $>sudo apt-get install netkit-inetd 3, server configuration First of all, in the root directory, and build a tftpboot attribute to any user both: $>cd / $>sudo mkdir tftpboot $>sudo chmod 777 tftpboot...

  • Page 70: Appendixv Win Ce Related Resources Links

    Appendix V WinCE related resources links Visual Studio 2005 SP1 Update for Vista (if applicable) http://download.microsoft.com/download/c/7/d/c7d9b927-f4e6-4ab2-8399-79a2d5cdfac9/VS80sp 1-KB932232-X86-ENU.exe Windows Embedded CE 6.0 Platform Builder Service Pack 1 http://www.microsoft.com/downloads/details.aspx?familyid=BF0DC0E3-8575-4860-A8E3-290A DF242678&displaylang=en Windows Embedded CE 6.0 R2 http://www.microsoft.com/downloads/details.aspx?FamilyID=f41fc7c1-f0f4-4fd6-9366-b61e0ab5 9565&displaylang=en Windows Embedded CE 6.0 R3 http://download.microsoft.com/download/F/5/2/F5296720-250A-4055-991C-0CEA5DE11436/CE 6R3.iso WinCEPB60-091231-Product-Update-Rollup-Armv4I.msi...

  • Page 71: Appendix Vi Expansion Board

    Appendix VI Expansion Board The customer can evaluate the AM3517 via SOC8200 expansion board(SOC8200-M), to experience the AM3517 processor. The customer can use single board computer function Interface board to add the product functions, thus reducing product development cycles, achieve faster time to market.
  • Page 72 · 1 road, USB 2.0 Device connectors, High-school, 480 Mbps · 1 road, 10/100 Ethernet interface, RJ45 connector (with transformer and LED lights) · 10 bit Camera interface · Reset button, · CF card interface · SD/MMC interface...

  • Page 73: Appendix Vii Interface Board

    Appendix VII Interface Board For the convenience of our customers rapid customization product, TianMo introduced based on SOC8200 motherboard interface board, is mainly will each function modular, Each module can be through the copper column set up to, and then through the line connected to SOC8200 motherboard.
