Summary of Contents for Embest BB-EPH1800

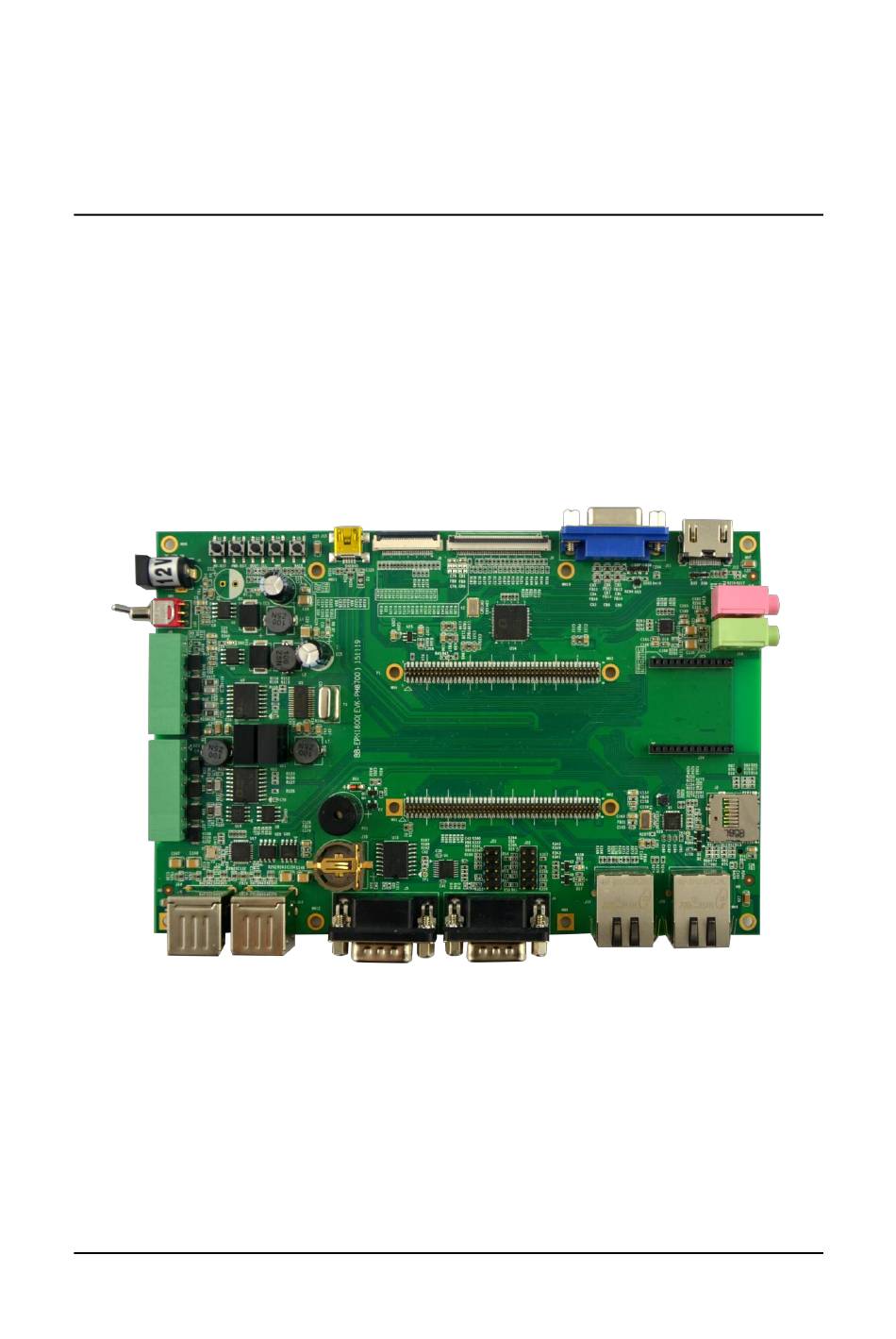

- Page 1 BB-EPH1800 User Manual Version 1.0–March 2016...
- Page 2 Embest Technology Copyright Statement： BB-EPH1800 and its related intellectual property are owned by Shenzhen Embest Technology Co., Ltd. Shenzhen Embest Technology has the copyright of this document and reserves all rights. Any part of the document should not be modified, distributed or duplicated in any approach and form with the written permission issued by Embest Technology Co., Ltd.
-
Page 3: Table Of Contents
2.3.7 Wifi ....................... 22 2.3.8 UART&RS485&CAN ................23 2.3.9 Button ....................23 2.3.10 UART ....................23 2.3.11 LED ....................24 2.3.12 RTC ....................24 2.3.13 External Button .................. 24 Technical Support and Warranty ..................25 Copyright ©2016 Embest Technology BB-EPH1800 User Manual... -
Page 4: Chapter 1 Product Overview

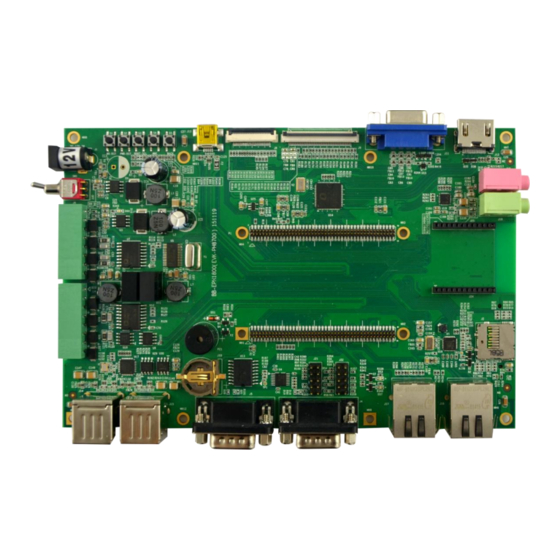

Chapter 1 Product Overview 1.1 Brief Introduction BB-EPH1800 is an evaluation base board designed by Embest for PH180 related SOM modules for areas such as medical instruments, video surveillance and industrial control. BB-EPH1800 provide lots of external interface for PH8700/PH8800, and has 4 high-speed USB2.0 Host interfaces,a OTG interface, a TF card slot for mass storage, a 12-bit camera... -
Page 5: Product Features
Support UART serial debugging Audio/Video Interfaces: A 24-bit true-color LCD interface (supporting 4-wire touchscreen) A VGA interface A HDMI interface A MIC Input Audio Headphone Output Copyright ©2016 Embest Technology BB-EPH1800 User Manual... -
Page 6: Interfaces & Buttons
HOST *4 (Communication) (debug) ETH A ETH B ： Attention the Uart(Communication) and the Uart (output from the Green Jack)share the same uart ,Don’t use them at the same time. Figure 1 Interfaces&Buttons Copyright ©2016 Embest Technology BB-EPH1800 User Manual... -
Page 7: System Block Diagram
SOM- PHONIX MINI USB PH8700/P CONN CONN H8800 ADM2483 RS485 UART2 USB-A X4 USB2514 CONN FPC 30P Camera WIFI MMC/UART1 MODULE RJ45-A GPIO/MISC Header RJ45-B AR8035 GEMAC1 Figure 2 BB-EPH1800 System Block Diagram Copyright ©2016 Embest Technology BB-EPH1800 User Manual... -
Page 8: Product Dimensions(Mm)
Embest Technology 1.4 Product Dimensions(mm) Figure 3 Product Dimensions Copyright ©2016 Embest Technology BB-EPH1800 User Manual... -
Page 9: Chapter 2
BB-EPH1800 hardware system. 。 2.1 Overview of CPU BB-EPH1800 is the base board for SOM-PH8700/PH8800 Designed by Embest.That make a whole show of the AM335X/AM437X Soc feature，The customs can free replace each other with SOM-PH8700/PH8800 ，Provide a perfect solution for the resource extension. -
Page 10: Ar8035
, so that users may have a deep understanding of the hardware circuitry of the board. 2.3.1 PH180 Interfaces BB-EPH1800 connect with the core board with the PH180 Interfaces defined by Embest. P1，P2 interfaces defined as below PIN-OUT for P2... - Page 11 GND10 USB0_DP GBE_MDC GND11 GBE_MDIO USB1_DM USB0_ID USB1_DP USB0_VBUS GND12 USB1_VBUS SPI1_SCLK LCD_PWM SPI1_D0 BOOT0_SEL SPI1_D1 BOOT1_SEL SPI1_CS0 BOOT2_SEL GND13 GND14 5V_VDD1 5V_VDD2 PIN-OUT for P1 Signal Name Function Signal Name WAKE_UP PWR_GOOD Copyright ©2016 Embest Technology BB-EPH1800 User Manual...
- Page 12 LCD_D22 LCD_VSYNC LCD_D23 GND5 CAN1_RX LCD_PCLK CAN1_TX GND7 I2C_SCL IO1/ETH_TXEN I2C_SDA IO2/ETH_RXDV IO3/ETH_TXD3 IO4/ETH_TXD2 IO5/ETH_TXD1 IO6/ETH_TXD0 GPIO/ETH IO7/ETH_TXCK IO8/ETH_RXCK IO9/ETH_RXD3 IO10/ETH_RXD2 IO11/ETH_RXD1 IO12/ETH_RXD0 RVD1/MMC2_CLK RVD2/MMC2_CMD RVD3/MMC2_D0 RVD4/MMC2_D1 RVD5/MMC2_D2 RVD/MMC RVD6/MMC2_D3 RVD7/MMC2_D4 RVD5/MMC2_D5 RVD9/MMC2_D6 Copyright ©2016 Embest Technology BB-EPH1800 User Manual...
- Page 13 UART0_TXD 3.3V UART0 UART2_RTS 3.3V UART2 UART3_RXD 3.3V UART3 UART2_CTS 3.3V UART2 UART3_TXD 3.3V UART3 UART1_RXD 3.3V UART1 CAN0_RX 3.3V CAN0_UART UART1_TXD 3.3V UART1 CAN0_TX 3.3V CAN0_UART UART1_RTS 3.3V UART1 I2C0_SDA 3.3V I2C0 Copyright ©2016 Embest Technology BB-EPH1800 User Manual...
- Page 14 GBE_TRP0 GBE Data GBE_TRP3 GBE Data GBE_TRN0 GBE Data GBE_TRN3 GBE Data GBE_TRP1 GBE Data GND9 GBE_TRN1 GBE Data USB0_DM USB0 GND10 USB0_DP USB0 GBE_MDC 3.3V MDIO Clk GND11 GBE_MDIO 3.3V MDIO DATA Copyright ©2016 Embest Technology BB-EPH1800 User Manual...
- Page 15 Signal Name INPUT/OUTP ACTIV Description E H/L level WAKE_UP 1.8V PWR_GOOD 3.3V Core board power good MCASP0_AHC 3.3V I2S_mclk RESET_OUTn 3.3V RESET MCASP0_FSX 3.3V I2S_LRCLK MCASP0_ACLK 3.3V I2S_BCLK MCASP0_AHC 3.3V I2S_mclk MCASP0_ACLK 3.3V I2S_BCLK Copyright ©2016 Embest Technology BB-EPH1800 User Manual...
- Page 16 3.3V IO_CAM_CLK(CAM_CLK) HDMI_TX1+/IO 3.3V IO_ETH2_INT HDMI_TXC+/IO 3.3V IO_CAM_STROBE(MMC0 _WP) HDMI_TX0-/IO5 3.3V IO_I2S_INT GND3 HDMI_TX0+/IO 3.3V IO_BEEP LCD_D11 3.3V GND4 LCD_D12 3.3V LCD_D0 3.3V LCD_D13 3.3V LCD_D1 3.3V LCD_D14 3.3V LCD_D2 3.3V LCD_D15 3.3V Copyright ©2016 Embest Technology BB-EPH1800 User Manual...
- Page 17 I2C_SCL 3.3V I2C1 IO1/ETH_TXEN 3.3V I2C_SDA 3.3V I2C1 IO2/ETH_RXDV 3.3V IO3/ETH_TXD3 3.3V IO4/ETH_TXD2 3.3V IO5/ETH_TXD1 3.3V IO6/ETH_TXD0 3.3V IO7/ETH_TXCK 3.3V IO8/ETH_RXCK 3.3V IO9/ETH_RXD3 3.3V IO10/ETH_RXD 3.3V IO11/ETH_RXD 3.3V IO12/ETH_RXD 3.3V RVD1/MMC2_C 3.3V MMC1 Copyright ©2016 Embest Technology BB-EPH1800 User Manual...
-
Page 18: Lcd/Vga/Hdmi
GND9 2.3.2 LCD/VGA/HDMI The powerful video performance is one of the important features of BB-EPH1800. It supports multiple types of displays including 50-pin medium-/small-sized LCD modules, VGA/HDMI monitors. LCD/VGA/HDMI shares the same video data source. Now let’s take a deep look at the hardware implementation of the display function of LCD/VGA/HDMI interfaces. - Page 19 Green DSS_D13 DSS_D14 DSS_D15 Ground DSS_D16 DSS_D17 DSS_D18 DSS_D19 Data DSS_D20 DSS_D21 DSS_D22 DSS_D23 Ground DSS_DEN Data DSS_HSYNC Sync DSS_VSYNC Ground DSS_PCLK Clock Ground TOUCH_X+ TOUCH_X- Touch TOUCH_Y+ Panel TOUCH_Y- SPI0_CLK SPI0_MOSI SPI0_MISO Copyright ©2016 Embest Technology BB-EPH1800 User Manual...
- Page 20 CH7033B Data VGA_BLU ID2/REV Other Ground VGA_VDD Power 5V Ground ID0/REV Other I2C_SDA_VGA 5V_HSYNC SYNC 5V_VSYNC SYNC I2C_SCL_VGA HDMI The HDMI interface on BB-EPH1800 is named as J12, which is a standard Copyright ©2016 Embest Technology BB-EPH1800 User Manual...
-
Page 21: Camera
GND_SHELDS GND_SHELDS Ground GND_SHELDS GND_SHELDS 2.3.3 CAMERA The 30-pin FPC connector (J8) on BB-EPH1800 is used to support 12-bit input of digital cameras. The following table contains pin definitions of the FPC connector; Copyright ©2016 Embest Technology BB-EPH1800 User Manual... -
Page 22: Gigabit Ethernet
BB-EPH1800 can provide two relatively high network performance of gigabit Ethernet. A Ethernet is implemented by utilizing part of the EMAC controller integrated in Core Board and the PHY AR8035 on core board. The other AR8035 is added on BB-EPH1800 Copyright ©2016 Embest Technology... -
Page 23: Tf Card
Pull-up 2.3.5 TF Card TF card are used to provide solid storage of boot code and system. MMC Interface TF card Interface The following table contains pin definitions of TF Card interface Copyright ©2016 Embest Technology BB-EPH1800 User Manual... -
Page 24: Usb & Hub
2.3.6 USB & HUB To satisfy diverse applications involving USB interfaces, BB-EPH1800 provides 4 USB ports. However, there are only 2 USB controllers in HPS, one is used to USB OTG .thus a PHY and a HUB are added to ensure 4 USB port can work at the same time. The USB2514B is used to expand the ports of PHY. -
Page 25: Wifi
Embest Technology USB Connector: J14/J15 GND_SHIELDS GND_SHIELDS GND_SHIELDS 2.3.7 Wifi J24, J25 are reserved to support the EXP-WFB00 (Wifi module) designed by Embest. The following table contains pin definitions of WiFi interface chart 8 Signal Description Signal Type BT_CTS_3V3 from WIFI... -
Page 26: Uart&Rs485&Can
2.3.9 Button There are 6 buttons on BB-EPH1800. S1 button can reset the system. S2 button can reset the power of the core board .S3 button can set where the board boot from. The rest of the two buttons can be programmed by users. -
Page 27: Led
CAN communication indication 2.3.12 RTC There is a RTC circuitry on BB-EPH1800. When a battery is inserted in J10, the board can keep a proper clock after power supply is turned off. A CR1220 battery and a DS3221 chip are involved in the implementation of RTC circuitry. Please refer to schematics and datasheet for its working principle and detailed circuit. -
Page 28: Technical Support And Warranty
Embest Technology Technical Support and Warranty Technical Support Embest Technology provides its product with one-year free technical support including: Providing software and hardware resources related to the embedded products of Embest Technology; Helping customers properly compile and run the source code provided by Embest Technology;... - Page 29 4） Please contact technical support if there is any repair request. Note: Embest Technology will not take any responsibility on the products sent back without the permission of the company. Copyright ©2016 Embest Technology...
- Page 30 Sales Information Tel: +86-755-25635626-863/865/866/867/868 Fax: +86-755-25616057 Email: globalsales@embest-tech.com Company Information Website: http://www.embest-tech.com Address: Tower B 4/F, Shanshui Building, Nanshan Yungu Innovation Industry Park, Liuxian Ave. No. 1183, Nanshan District, Shenzhen, Guangdong, China (518055) Copyright ©2016 Embest Technology BB-EPH1800 User Manual...
