Summary of Contents for Vinten V3955-0002
- Page 1 Vision Vinten Camera Control Solutions...
- Page 2 All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied or reproduced in any way including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of Vinten Broadcast Limited. Vinten and Vision are registered trademarks of Vinten Broadcast Limited.
-
Page 3: Safety - Read This First
For full details on maintenance and spare parts, please refer to Spreaders, Dollies & Skids - Spares and Repairs (Publication Part No. 3313-9) This is obtainable from Vinten Broadcast Lim- ited or your local Vinten distributor. For information on-line, visit our website at... -
Page 4: Technical Data
Skids and Dollies Recommended Castor Maximum Cable Track Type Leg Radius Diameter Weight Load Guards Locks V3955-0002 50 cm 12.5 cm 5.4 kg 40 kg ENG (OB) (19.7 in.) (4.9 in.) (11.9 lb) (88.2 lb) dolly V3955-0001 50 cm 10 cm 5.8 kg... -
Page 5: Table Of Contents

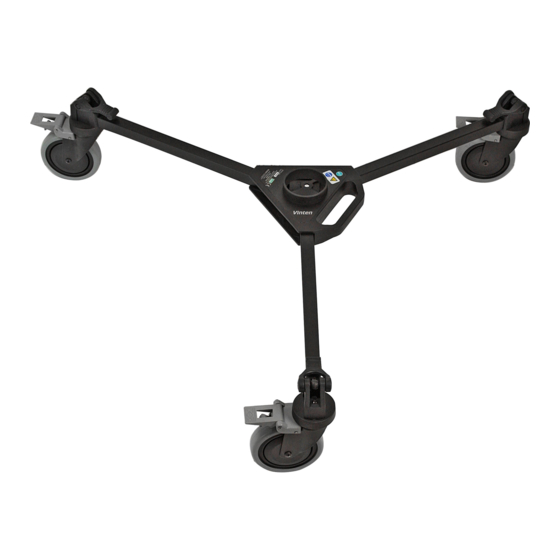

Contents Page Safety - read this first ............3 Further information. - Page 6 Typical Vision Dolly (Studio Version) Centre casting Fixed leg Foot support and strap Track knob Castor Cable guard Folding legs Brake lever...
- Page 7 (10) (13) (12) (11) Typical Vision Spreader Leg, outer (10) Leg, inner (11) Clamp knob (12) Foot support (13) Foot retaining strap...
-
Page 8: Introduction
Introduction Spreaders and Dollies are available for use with all Vinten Vision tripods. Floor spreaders are suitable for the full range of Vision single and two-stage tripods excluding the Vinten Baby-Legs tripod which has its own dedicated floor spreader. Lightweight folding ENG and EFP dollies are available in studio and OB versions. All have fast acting foot-operated wheel brakes and the studio versions are fitted with adjustable cable guards. -
Page 9: Operation
Operation Assembling the dolly Turn the dolly upside-down, depress the leg locking plungers (14) and pull out each folding leg until the plungers lock the legs in the open position. Set the dolly on the ground on its wheels and apply the wheel brakes. (14) Assembling the dolly... -
Page 10: Brakes
Brakes Each of the dolly wheels is fitted with a foot operated brake. The brakes are applied by pressing down on the lever situated above the wheel and released by pressing down on the centre ‘pop- up’ lever (8.1) which is raised when the brake is on. Cable guards - studio versions only The cable guards are height adjustable and should be set as required. -
Page 11: Dolly Movement - Eng Studio Version Only
Dolly movement - ENG studio version only The wheels on the ENG studio dolly can be locked in the straight-ahead position or set to castor freely. The castor/lock change over is effected by spring-loaded track lock pins on each wheel assembly. -
Page 12: Installing Floor Spreader
Installing floor spreader To instal a floor spreader to a tripod proceed as follows: Unfold legs of spreader and place flat on the ground. Ensure three clamp knobs (11) engaged. Lower tripod onto the spreader and locate the feet onto the three foot supports (12). Secure tripod onto spreader by engaging three foot retaining straps (13) to each foot of the... -
Page 13: Using Floor Spreader
Using floor spreader NOTE: Always use the spreader where possible as this increases rigidity of the tripod. Being flexible, the spreader compensates for uneven ground. It can be removed and a skid fitted. At the full extension of the spreader and with all legs fully retracted, the tripod can be used at its lowest operating height. -
Page 14: Servicing
Servicing General Vision products are robustly made to high engineering standards and little attention is required to maintain serviceability save regular cleaning. Attention to the following points will ensure a long and useful service life with minimum need for repair. Cleaning During indoor use, the only cleaning required should be a regular wipe over with a lint-free cloth. - Page 15 Align the wheel on the fixed leg so that it runs parallel to the leg. Using a suitable straight line on the studio floor, check that over a distance of 3.6 m (12 feet) the deviation does not exceed 5 cm (2 in.). Re-adjust the wheel until this is achieved. If it cannot be achieved, the wheels on the other two legs should be re-aligned.
-
Page 16: Parts List
Parts List The following lists include main assemblies, user-replaceable spare parts and optional accesso- ries. For further information regarding repair or spare parts, please contact Vinten Broadcast Ltd or your local distributor. For information on-line, visit our website at www.vinten.com.
