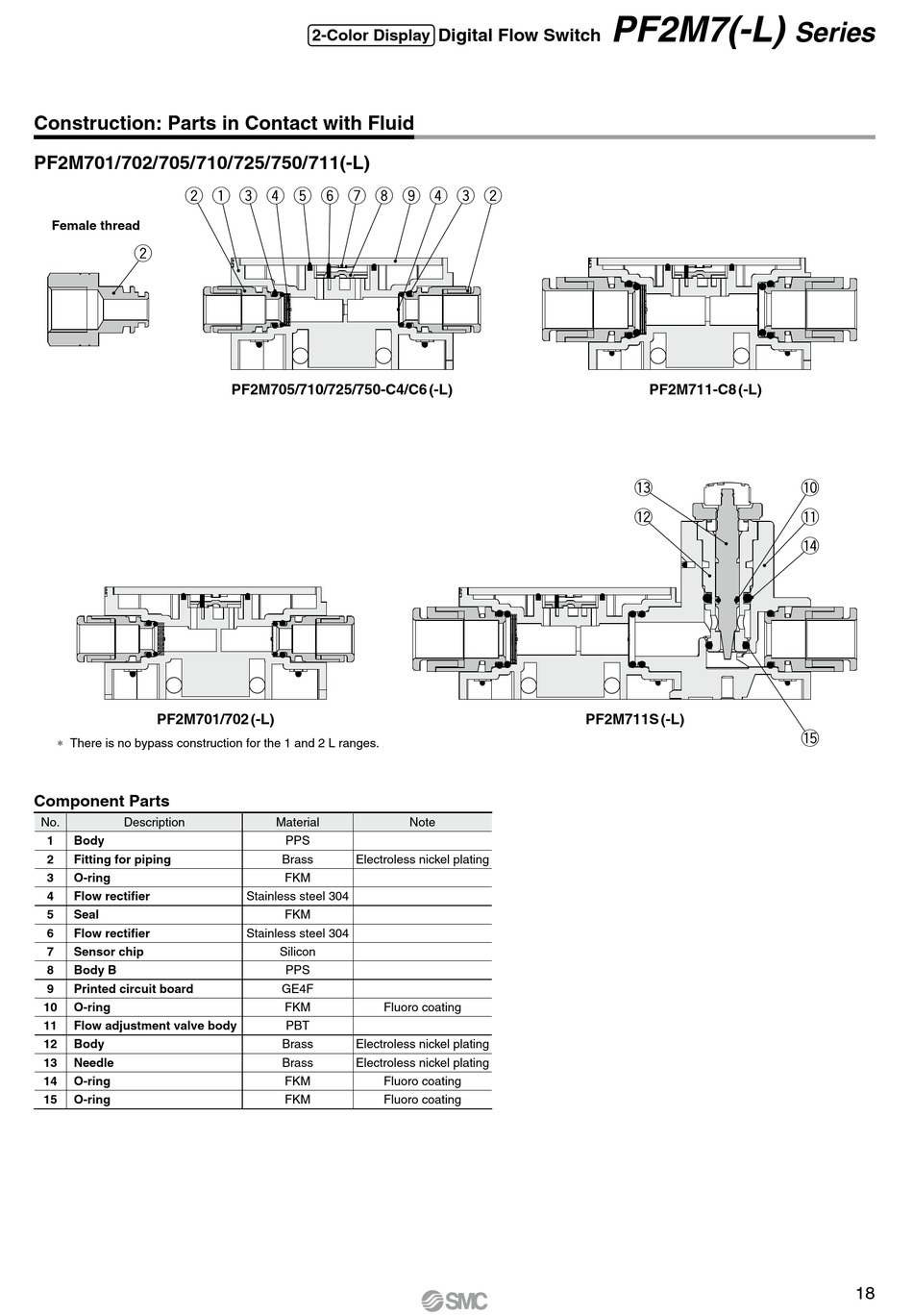

Construction: Parts in Contact with Fluid

PF2M701/702/705/710/725/750/711(-L)
w q e r t y u i o r
Female thread
w
PF2M701/702 (-L)
* There is no bypass construction for the 1 and 2 L ranges.
Component Parts
No. Description
1 Body
2 Fitting for piping
3 O-ring
4 Flow rectifier
5 Seal
6 Flow rectifier
7 Sensor chip
8 Body B
9 Printed circuit board
10 O-ring
11 Flow adjustment valve body
12 Body
13 Needle
14 O-ring
15 O-ring
2-Color Display
PF2M705/710/725/750-C4/C6 (-L)
Material
PPS
Brass Electroless nickel plating
FKM
Stainless steel 304
FKM
Stainless steel 304
Silicon
PPS
GE4F
FKM Fluoro coating
PBT
Brass Electroless nickel plating
Brass Electroless nickel plating
FKM Fluoro coating
FKM Fluoro coating
Digital Flow Switch
e w
Note
PF2M7(-L)
PF2M711-C8 (-L)
!3
!2
PF2M711S (-L)
Series
!0
!1
!4
!5
18
