Summary of Contents for Tenma 72-3515

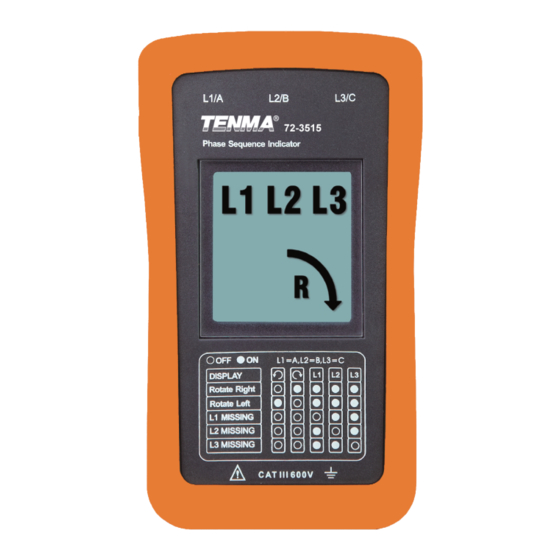

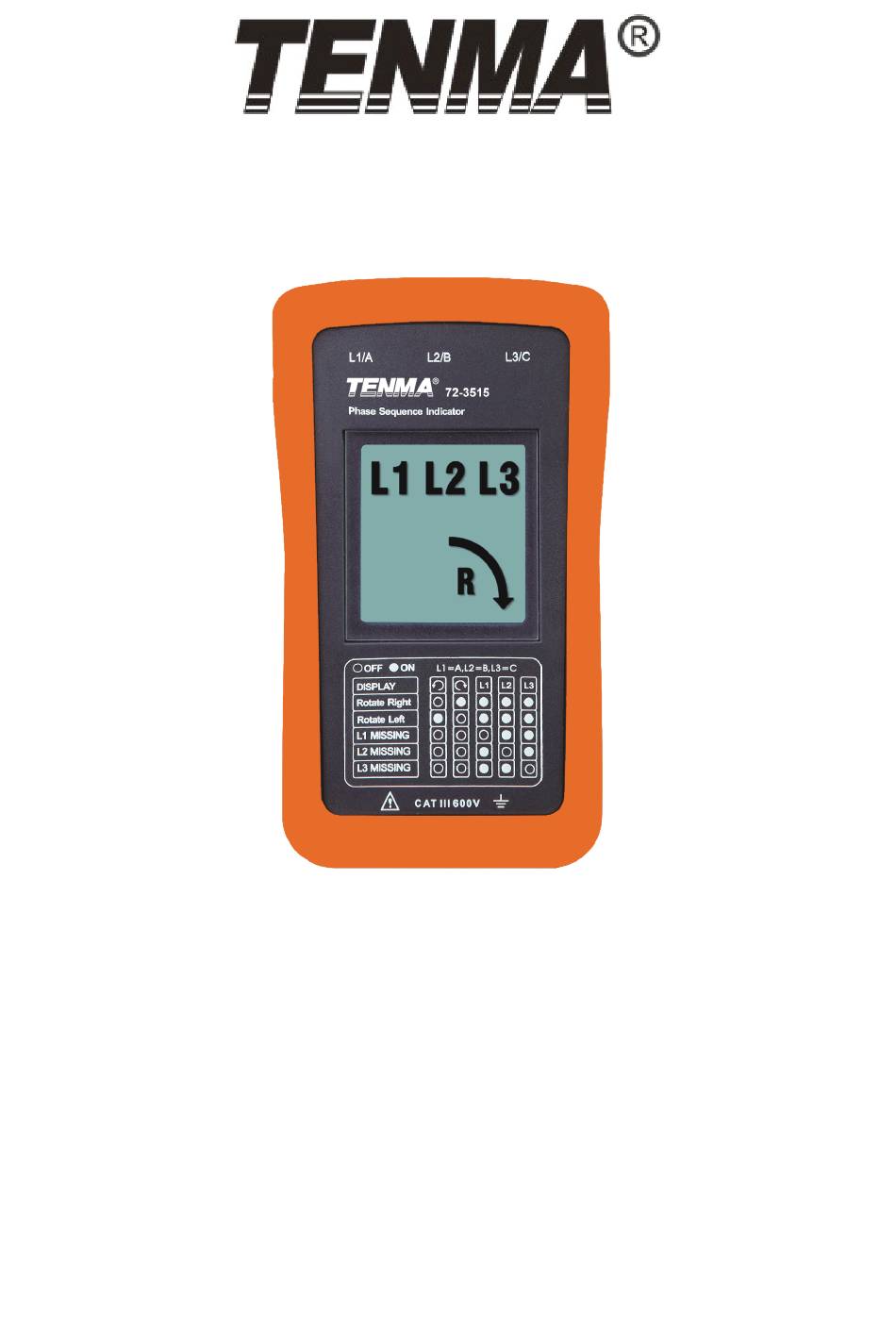

- Page 1 Phase Sequence Indicators Model: 72-3515...
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • When using electrical appliances basic safety precautions should always be followed. • Wear personal protective equipment to avoid electric shocks and other injuries. • Check whether the insulators of the test leads are damaged or have any exposed metal.
- Page 3 MEASUREMENT DIRECTION OF THE ROTATING MAGNETIC FIELD It is necessary to measure the direction of the rotating magnetic field in the following way: • Insert terminals L1, L2 and L3 of the test pen into the L1, L2 and L3 holes respectively.
- Page 4 CLEANING & MAINTENANCE • Refer servicing to qualified personnel. • Prior to cleaning, ensure all of the test leads have been removed. • Use a clean, soft, dry cloth to remove any dust. • Do not use any chemicals, abrasives or solvents that may damage the product. INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL &...
