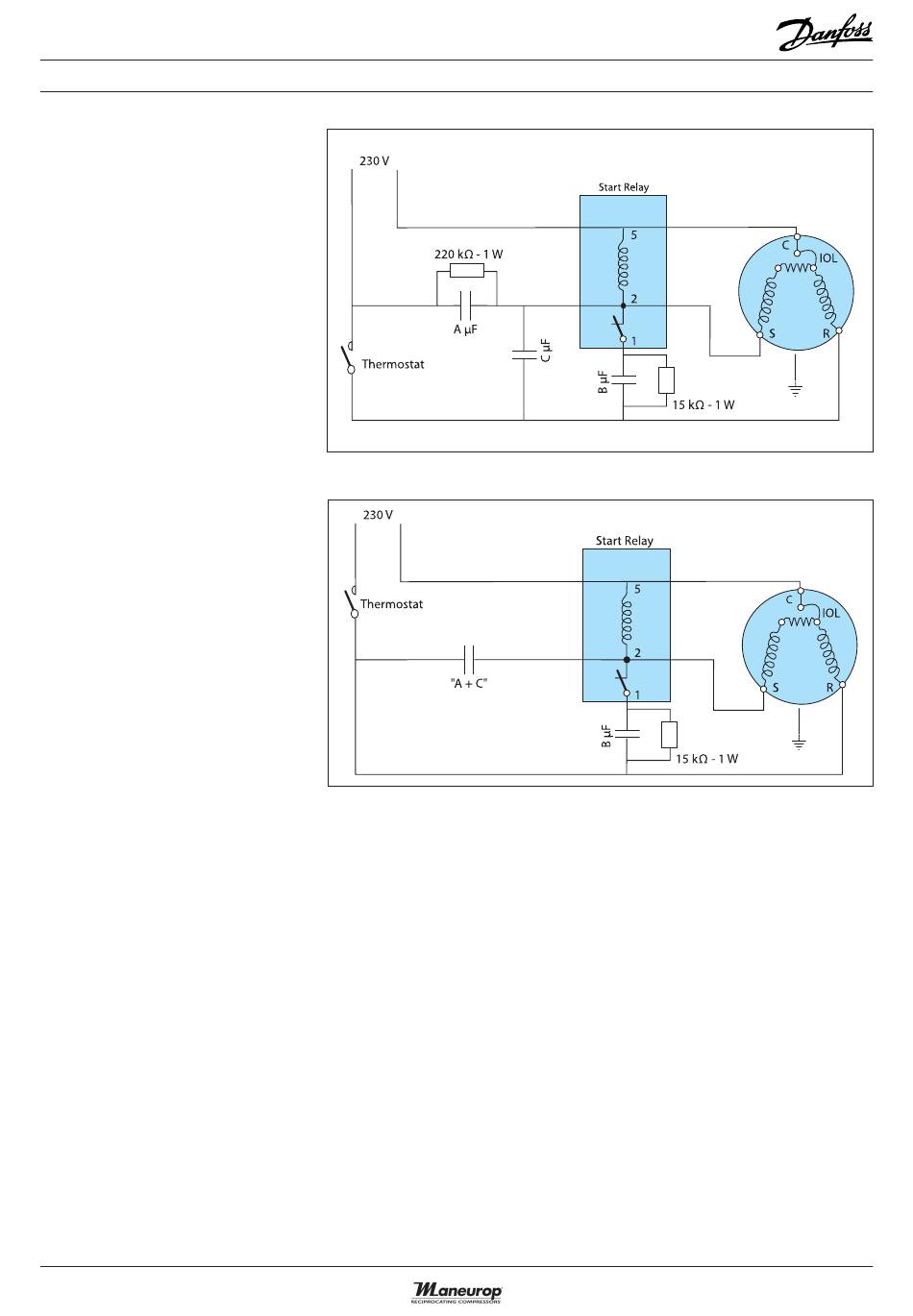

ELECTRICAL CONNECTIONS AND WIRING
Single phase
CSR wiring
with trickle circuit
IOL
Motor protector
A & C
Run capacitors
B
Start capacitor
C
Common
S
Start winding (auxiliary)
R
Run winding (main)
Single phase
CSR wiring without trickle
circuit
IOL
Motor protector
A + C
Run capacitors
B
Start capacitor
C
Common
S
Start winding (auxiliary)
R
Run winding (main)
Capacitors A and C are replaced by a single
capacitor of size A + C
12
