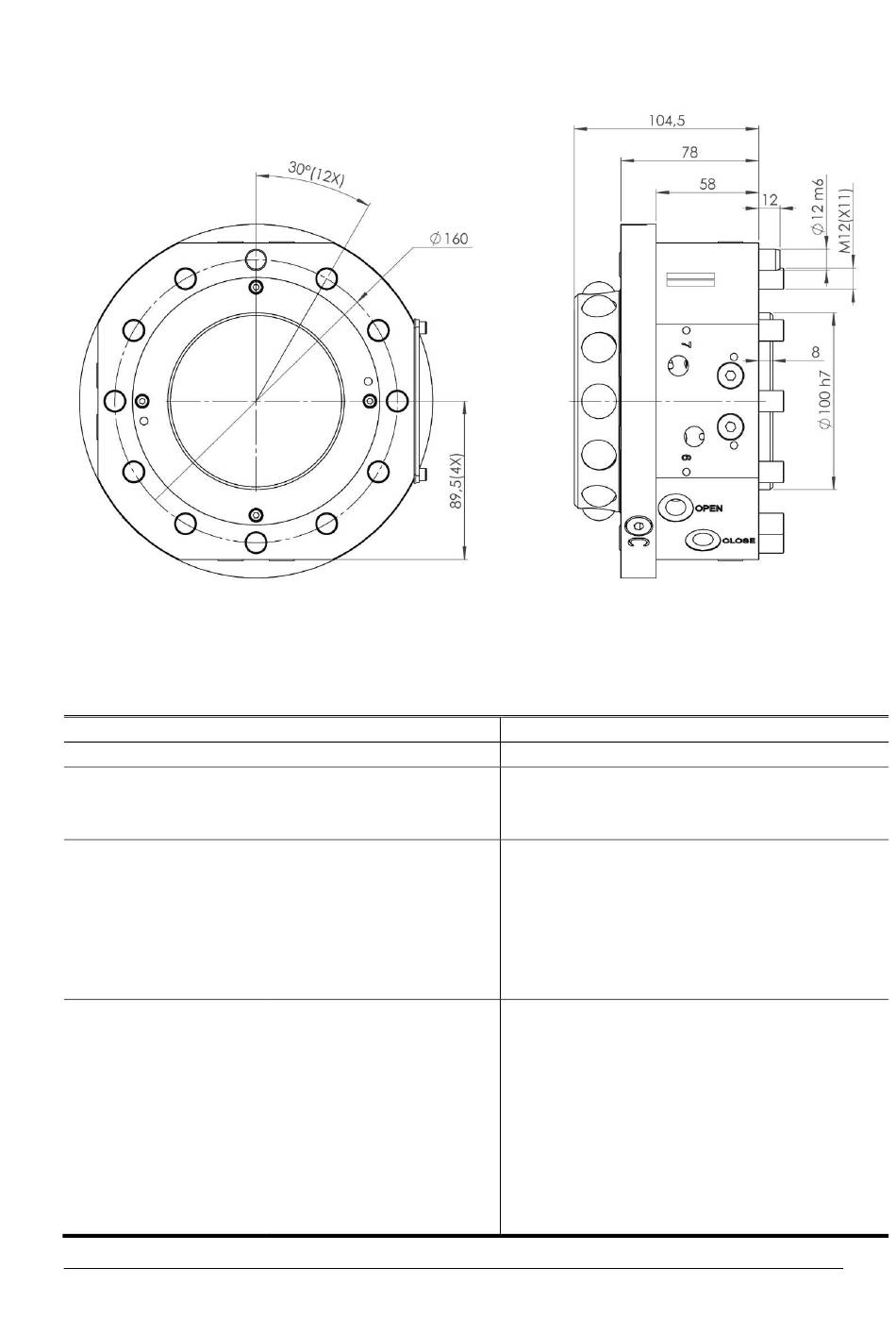

2.1.2 Tool changer TC350-8, Article: P0601

Tool changer TC350-8 transfers 8 pneumatic channels to the tool attachment. To be used
together with tool attachments P0606 and P0602.
Technical data
Working temperature
Bolt pattern
Maximum tool load
Weight and centre of gravity
P0601
P0601+P0606
P0601+P0602
Air ducts
M0604-1 ver. 2.3
Fz (static)
Mx/My (dynamic)
Mz (dynamic)
Weight
Mass centre X / Y / Z
Weight
Mass centre X / Y / Z
Weight
Mass centre X / Y / Z
Pneumatic diagram
Total number of ducts
Dedicated air ducts
Max air pressure
Air flow
Connections, robot side
Air quality
+10°C−+60°C
ISO9409-1-160-11-M12
±3 500 N
±3 500 Nm
±3 500 Nm
10.5 kg
-0.1 / -0.1 / 54.0 mm
15.5 kg
-0.5 / -0.5 / 69.4 mm
16.2 kg
0.0 / -0.1 / 70.7 mm
Pne0166-001A (section 2.1.8)
10
Open TC marked Open (6−10 bar)
Close TC marked Close (6−10 bar)
10 bar
1 600 l/min
8 x G 1/4"
2 x G 1/8" (Open, Close)
Oil-clean and waterless filtered air, with max
25µm particle content
