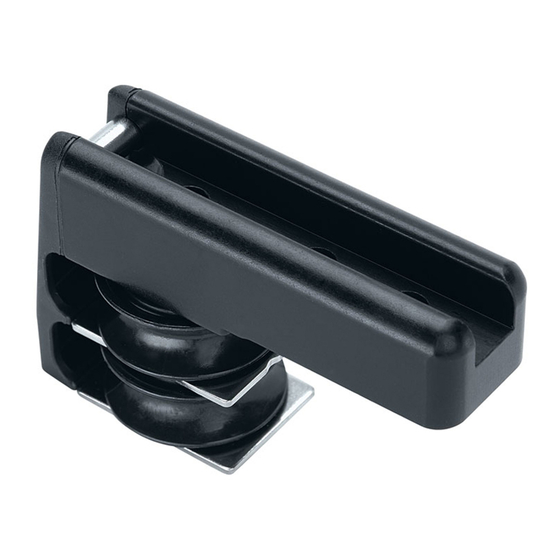

Harken E2750HB Instructions

USA – Tel: (+01) 262-691-3320 • Web: www.harken.com • Email: harken@harken.com
Italy – Tel: (+39) 031.3523511 • Web: www.harken.it • Email: techservice@harken.it
E2750HB – Fits R27HB and Midrange Track
Strictly follow all instructions to avoid an accident, damage to your vessel, personal injury
or death. See www.harken.com/manuals for additional safety information.
IMPORTANT: See Inspection and Maintenance at end of manual.
Sheave
Ø
Part
No. in
27 mm Midrange
E2750HB 1 /
9
16
32 mm Big Boat
E3250HB 2 /
1
4
Use for high beam traveler installations where control lines are led along cabintop to cleats or clutches.
Do not use with 1849 track risers or with other elevated systems. If traveler control line angles down too
much it will rub on the bottom aluminum plate.Traveler must be located so there is a flat area at each end
to allow room for bolt hole placement (see A below):
Part No. Track Size
E2750HB Midrange
E3250HB Big Boat
*US imperial equivalent size will not fit
Special Track Required–Track ends must be anodized. We recommend special-ordering Harken track
cut-to-length with end control mounting holes drilled.
Backing Plates–Order drilled backing plates from Harken to match control end or use large washers.
See "Replacement Parts" on reverse side.
I N S T R U C T I O N S
Double-Sheave End Controls (Sold as a Pair)
Length Width
mm in mm in
40 4 / 108 1 /
1
9
4 16
57 6 / 155 2 /
1 1
8 4
D
A

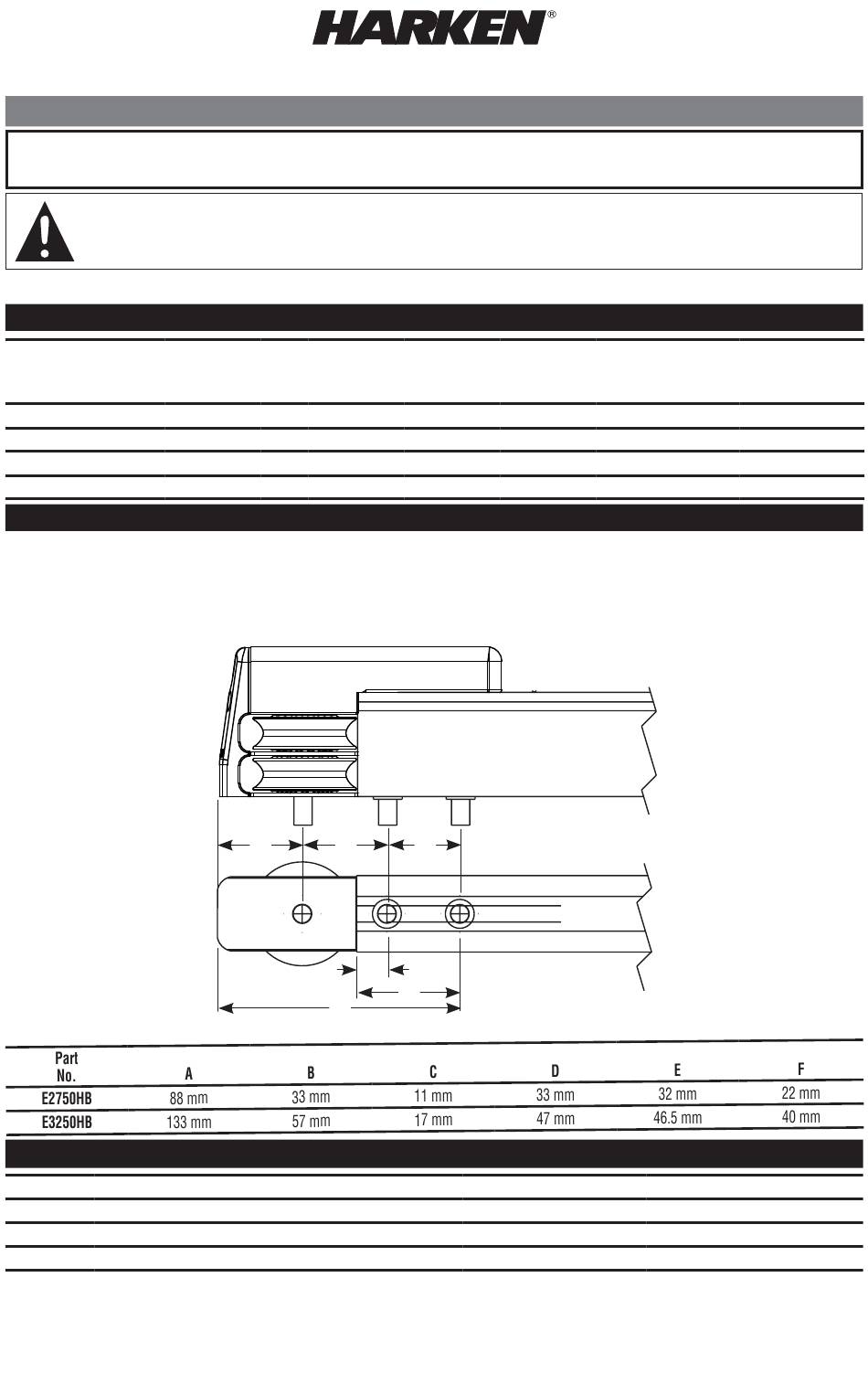

Traveler Location/Hole Spacing

High Beam Track Part No.
R27HB, 1618
R32HB, 3156
E3250HB – Fits R32HB and Big Boat Boat Track

Dimensions

Max line Height above
Ø
mm in mm
40 / 10
3
8
57 / 10
3
8
I M P O R T A N T
E F
Bottom View
C
B
Mounting Bolts (Not Included)
8 mm A4 (316) or A2 (18-8)*
10 mm A4 (316) or A2 (18-8)*
Maximum
track working load
in mm lb kg
1 25 600 272
1 25 700 318
Backing Plate (Optional Part No.
Breaking
load
lb kg Purchase
1200 544 3:1/4:1
1400 635 3:1/4:1
H-32316A
H-32557A
