Braeburn Premier Series Installer Manual

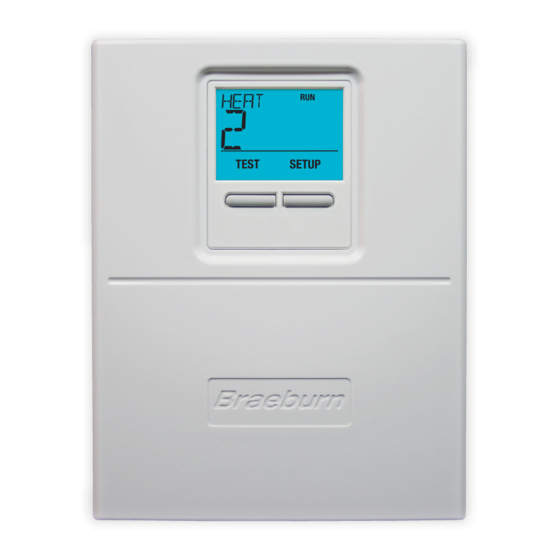

3-zone control panel, 1 heat/1 cool conventional systems
Hide thumbs Also See for Premier Series:

Advertisement

Quick Links

Download this manual
140311
3-Zone
Control Panel
1 Heat / 1 Cool
Conventional Systems
Store this manual for future reference.
Warning
Caution
Can cause electrical shock or equipment damage. Always turn off power to the heating/
air conditioning system prior to installing or adjusting the expandable zone panel. Wire the
entire panel before applying transformer power.
This panel is designed for professional installation, and is to be installed and configured as
described in this manual. Any other use is not recommended and will void the warranty.
Install disconnect and overload protection on circuits as required by code authorities having
jurisdiction for the installation.
P
S
REMIER
Read all of the instructions before proceeding
Voltage Hazard
ERIES
®
Installer Manual
140311-100-04

Advertisement

loading
Need help?

Need help?

Do you have a question about the Premier Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Braeburn Premier Series

Summary of Contents for Braeburn Premier Series

  • Page 1 ® 140311 Installer Manual 3-Zone Control Panel 1 Heat / 1 Cool Conventional Systems Store this manual for future reference. Warning Read all of the instructions before proceeding Caution Voltage Hazard Can cause electrical shock or equipment damage. Always turn off power to the heating/ air conditioning system prior to installing or adjusting the expandable zone panel.

  • Page 2: Table Of Contents

    Table of Contents 1 Specifications ........................2 2 Suitable Mounting Locations ....................3 3 Wiring ..........................4-7 4 Configuration ........................8 5 System Check-Out ......................10 6 Operation ..........................11 7 Error Conditions ........................13 8 Warranty .......................... 14 Figure 1 Specifications Storage temperature: Protection: Electronic self resetting current -40˚–167˚F (-40˚–75˚C) limiting for panel power and Operating temperature:...

  • Page 3: Suitable Mounting Locations

    Suitable Mounting Locations Mount the Zone Panel near the HVAC equipment. The panel can be mounted in any orientation on a wall, stud, roof truss, or the return-air plenum. For appearance, mount the panel level. Remove the panel cover and use the base as a template to drill mounting holes (see Figure 2). Attach the panel with appropriate screws.
  • Page 4 Wiring the Panel Always turn off power to the heating/air conditioning system prior to installing or adjusting the Zone Panel. Wire the entire panel before applying transformer power. Use the following general wiring instructions for all systems. Specific wiring will vary depending on the equipment and type of system (conventional or heat pump). NOTE: Up to 2 wires can be inserted into each terminal.
  • Page 5 ZONE PANEL WIRING TERMINALS Terminal Qty. Function Description PANEL INPUT 24 VAC Transformer Power 100 VA Maximum POWER INPUT 24 VAC Transformer Common DAMPERS OUTPUT 24 VAC Power Open Zone Damper Terminal COMM OUTPUT Zone Damper Common Terminal OUTPUT 24 VAC Power Close Zone Damper Terminal SUPPLY INPUT Optional Plenum Supply Air Sensor Terminal 1 (No Polarity)

  • Page 6: Wiring

    Damper Wiring Always turn off power to the heating/air conditioning system prior to installing or adjusting the zone panel. Wire the entire panel before applying transformer power. Use the following general wiring instructions for all systems. Specific wiring will vary depending on the equipment and type of system (conventional or heat pump).
  • Page 7 Plenum Optional Supply Air Sensor Wiring To provide high/low limit protection, install the optional supply air sensor in the supply air plenum at least 2-3 feet after the heat exchanger and coil. Make sure there are no zone dampers before the supply air sensor. Connect the supply air sensor to the zone panel as shown.

  • Page 8: Configuration

    Configuration Use the following instructions to configure the zone panel. To start configuration: 1. Press SETUP and hold for 3 seconds. 2. The panel backlight will turn on and the display will change. 3. Change setting if needed by pressing SELECT. 4.
  • Page 9 Configuration The configuration settings must be properly set in order for this zone panel to operate correctly. The Installer Settings will automatically adjust so that settings that do not apply to this installation will be skipped. All settings are shown below with comments. No.

  • Page 10: System Checkout

    System Checkout After the wiring and configuration is complete, built in automatic zone panel tests may be used to verify equipment, damper, and panel operation. To start the panel Test Mode: 1. Ensure all wiring is complete and power has been applied to the main and expansion panels 2.

  • Page 11: Operation

    Fan Stage(s) Test ON or OFF This test turns on all fan stages and commands all dampers to open. Press SELECT to test or NEXT to advance to the next test. Damper Control Test PO or PC This test powers all dampers open or closed. Press SELECT to test or NEXT to return to the first test.
  • Page 12 In addition to LED’s, the zone panel has a full function built-in backlit display panel that provides information on the current operations of the zone panel. When the zone panel is running in normal operation, the display is updated continuously to show the system operating parameters. The system will show the following status screens on the display.

  • Page 13: Error Conditions

    Error Conditions The zone panel continually monitors various components of the zone system and will display a message when the following monitored conditions are detected. High Plenum Temperature (PLENUM HI) Displayed when the Plenum Temperature is exceeded during equipment heating operation. The heating stage will be turned off and the fan will be turned on until the plenum temperature returns to the normal range.

  • Page 14: Warranty

    Montgomery, IL 60538 Store this manual for future reference. ® Braeburn Systems LLC 2215 Cornell Avenue • Montgomery, IL 60538 Technical Assistance: www.braeburnonline.com Call us toll-free: 866-268-5599 (U.S.) 630-844-1968 (Outside the U.S.) 140311-100-04 ©2019 Braeburn Systems LLC • All Rights Reserved.
