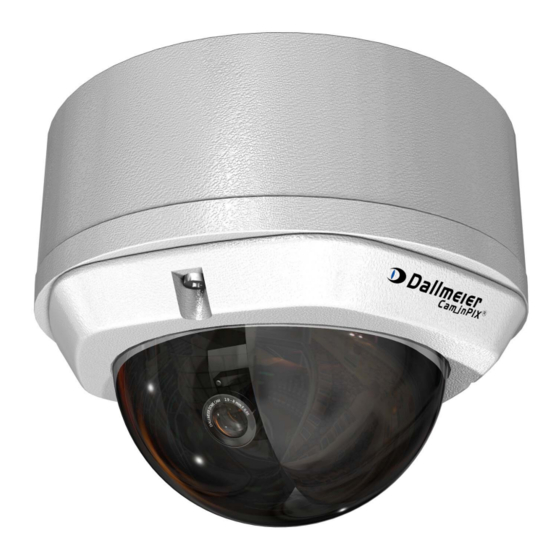

- Page 1 Installation and Configuration English Colour minidome (Day/Night) DDF3000AV(-DN) DDF3000AV(-DN) CasinoCam ® Rev. 3.0.3 / 080707...
- Page 2 Third-party trademarks are named for information purposes only. Dallmeier electronic respects the intellectual property of third parties and always attempts to ensure the complete identification of third- party trademarks and indication of the respective holder of rights. In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respective trademark is unprotected.
-
Page 3: Table Of Contents
8.3.1 Progressive Scan ..................27 8.3.2 Backlight ..................... 27 8.3.3 Digital Zoom ....................28 8.3.4 White Balance .................... 28 Exit Menu ....................29 Appendix ....................30 Menu structure .................... 30 Technical data ..................... 31 Technical drawings ..................32 Dallmeier electronic... -
Page 4: This Document
The warning word WARNING denotes a possible danger that may cause death or serious injury if it is not averted. CAUTION The warning word CAUTION denotes a possible danger that may cause minor injury if it is not averted. Dallmeier electronic... - Page 5 A NOTE offers information on principles, special features and efficient procedure as well as general recommendations. Expression Expressions in bold and italics generally indicate a control element on the device (switches or labels) or on its user interface (buttons, menu entries). Dallmeier electronic...
-
Page 6: Safety Instructions
Do not make any modifications to the unit (neither to the software nor the hardware) without consulting Dallmeier electronic. Improper modifications can cause malfunctions or damages. Dallmeier electronic accepts no liability for damages resulting from unauthorized or improper modifications to the unit. - Page 7 (pull out the power plug). Please contact the sales partner responsible for your area. Disposal Disconnect the unit from the power supply. Remove all connected units and system components. Return the unit to your respective sales partner. Dallmeier electronic...
-
Page 8: General Notes
Transportation and packaging Store the original packaging for transportation at a later date. Dallmeier electronic is not responsible for damage resulting from unprofessional/improper transportation. The goods should only be shipped in their original packaging. -
Page 9: Warranty
For detailled information please see the chapter Technical data. Warranty The terms and conditions valid at the signing of the contract apply. Certifications The following certifications were in effect at the time this document was produced: UVV-Kassen IP67 Dallmeier electronic... -
Page 10: Notes On Operating The Camera
The quality of the video picture depends on the used lens, the lighting and the monitor used to display the video picture. Automatic white balance depends on the lighting used and can cause color distortions in artificial light. Poor lighting can lead to faulty white balance. Dallmeier electronic... -
Page 11: Views And Connection Assignment
® DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam Views and connection assignment Views Camera module Camera support Fig. 5-1 Dome Cardan mounting Adapter ring Housing base plate Connection assignment Video Ground (black) + 12V (red) Fig. 5-2 Dallmeier electronic... -
Page 12: Installation
6. Carefully peel off the film. 7. Cut out the recess for the camera holder. Fig. 6-1 NOTE The diameter of the recess may be a maximum of 5 mm larger than the recess for the adapter ring. Dallmeier electronic... - Page 13 Danger of death from electric shock caused by lightning. Do not connect the power supply/video cable during a thunderstorm. 11. Place the camera holder on the adapter ring. Fig. 6-4 NOTE Ensure that the camera holder sealing rings are correctly positioned on the screws. Dallmeier electronic...
-
Page 14: Installation With Casing Floor
3. Position the film with respect to the subsequent camera position. 4. Adhere the film using a minimum of pressure. 5. Mark the holes for the securing screws. 6. Carefully peel off the film. 7. Drill the holes for the securing screws. Fig. 6-6 Dallmeier electronic... - Page 15 12. Secure the camera holder to the casing floor by attaching the belt. Fig. 6-9 13. First connect the video cable, then the power cable (see fig. 6-3). WARNING Danger of death from electric shock caused by lightning! Do not connect the power supply/video cable during a thunderstorm. Dallmeier electronic...
- Page 16 15. Screw the camera holder to the casing floor. Fig. 6-11 IMPORTANT Possible camera damage caused by the ingress of water (IP67 compliance). Tighten the screws as much as possible without using force (max. torque 1.8 Nm). Dallmeier electronic...
-
Page 17: Setting Up And Adjustment
Do not use any force 2. Align the camera horizontally. 3. Align the camera vertically. Horizontal Vertical Fig. 6-13 Fig. 6-14 4. Set the focal distance (A) and focus (B). Secure rings (A) and (B) using screws (C) after adjustment. Fig. 6-15 Dallmeier electronic... -
Page 18: Closing The Housing
Tighten the screws as much as possible without using force (max. torque 1.8 Nm). CAUTION Danger of injury from the camera falling down. Before initial startup, make sure that the dome and the housing base plate are securely mounted. Dallmeier electronic... -
Page 19: Preparing To Configure
UTC Remote Box (or recorder or PView). NOTE Refer to the separate operator’s manuals for the devices or software used. UTC Remote Box Direct Fig. 7-1 Camera UTC Remote Box CVBS monitor Via recorder Fig. 7-2 Camera Recorder Monitor Remote Box Dallmeier electronic... -
Page 20: Dms Recorder
FG-11 frame grabber card. PView Fig. 7-4 Camera Recorder PView Station Monitor NOTE This method requires a recorder with software version 5.3.1 or higher and a built-in FG-11 frame grabber card, using PView version 5.6.0 or higher. Dallmeier electronic... -
Page 21: Configuration
Sharpness Saturation WB Offset The following presets are available: Universal Scenes full of contrast with strong backlights.The relevant details are in the highlights. The maximum dynamic range of the camera is used. Large differences in brightness are adjusted. Dallmeier electronic... - Page 22 This Preset has been developed to meet the special requirements at the roulette wheel ensuring optimal identification of the numbers and colors of the wheel. Slot Machine This preset has been developed to meet the special requirements for slot machines ensuring optimal identification of the symbols. Dallmeier electronic...
- Page 23 Select Sharpness to adjust the image sharpness. Saturation Select Saturation to adjust the color saturation. WB Offset The WB Offset function can be used when the automatic white balance produces an unsatisfactory representation of “monochrome“ scenarios. This function modifies the metered color temperature. Dallmeier electronic...
-
Page 24: Basic Functions
Synchronization Choose between Internal 1, Internal 2, AC-Linelock ---------------- NTSC ----------------- and Flickerfree Linelock for Sync. Previous Page V-Level > Sync: < Internal 1 > V-Phase NOTE The Sync = AC-Linelock function is not supported by the DDF3000AV(-DN). Dallmeier electronic... -
Page 25: Horizontal Flip
With B/W w/Burst the menu entries are displayed in color in Camera ID. CCTV System PAL.. the black-and-white mode and can thus be easier read. Horizontal Flip Lens Select.. > Color < On > Day / Night Setup.. Dallmeier electronic... -
Page 26: Day / Night Setup
With Night Mode, you can select whether the camera will take color or black-and-white images at night. Night: max. Gain Night: max. Gain allows you to fix the limit for the maximum amplitude of the video signal in night mode. Dallmeier electronic... -
Page 27: Image Functions
The “interlace effect” is thus prevented, whereas rapid movements are displayed in a more jerky manner. NOTE To record camera images with maximum resolution the Dallmeier recorder should be operated in full picture mode and the camera should be set to Progressive Scan = On. 8.3.2 Backlight... -
Page 28: Digital Zoom
With light and therefore color temperature modifications, no new measurement for white balance is carried out. The WB Offset function can be used when the automatic white balance produces an unsatisfactory color representation of "monochrome“ scenarios. This function modifies the metered color temperature. Dallmeier electronic... -
Page 29: Exit Menu
Load Factory Settings To return the configuration to its default settings, select the ------------- Exit Menu -------------- Yes option next to Load Factory Settings and press the Previous Page. Enter button. Last Changes Reject. > Load Factory Settings 3000 Version Dallmeier electronic... -
Page 30: Appendix
Lens Select.. Color Day / Night Setup.. -------- Image Functions --------- Previous Page. > Progressive Scan Backlight Digital Zoom On.. White Balance ATW.. ------------- Exit Menu -------------- Previous Page. > Last Changes Reject. Load Factory Settings 3000 Version Dallmeier electronic... -
Page 31: Technical Data
Max. 2 W Mechanical adjusting Tri-axial gimbal adjustment Dimensions Approx. Ø 143 mm x H 113 mm Weight Approx. 1150 g Temperature -10°C to 50°C, 0° to 35°C recommended Approvals/Certifications CE, FCC, UL, ACA, UVV-Kassen, CB IP rating IP67 Dallmeier electronic... -
Page 32: Technical Drawings
® DDF3000AV(-DN) / DDF3000AV(-DN) CasinoCam Technical drawings Fig. 9-1 Fig. 9-2 Unit: mm Dallmeier electronic... - Page 33 Approximation of the Laws of the Member States relating to Electromagnetic Compatibility 89/336/ EEC and the Council Directive relating to Low Voltage 73/23/EEC and 2006/95/EEC. The following company is responsible for this declaration: Dallmeier electronic GmbH & Co.KG Cranachweg 1 D 93051 Regensburg The measurements were carried out in accredited laboratories.
