3.2 Switch Functions

3.3 Programming
Options
Throughout programming mode, the first three locations on the left of the display
represent the memory address which can range from 00 to 208 (Alpha characters are
not used). The last location (farthest right) represents the contents of the memory
address. The first address displayed is shown below:
The Function of each switch in program mode is shown below:
No function in this mode
Address entry
{
keys are 0 to 9
Data entry keys
are 0 to 9 and A
to F

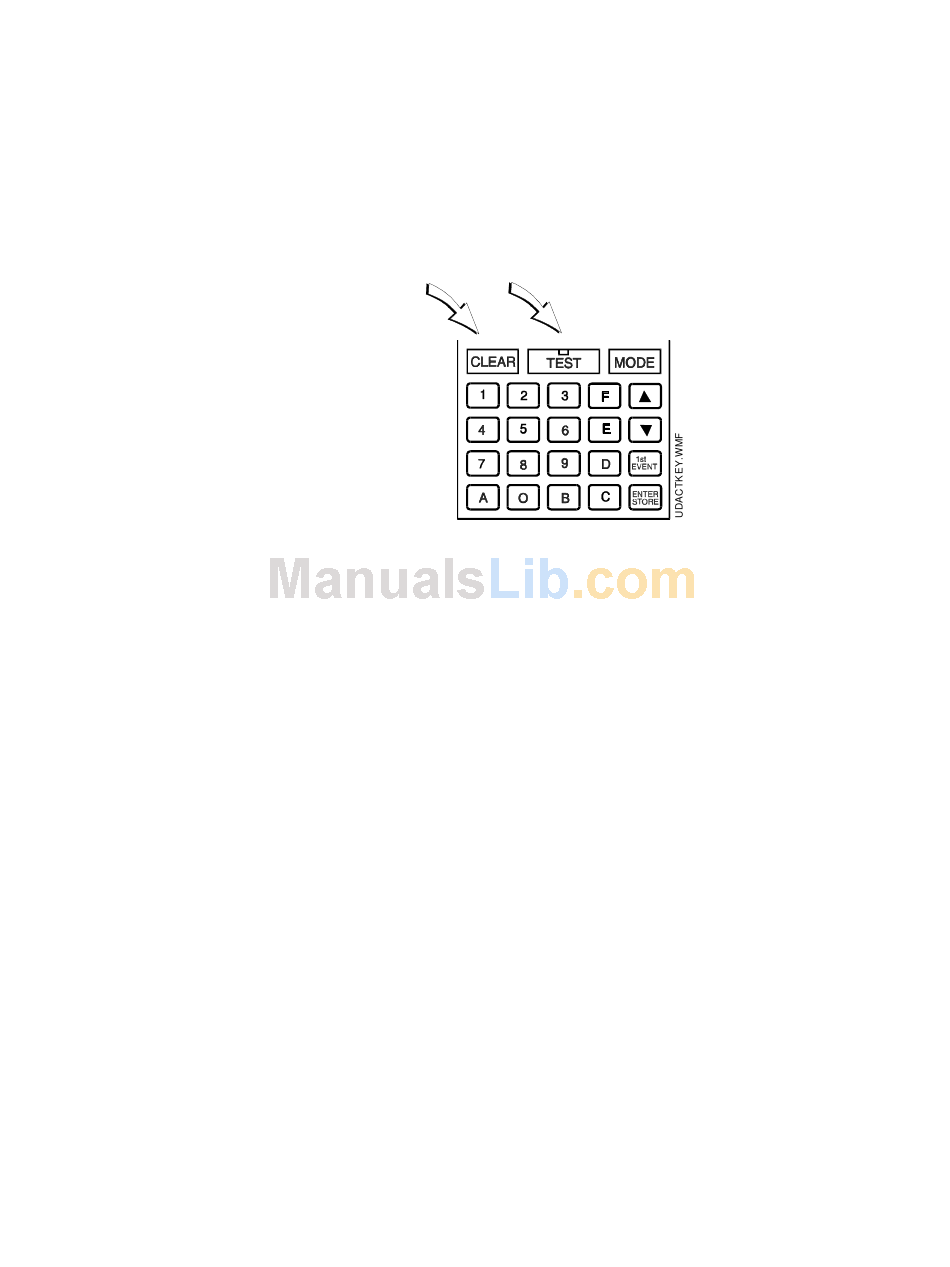

Figure 3-1: ADT-UDACT Keypad

Primary phone number. (00-15)
The first sixteen addresses, 00-15, are factory set to 'F' (from 00_F to 15_F).
Programming is typically done as follows: If your phone # is 484-7161, type 4,
the display will read 00_4, press [ENTER/STORE] to save the entry to memory and
increment to the next address 01_F.
Enter the remaining numbers in their respective addresses as shown below:
4 8 4 7 1
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15.
Valid entries for both the primary and secondary phone numbers are 0 - F with the
numeric digits as dialed numbers and hexadecimal digits (A-F) representing the
following functions:
A= * on a Touchtone phone keypad
B= # on a Touchtone phone keypad
C= look for secondary dial tone for up to 2 seconds (then, dial anyway)
D= 3-second pause
E= 5-second pause
F= end of phone number (Note: F must be entered)
Document 50934 Rev B
00_F
(address)(data)
6 1 F F F F
5/15/00 PN 50934:B
- Select operating mode
- Increment memory address
- Decrement memory address
- Once = First memory address
Twice = type any address
- Save data, go to next address
F F F F F
