Elite Screens Yard Master Manual Series How To Re-Tension The Roller

Hide thumbs Also See for Yard Master Manual Series:

For technical support or further assistance, call 877-511-1211 x604

Tools

Required:

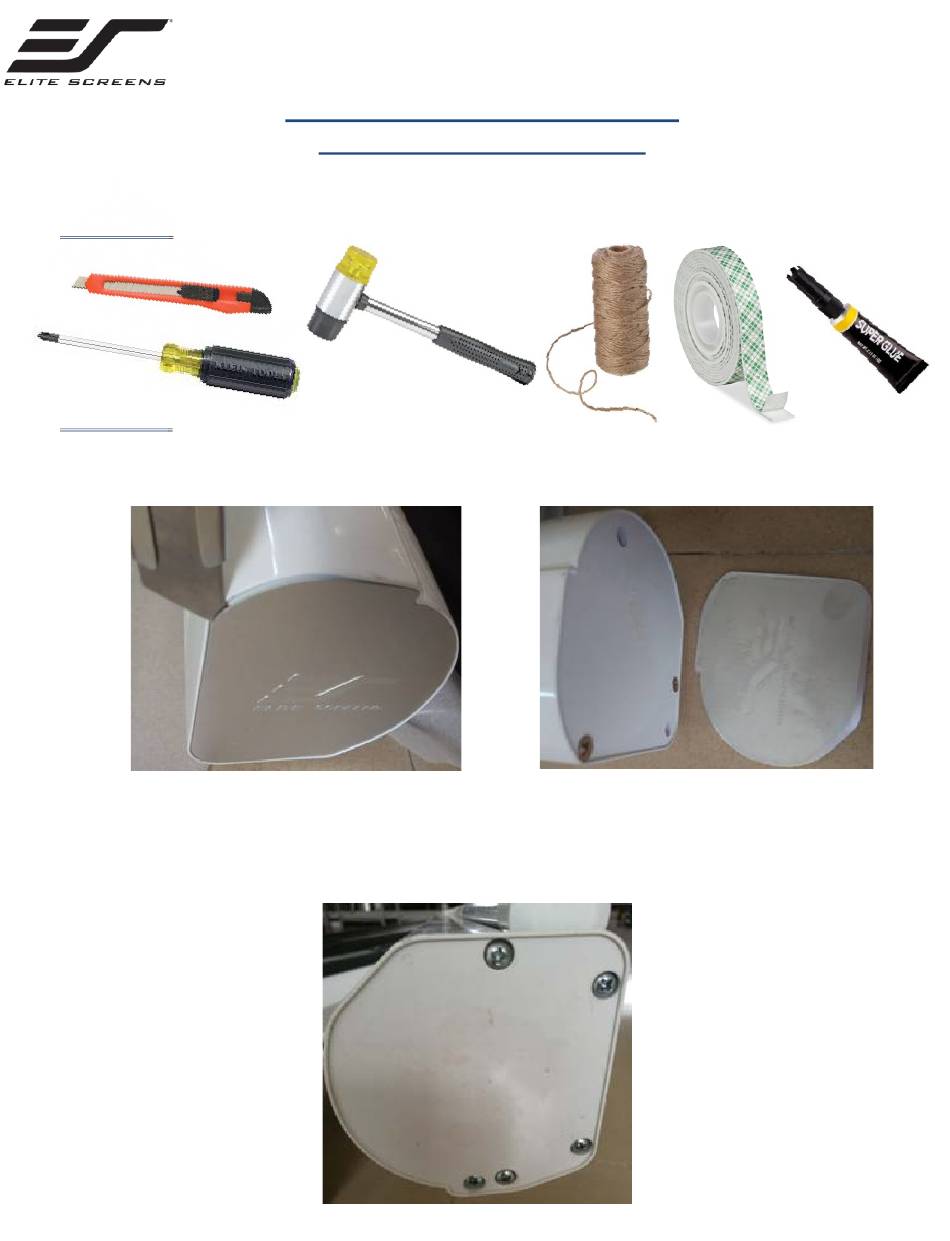

1 Small Blade, 1 Phillips screwdriver, 1 Mallet, Thin Rope or Twine, Double Sided Tape or Glue

Repair

method:

Carefully remove the aluminum face plate from the left side end cap when facing the front of the

Insert the small blade behind the face plate in one corner to separate it from the end cap, then peel the rest

off with your hands. Be careful not to excessively bend the face plate.

Utilize the Phillips screwdriver to remove the screws from the left side end cap. Remove the end cap.

Note: After loosening the screws and removing the end cap, the roller may spin due to the tension that may

be remaining within the roller. If the end cap spins with this remaining tension, it can cause an injury to your

hand. Please handle the end cap and roller with care.

Rev. 03/15/17

How to Re-Tension the Roller

for Yard Master Manual Series

screen.

www.elitescreens.com

Table of Contents

Need help?

Do you have a question about the Yard Master Manual Series and is the answer not in the manual?

Page 1 How to Re-Tension the Roller for Yard Master Manual Series For technical support or further assistance, call 877-511-1211 x604 Tools Required: 1 Small Blade, 1 Phillips screwdriver, 1 Mallet, Thin Rope or Twine, Double Sided Tape or Glue Repair method: Carefully remove the aluminum face plate from the left side end cap when facing the front of the screen.
Page 2 Bring out the roller about 2 inches by tapping the right end of the roller using a mallet. Tap here with mallet. Right Side End Cap Left Side End Cap Place the end cap back on the left side of the roller without pushing the roller back into the housing. While holding the roller with one hand, rotate the end cap counter clockwise approximately 16 times.
Page 3 1. Note: If reusing the same aluminum face place, you may need to utilize double sided tape or glue to attach. For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com Rev.
