Elite Screens Yard Master Series User Manual

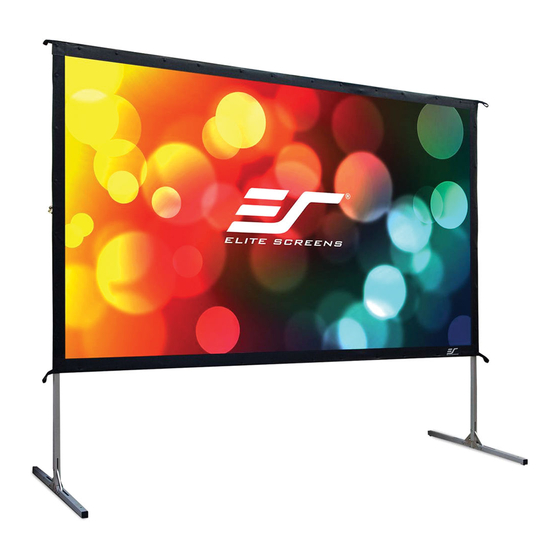

Outdoor movie screen

Hide thumbs Also See for Yard Master Series:

Yard Master Series

What's in the Box?

A. Screen material x 1

D. Ring-Stake x 4

G. M6*40

hexagonal screw

1. Assemble the frame by connecting the letters on the ends of the tubes together as shown in the

diagram below. For example, A to A, B to B etc.

2. A and J are attached and secured with the provided Hexagonal Screws (G)

Rev041115-JA

Outdoor Movie Screen

User's Guide

B. Steel Tube x 12 14

E. Guy-rope x 4

x 2

H. Carrying bag x 1

C. Curved Stake x 4

F. M6*40 hex nut x 2

I. Screen material bag x 1

www.elitescreens.com/yardmaster

Table of Contents

Need help?

Do you have a question about the Yard Master Series and is the answer not in the manual?

Page 1 Yard Master Series Outdoor Movie Screen User’s Guide What’s in the Box? B. Steel Tube x 12 14 A. Screen material x 1 C. Curved Stake x 4 D. Ring-Stake x 4 E. Guy-rope x 4 F. M6*40 hex nut x 2 G.
Page 2 Take an example for 120" with 14pcs steel tube: Screen Material Assembly 1. Lay the assembled frame on the floor and take caution not to scratch the frame and/or floor surface. Note: The silver securing pegs on each end of the tube should be facing the floor. 2.
Page 3 2. Always be cautious of strong windy conditions. We don’t recommend using over 20mph. 3. A soft terry cloth with mild soap and water may be used to clean the screen surface. For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com Rev041115-JA www.elitescreens.com/yardmaster...
