Westin 46-20055 Instructions

AUTOMOTIVE PRODUCTS, INC.
ITEM QUANTITY
1
2
3
4
5
6
7
8
9
10
1. Remove contents from box, verify if all parts listed are present and free from damage. Carefully read and understand all instruc-
tions before attempting installation. Anti-seize lubricant must be used on all stainless steel fasteners to prevent thread galling.
2. Remove the fasteners attaching the fairlead to the winch tray.
3. Slip the Tray Side Mounting Bracket between fairlead and the winch tray. Re-attach the fairlead using the fairlead manufactur-
er's hardware. Adjust the fairlead and Tray Side Mounting Bracket as necessary then torque the fairlead hardware per the fair-
lead manufacturer's instructions.
9/20/13 P.N.: 75-3035-Rev A
INSTRUCTIONS—INSTRUCCIONES—CONSIGNES
1
1
2
2
2
4
2
2
2
4
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
ECO #: W13-0076
APP PART # 46-20055

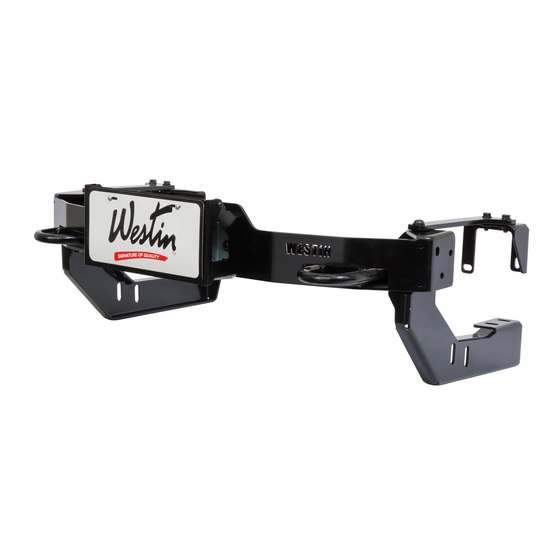

FLIP-UP WINCH TRAY LICENSE RELOCATOR
DESCRIPTION
TRAY SIDE MOUNTING BRACKET
LICENSE SIDE MOUNTING BRACKET
NYLON SPACER
M6 BUTTON HEAD BOLT (STAINLESS)
M6 NYLOCK NUT (STAINLESS)
M6 FLAT WASHER (STAINLESS)
M5 PHIL PAN SCREW (STAINLESS)
M5 HEX NUT (STAINLESS)
M5 LOCK WASHER (STAINLESS)
M5 FLAT WASHER (STAINLESS)
Thank You for choosing Westin products
For Additional installation assistance please call
PG-1
Customer service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
10MM WRENCH
8MM WRENCH
16MM WRENCH
ALLEN KEY (INCLUDED)
PHILLIPS SCREWDRIVER
