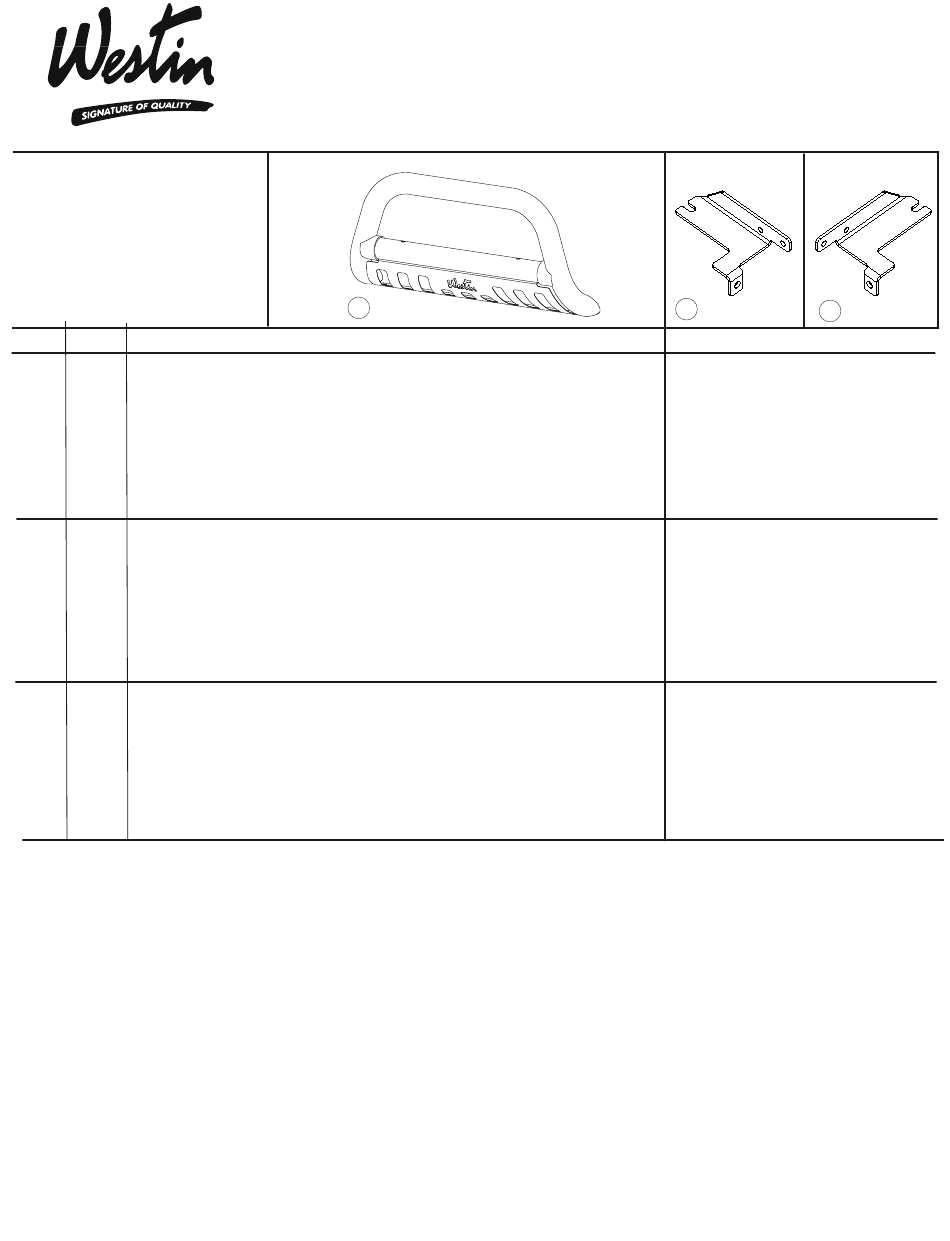

AUTOMOTIVE PRODUCTS, INC.
BULL BAR ASSEMBLY
ENSAMBLE DE PARRILLA
DELANTERA CON TIRÓN
LA BULL BAR
32-1660
32-1665
ITEM
QTY
1
1
BULL BAR ASSEMBLY
2,3
2
BRACKET, PASSENGER (2) AND DRIVER (3)
4
4
RUBBER BUMPER
5
2
PLASTIC PLUG
6
4
3/8-16 X 1.25" HEX HEAD BOLT
7
8
3/8" FLAT WASHER
8
4
3/8" LOCK WASHER
9
4
3/8-16 HEX NUT
1
1
ENSAMBLE DE PARRILLA DELANTERA CON TIRÓN
2,3
2
SOPORTE, ACOMPAÑANTE
4
4
PARACHOQUES DE HULE
5
2
TAPONES DE PLÁSTICO
6
4
PERNOS CON CABEZA HEXAGONAL DE 3/8-16 X 1,25"
7
8
ARANDELAS PLANAS DE 3/8"
8
4
ARANDELAS DE PRESIÓN DE 3/8"
9
4
TUERCAS HEXAGONALES DE 3/8-16
1
1
LA BULL BAR
2,3
2
SUPPORT,
4
4
PARE-CHOCS CAOUTCHOUC
5
2
BOUCHONS DE PLASTIQUE
6
4
BOULONS A TETE HEXAGONALE 3/8-16 X 1,25 PO
7
8
RONDELLES PLATES 3/8 PO
8
4
RONDELLES A FREIN 3/8 PO
9
4
ÉCROUS HEXAGONAUX 3/8-16
Remove the contents from box and check for damage. Verify all parts are present. Read instructions
STEP 1.
completely before beginning. NOTE: Westin advises the installer to use a thread lubricant on all of the
stainless steel fasteners.
NOTE: It may be necessary to remove/relocate front license plate and license plate bracket. It is not
STEP 2.
required, but strongly recommended. If local/state laws requires a license plate, license plate relocation
kit 32-0055 is available.
Determine passenger and driver brackets and install as shown. SEE FIGURE 2. NOTE: Tow hooks must be
STEP 3.
removed to complete installation. Keep fasteners for reinstallation.
Attach Bull Bar to brackets using 3/8" fasteners as shown. Make sure mount tabs on hoop are outside
STEP 4.
brackets. Leave loose.
Attach Bull Bar to mount brackets using 3/8" stainless steel fasteners. Level and adjust Bull Bar as desired
STEP 5.
and tighten all fasteners. Recommended torque values are 17 Ft. Lbs. for 3/8" stainless steel fasteners
tow hook fasteners to 60 FT.LBS.
LIGHT INSTALLATION: Insert threaded stud on base of the light through hole in cross tube. Using a ratchet, extension
INSTRUCTIONS-INSTRUCCIONES-CONSIGNES
APPLICATION: 2005-08 DODGE DAKOTA
APLICACIÓN: DODGE DAKOTA, MOD. 2005-08
APPLICATION: DODGE DAKOTA 2005-08
1
CONTENTS - CONTENIDO - CONTENU
(2)
PASSAGER (2) ET CONDUCTEUR (3)
Y EL CONDUCTOR
(3)
2
TOOLS - HERRAMIENTA - OUTILS
9/16" SOCKET
9/16" WRENCH
18MM SOCKET
19MM SOCKET
RATCHET
SOCKET EXTENSION
TORQUE WRENCH
DADO DE 9/16"
LLAVE DE TUERCAS DE 9/16"
DADO DE 18MM
DADO DE 19MM
MANERAL
EXTENSIÓN PARA DADO
LLAVE DE TORQUE
DOUILLE 9/16 PO
CLE 9/16 PO
DOUILLE 18MM
DOUILLE 19MM
CLIQUET
RALLONGE DE DOUILLE
CLE DE COUPLE
WO:
75-0499 REVISION A 3/20/08
