Sensor Mounting, Mounting Adapter - MICRO-EPSILON confocalDT 2421 Quick Manual

System Design, Connection Options
General Rules
Do not
- any contamination of the connector, e.g., dust
- apply any mechanical stress to the optical fiber
- curve the cable to a significant extent

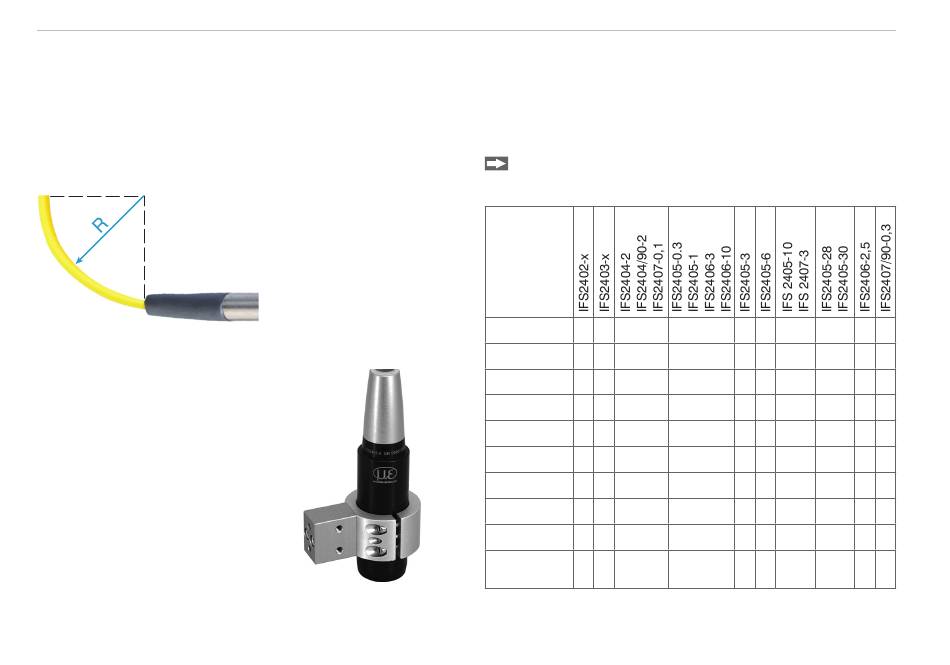

Never bend the sensor cable more tightly than the per-
mitted bending radius.
IFS2405 series sensor clam-
ped in an MA2405-x mounting
adapter
confocalDT 2421 / 2422
If the cable is immova-
bly routed:
R = 30 mm or more
If the cable is movably
routed:
R = 40 mm or more

Sensor Mounting, Mounting Adapter

IFS240x optical sensors operate in the μm range.
i
Ensure careful handling during installation and
operation!
Install the IFS240x sensors using a mounting adap-
ter or on the mounting surface/mounting thread.
Sensor
Mounting
adapter
MA2400-27
•
MA2402-4
•
MA2403
•
MA2404-12
MA2405-34
MA2405-40
MA2405-54
MA2405-62
MA2406-20
Mounting
thread
•
•
•
•
•
•
Page 6
•
